PC0106

Compatible Device:

Steam Deck(Not For OLED)

Transparent Back Plate for Steam Deck

Name: Transparent Back Plate for Steam Deck
Brand: JSAUX
SKU: A01PC010601012
Price: 12.99 USD
Availability: InStock

$12.99 USD

$29.99 USD

Best Deals: SAVE

Style(not for OLED):

Crystal

Crystal $12.99 USD

Brown $12.99 USD

Purple $12.99 USD

Red $12.99 USD

Blue $12.99 USD

Green $12.99 USD

Variant

Quantity:

Pay with Ease

Transparent Back Plate for Steam Deck

$12.99 USD

$29.99 USD

Description

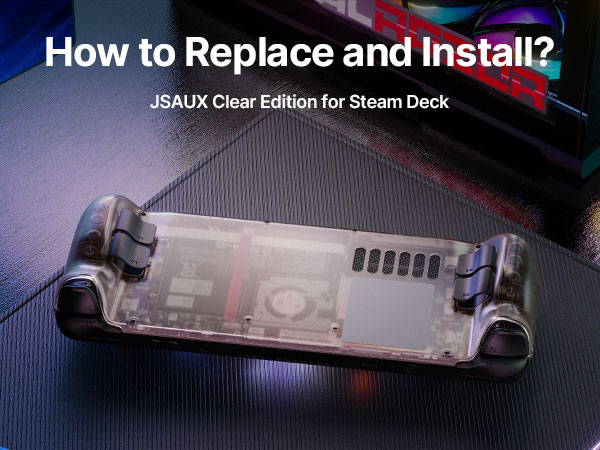

See Your Inner Steam Deck: This transparent back cover will let you see all the hardware of your Deck. Thanks to the transparent plate you’ll be able to identify every little component in your handheld device while sporting a unique design.

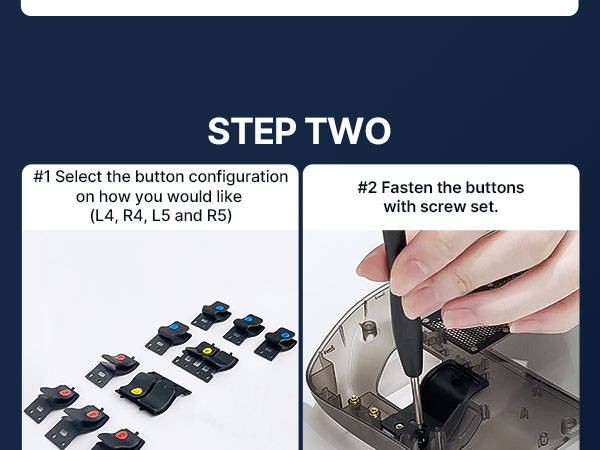

Customize Your Steam Deck: The transparent shell also comes bundled with three sets of rear buttons (each one with a different height) that will let DIY enthusiasts make their Decks even more unique.
Enjoy a New Rear-Button Design: Each set features different heights (original, high, and low), suited for all players. Each button has a more durable, anti-slip, premium texture.
Keep Your Deck Cool: The back case comes equipped with thermal grease as well as a heat-dissipation aluminum sheet that enhances heat-dissipation performance.
All-in-One Set: Included in this set are 1x transparent back plate, 1 x screwdriver, 1 x disassembler stick, 1 x thermal grease (already attached to the back plate), 4 x original edition buttons, 4 x lower buttons, 4 x higher buttons, 16 x button screws, 10 x back plate screws, 10 x anti-static finger gloves.

📢Notes:

Steam Deck OLED Compatibility: The transparent back plate PC0106 is incompatible with OLED
The transparent shell case isn’t recommended for users without experience in DIY and/or disassembling electronic devices. We strongly recommend carefully reviewing the iFixit videos if you choose to install it or seek the services of a professional. Any equipment malfunction caused by the disassembly of the Deck, but not by this product, shall be borne by the user.
Because aluminum has good thermal conductivity, it will be hotter than other areas when touched. Be careful not to touch it to avoid being burned when you use your Deck.
Before use, please use a heat gun or hair dryer to slightly soften the thermal grease to ensure that it fits perfectly on the Back Plate. In case of accidental contact with the skin, please wipe it off immediately, then rinse with water.

SPEC

Material

ABS+PC + Aluminum alloy

Dimensions

Back Plate: 150mm (L) x 117mm (W) x 32mm (H)

Thermal grease: 54mm (L) x 47mm (W) x 2mm (H)

Weight

About 126g

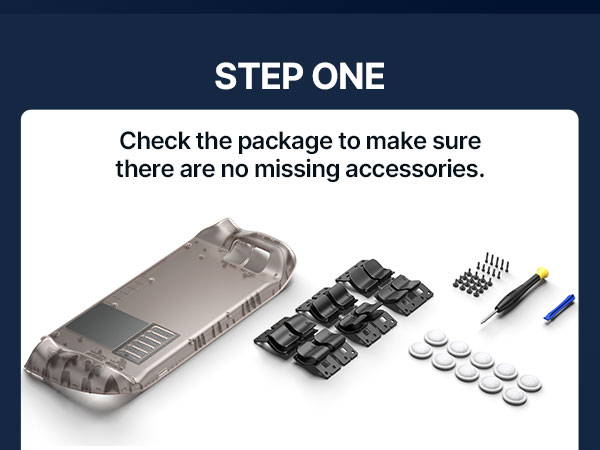

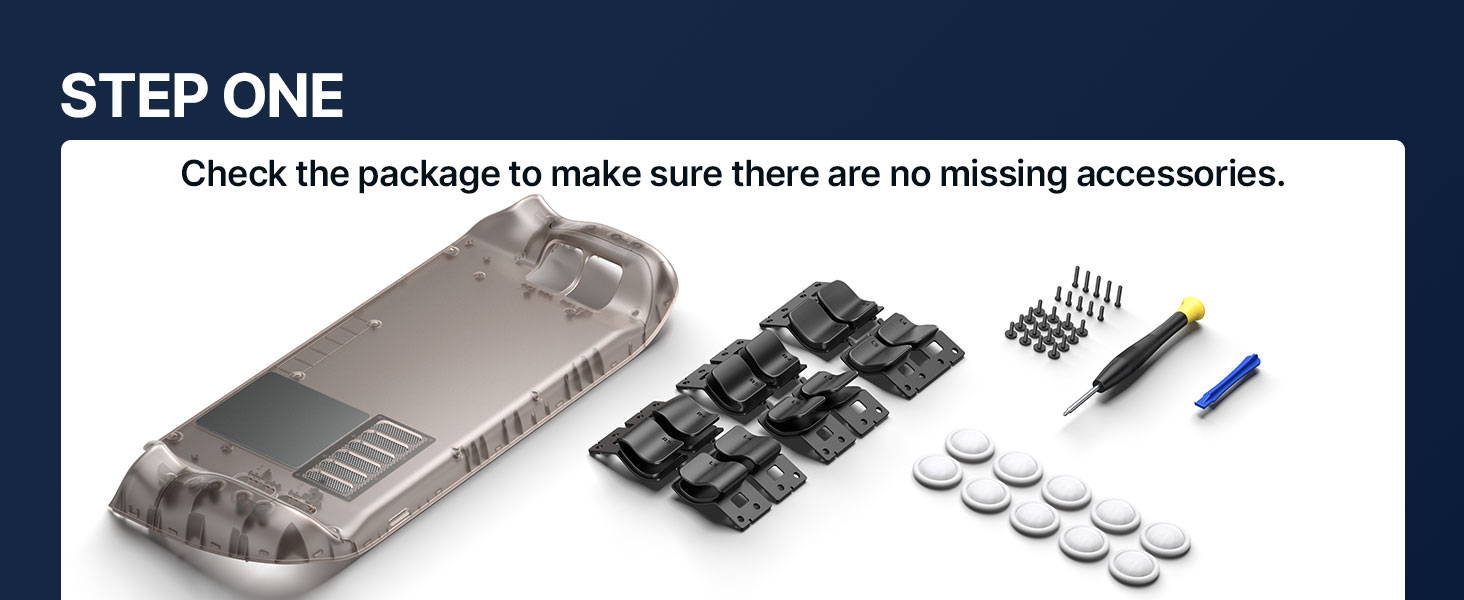

List

x1 Transparent back plate
x1 Screwdriver
x1 Disassembler stick
x1 Thermal grease (already attached to the back plate)
x4 Original edition buttons
x4 Lower buttons
x4 Higher buttons
x16 Button screws
x10 Back plate screws
x10 Anti-static finger gloves.

SHIPPING & RETURN

Please read our shipping tips carefully before you place your order

All orders above $25 are free shipping.
Orders under $24.99 will be charged $5.5 as shipping cost.

Please Note:

JSAUX provides fast and efficient delivery services for global customers.（But unable to deliver products at military addresses (APO/FPO) and some islands.)
The current processing time for all orders takes 2-4 days(Orders are not processed on weekends).
Order delivery time will be at 7-12 business days(pre-sale items excluded).
International duties & taxes may apply and are not calculated at checkout.
Shipping time for pre-sale products is subject to the instructions on the product page.

Due to the requirements of logistics service providers:

In order to get your order ready as soon as possible and avoid shipping issues, make sure to introduce an accurate postal address including your exact house number and any other info that may be necessary for the delivery company.
For mainland China & Taiwan China: For mainland China customers, please use Tmall to place your order. Hong Kong, Macao, please include your name, ID number and shipping address in traditional Chinese.
⚠️Brazil: Due to local tax policies, customers need to pay customs duties themselves. JSAUX is not responsible for any customs and taxes applied to your order.
Due to logistical reasons, we are temporarily not providing order services to the following countries and regions: Afghanistan, Albania, Algeria, Andorra, Angola, Anguilla, Argentina, Armenia, Aruba, Azerbaijan, Bahrain, Bangladesh, Barbados, Belarus, Bermuda, Bhutan, Bosnia & Herzegovina,British Virgin Islands, Brunei, Burkina Faso, Burundi,Bolivia, Cambodia, Cameroon, Cayman Islands, Central African Republic, China, Christmas Island, Costa Rica, Djibouti, Congo - Brazzaville, Congo - Kinshasa, Egypt, El Salvador, Ecuador,Falkland Islands, Faroe Islands,French Polynesia, Gabon, Gambia, Georgia, Ghana, Gibraltar, Greenland, Guadeloupe, Guatemala, Guernsey, Guinea, Honduras,Iceland, Indonesia, Jamaica, Jordan,Jersey, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Lebanon, Lesotho, Liberia, Liechtenstein, Maldives, Martinique, Moldova, Monaco,Mongolia, Montenegro, Myanmar (Burma), Namibia, Nauru, New Caledonia, Nicaragua, Niger, Nigeria, Norfolk Island, North Macedonia, Norway,Oman, Pakistan, Paraguay, Rwanda, San Marino, Senegal, Serbia, Seychelles, Solomon Islands, South Sudan, Sri Lanka, Sudan, Tajikistan, Togo, Tonga, Tunisia, Turkmenistan, Tuvalu, Uganda, Ukraine, Uruguay, India, Uzbekistan, Vanuatu, Vatican City, Some regions in the United States(including Puerto Rico, Guam, US Virgin Islands, Northern Mariana Islands, American Samoa, and military bases like APO, FPO, and DPO).

15-Days RETURN:

Our return & exchange policy will be active for 15 days from the very same day you receive your product(s) at home. For more information, please visit our Shipping Policy section.

JSAUX Transparent Shell Series for Steam Deck

Model

PC0106 RGB

PC0106 Vents

PC0106

PC0108

PC0108+PC0106 RGB

PC0108+PC0106 Vents

Price

$39.99

$29.99

$27.99

$35.99

$59.99

$49.99

Back Plate

✔

✘

✔

Front Cover

✘

✔

Vents of Back Plate

✔

✘

✔

RGB Light

✔

✘

✔

✘

Color

Crystal

Crystal/ Purple/ Brown

Crystal/ Purple/ Brown/ Red/ Blue/ Green

Crystal/ Purple/ Brown

Crystal

Crystal/ Purple/ Brown

OLED Compatibility

Not compatible

FAQ

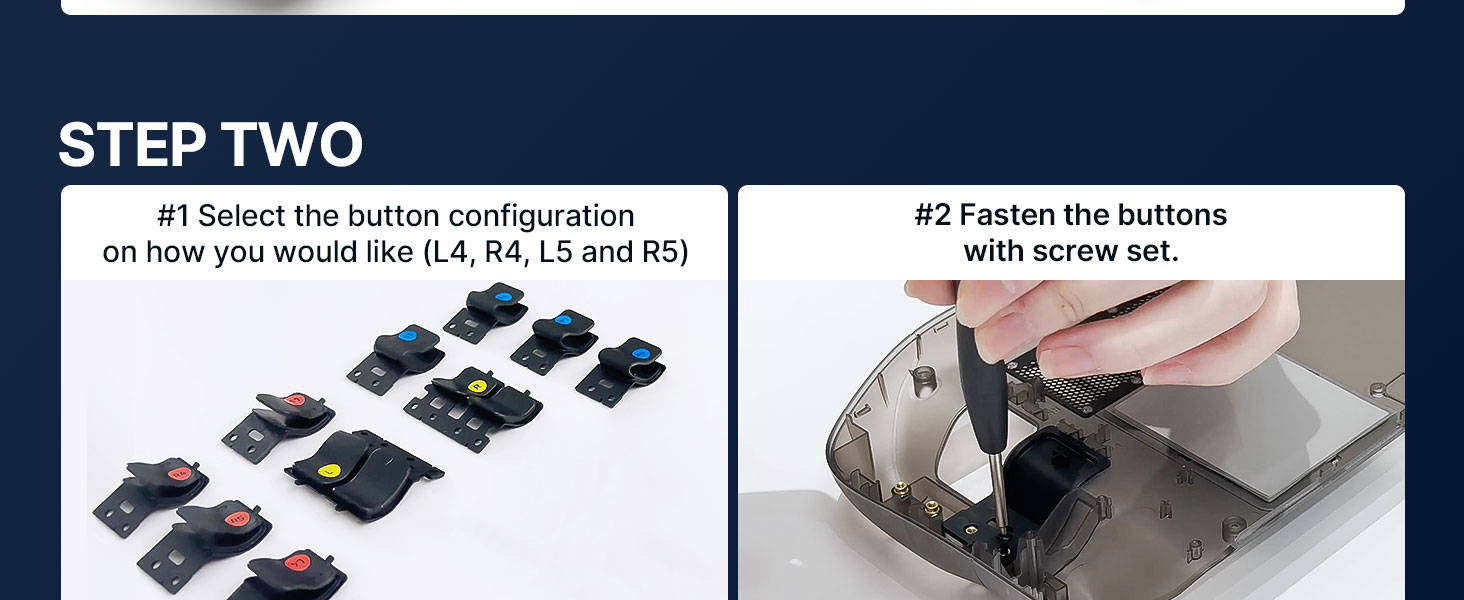

Q1. What should I do if the back buttons (R4, R5, L4, L5) can't be pressed after I replace the back plate?

A1.After installing the button, first, check whether there is a gap between the button and the buckle and whether it can be pressed and rebounded normally.
If there is a gap that can be pressed and rebounded normally, continue to install.
If there are no gaps, proceed as follows:
1) Loosen the button screw for 2-3 turns. This method can make the space inside the button bigger, but it will make the whole button feel loose.
2) Add a gasket of M3 or M4 size to the yellow nut (the size of the gasket is about 5-6mm in outer diameter, 3.2mm in inner diameter, and 0.5mm in thickness. You can also trim a gasket with harder cardboard according to this size) , this method increases the pressing space at the other end by raising the nut.
3) Slightly loosen the back cover screws near the stuck button for 2-3 turns. For example, if R4 will be stuck, loosen the three screws closest to R4. This method can increase the pressing space, please be careful not to screw it too loosely.

2. Check if there is a gap at the top, because the gap is caused by deformation, and deformation may also cause the button to get stuck.
If there is no gap, continue with the installation. If there is a gap, remove the thermal grease and reinstall it.

Q2. After changing to a back plate, can it still be fit with a protective case?

A2. The transparent case is the same size as the original back cover. If you choose a lower or medium button , it is compatible with all JSAUX protective cases.

Q3. Is it normal for the thermal grease to get hot?

A3. That is normal, the thermal grease conducts heat from the Steam Deck circuit board. In addition, because the aluminum itself has good thermal conductivity, it will be hotter than other areas when touched, so be careful not to touch it to avoid being burned.
If you still feel too hot, you can also remove the inner thermal grease.

Q4. Will the thermal grease affect the original heat dissipation of the Steam Deck?

A4. It will not affect the original heat dissipation of the Steam Deck. Because the air inlet and outlet of the steam deck heat dissipation are separate heat dissipation pipes, and the thermal grease will not block the heat dissipation channels.

Q5.I replaced it with a jsaux's button (medium or higher), can it fit in the valve carrying case/JSAUX case?

A5. It cannot be put into the original valve carrying case and JSAUX-BG0102 carrying case, but it can be put into JSAUX shoulder bag-BG0105 or carrying case-BG0106.

Q6. Why is the color of the product I received a little different from the picture?

A6. Actual colors may vary. This is due to computer monitors & screens displaying colors differently and everyone can see these colors differently.

Q7. Is it compatible with Steam Deck OLED?

A7. The transparent back plate PC0106 is incompatible with OLED.

REVIEW

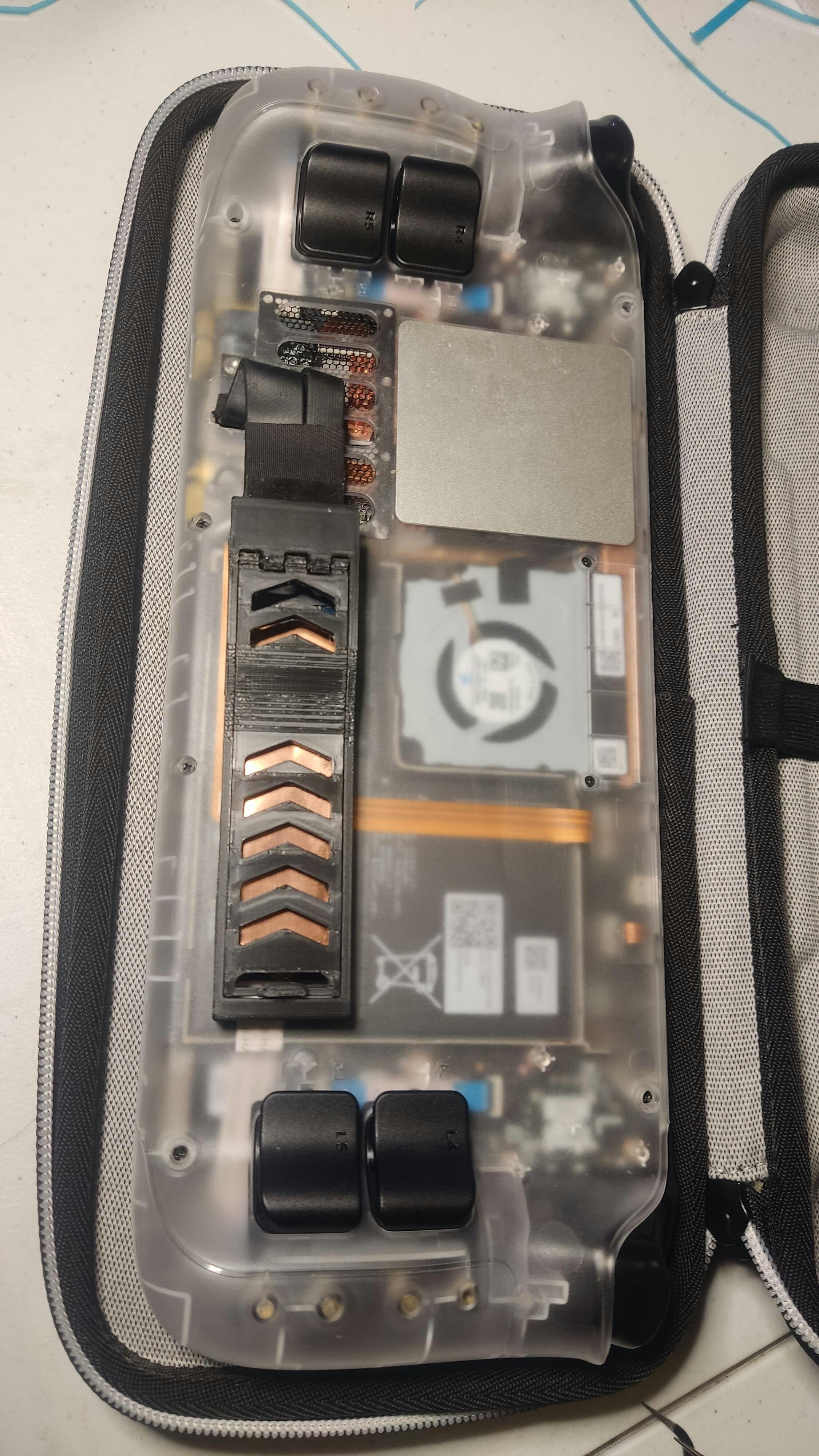

Easy installation and looks great, aluminium block does get very hot to touch however.

Perfect!

Fast delivery to Czech. Only 2 weeks.
Everything fit well. Red colour looks perfect.
Design of screwdriver is good but the size can be bigger or different, but it is small thing. I finally used my own.
The the temperature of Deck was reduced by 5 degrees. It is nice.

Itill waiting since january

I bouth 3 articles in january and i still waiting 2 months later... I Will change my review when the articles arrive

Es una gran carcasa pero….

Es una gran carcasa pero tiene dos inconvenientes.
El primero es el destornillador, no sirve porque cambiaron los tornillos con la Oled.
El segundo es que queda un poquito separada de la consola, el ajuste no es 100% efectivo.

Looks good, but have issues

The backplate looks very good, but the supplied screwdriver is not suitable neither for the button screws, not for the backplate screws. You need to have or buy a siutable screwdriver.
The buttons are not marked with colors, so you need to be careful to choose the correct button.
