5-in-1ドッキングステーション
1. The HB0602 can also be purchased via the blue “Buy With Prime” button. An Amazon Prime membership is required.
2. Key Differences
HB0602S: HDMI 2.1 (up to 4K@120Hz), compatible with ROG Ally X
HB0602: HDMI 2.0 (up to 4K@60Hz), not compatible with ROG Ally X
FEATURES
- Upgraded 5-in-1 Docking Station
- 4K@120Hz HDMI Output (Upgraded)
- Full-Speed 100W Charging
- Reliable Wired Ethernet
- Wide Compatibility: Steam Deck/OLED, ROG Ally/ X, Legion Go/2/S
SHIPPING


Product Comparison
5-in-1 Docking Station HB0602S
7-in-1 RGB Cooling Docking Station HB0705
6-in-1 Multifunctional Docking Station HB0609
6-in-1 Docking Station HB0603S
M.2 6-in-1 Docking Station HB0604
7-in-1 Docking Station HB0702S
11-in-1 Docking Station HB1101
120*77.5*36mm
124g
138*145*143mm
360g
125*85*49mm
179g
140*77.5*36mm
141g
138*86*30mm
290g
152*77.5*36mm
168g
120*61.8*23.5mm
130g
TPE+Aluminum
Aluminum Alloy + ABS & PC
ABS+PC+TPE
TPE+Aluminum
TPE+Aluminum
TPE+Aluminum
Aluminum alloy+ABS&PC
USB-C *1
USB-C *1
USB-C *1
USB-C *1
USB-C *1
USB-C *1
USB-C *1
HDMI 2.1*1
4K@120Hz
HDMI 2.1 *1
4K@120Hz/ 1080P@240Hz
Gaming Features: VRR, ALLM, HDR, QFT
HDMI 2.1 *1
4K@120Hz/ 1080P@240Hz
HDMI 2.1 *1
4K@120Hz
HDMI 2.0 *1
4K@60Hz/ 2K@120Hz
HDMI 2.0 *1
4K@60Hz/ 2K@120Hz
HDMI 2.1 *1
4K@120Hz
✘
✘
✘
✘
✘
Display Port *1
4K@60Hz/ 2K@120Hz
Display Port *1
4K@120Hz
USB-A 2.0 *2
USB-A 3.0 *2
USB-C 3.0*1
RGB-powered USB-C*1
USB-A 3.0 *2
USB-C 3.0*1
USB-A 3.0 *3
USB-A 3.2 *3
USB-A 3.2 *3
USB-A 3.0 *2
USB-A 2.0 *1
Ethernet RJ45 100Mbps
Gigabit Ethernet (1000Mbps)
Gigabit Ethernet (1000Mbps)
Gigabit Ethernet (1000Mbps)
Gigabit Ethernet (1000Mbps)
Gigabit Ethernet (1000Mbps)
Gigabit Ethernet (1000Mbps)
✘
✘
✘
✘
✔
✘
✘
✘
✘
✘
✘
✘
✘
✔
✘
✘
✘
✘
✘
✘
✔
✘
✘
✘
✘
✘
✘
✔
Steam Deck/OLED
ROG Ally/X
Legion Go/Go 2/Go S
Steam Deck/OLED
ROG Ally/X
Legion Go/S/2
Steam Deck/OLED
ROG Ally/X
ROG Xbox Ally/X
Legion Go/S/2
Steam Deck/OLED
ROG Ally/X
Legion Go/Go 2/Go S
Steam Deck/OLED
ROG Ally
Legion Go
Steam Deck/OLED
ROG Ally/X
Legion Go/Go 2/Go S
Steam Deck/OLED
ROG Ally
Legion Go
Switch
FEATURES
説明文
- Steam Deck および ROG Ally 用の 5 in 1 ドッキング ステーション: 4K@60Hz HDMI 出力、100 Mbps RJ45/イーサネット入力、USB-C 充電、およびデュアル USB-A 2.0 ポートを備えています。
- 強化されたビジュアル:外部 4K モニターに接続すると、4K@60Hz HDMI 2.0 出力でより鮮明でスムーズなビジュアルを楽しめます。
- フルスピード Steam Deck 充電:最大 100W の電力供給をサポートし、オリジナルの充電器を使用すると Steam Deck がフルスピードで充電されます。
- オールインワンの利便性:ハブとスタンドが一体化しているため、別途アクセサリを用意する必要がありません。セットアップが合理化され、ゲーミングエリアを整理整頓できます。
- 互換性: Steam Deck、Steam Deck OLED、ROG Ally、Leigon Go、 MSI Claw に対応。(ROG Ally X とは互換性がありません)
📢注意:
- ROG Ally の高性能 30W モードをより快適に体験するには、100W 充電器の使用をお勧めします。
-
本製品はAYA NEOコンソールには対応しておりません。また、ROG Allyの30Wターボモードの動作は、使用する充電器に依存するため保証できません。対応デバイスの詳細については、以下の製品仕様をご確認ください。
SPECS
SPECS
HB0602S
HB0602
Compatible Devices: Steam Deck LCD/OLED, ROG Ally/X, Legion Go/Go 2/Go S, and MSI Claw
Non-compatible Devices: ROG XBOX Ally/X, Switch, Switch 2
Compatible Devices:Steam Deck LCD/OLED, ROG Ally, Legion Go/Go 2/Go S, and MSI Claw
Non-compatible Devices: ROG Ally X, ROG XBOX Ally/X, Switch, Switch 2
120(L)*77.5(W)*36(H)mm
wire length 25cm
4.45 x 2.64 x 1.1 inches
wire length 18cm

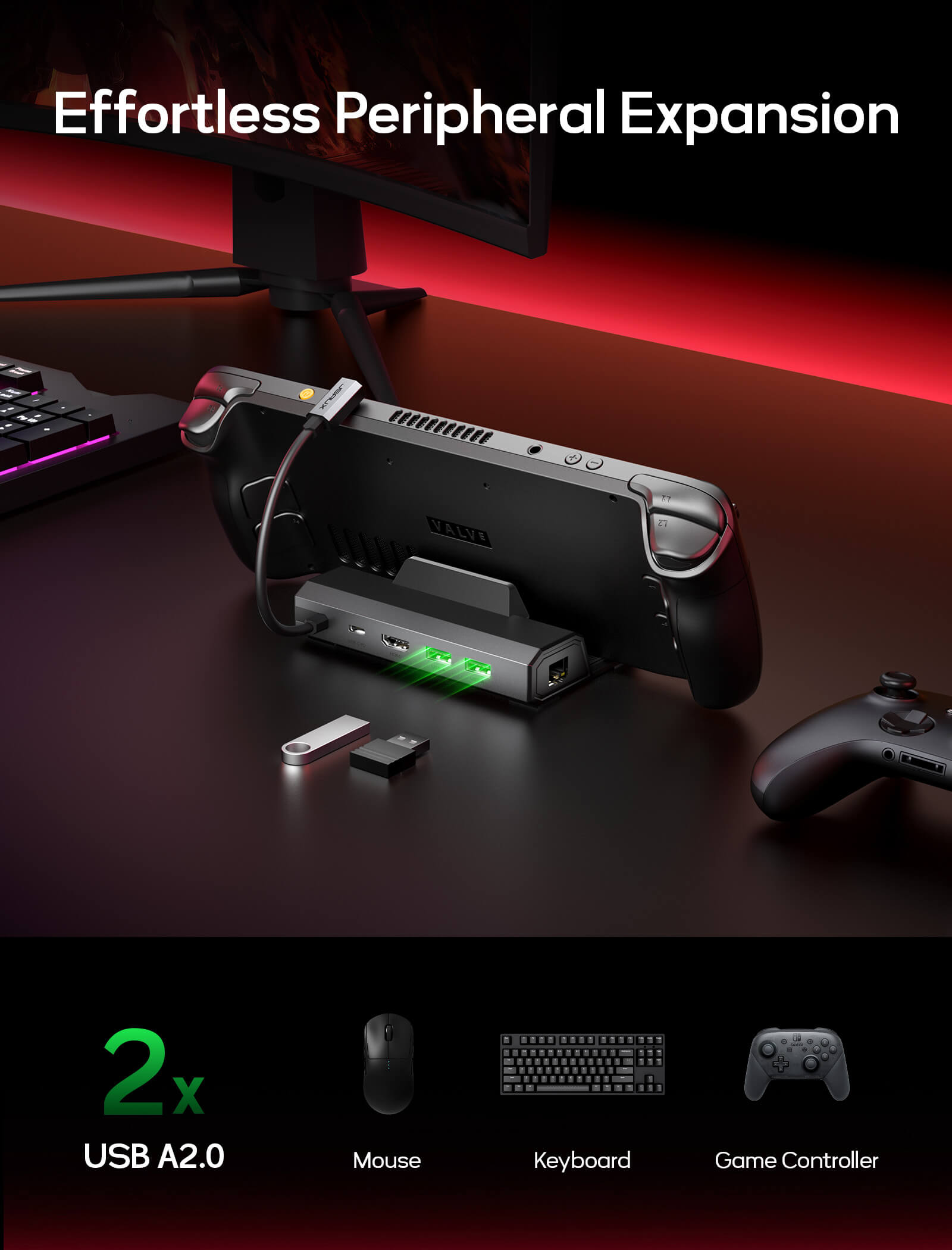

2* USB-A 2.0: supports 480Mbps
1* PD USB-C: Supports PD 100W charge
1* HDMI 2.1: Supports Up To 4K@120Hz
1* RJ45: Adaptive 100/10M Ethernet
2* USB-A 2.0: supports 480Mbps
1* PD USB-C: Supports PD 100W charge
1* HDMI 2.0: Supports Up To 4K@60Hz
1* RJ45: Adaptive 100/10M Ethernet
TPE+Aluminum
TPE+Aluminum
124g
140g
- Please set the resolution and refresh rate of your external monitor to the following standards: 3840*2160@30Hz/60Hz/120Hz, 5120*2880@30Hz, 2560*1440@60Hz or 1920*1080@60Hz/120Hz/144Hz.
- For 4K@120Hz output, please ensure your device supports it and use an HDMI 2.1 standard cable.
- Please connect a PD power adapter to the dock when using it. Without external power, the dock cannot charge your device or deliver stable video output.
- NOTE for Deck LCD/OLED: While a 45W PD charger can charge at full speed, we recommend using a 65W PD charger when docking — this ensures more stable power delivery and faster charging, especially if you connect multiple USB accessories.
- NOTE for ROG Ally/ ROG Ally X/MSI Claw: For the best experience — especially when using 30W Turbo Mode — we recommend a 100W PD charger. A higher-wattage adapter ensures there’s enough power for both the console and the dock, preventing performance drops, battery drain, or slower charging when accessories are connected.
- NOTE for Legion Go/Go 2/Go S: To fully unleash the console’s performance, we recommend using a 100W PD charger when docking. The extra power ensures stable 65W charging for the handheld while supplying enough energy for the dock and connected accessories — preventing battery drain or slower charging during heavy use.
- Performance Tip: When playing demanding games, high-resolution settings can increase power consumption and heat, which may cause frame drops or battery drain while docked. For smoother gameplay and lower latency with external devices, consider slightly lowering the game’s resolution or graphics settings.
SHIPPING
SHIPPING & RETURN
ご注文前に配送に関するヒントをよくお読みください。
- 50 ドル以上のご注文はすべて送料無料となります。
- 49.99 ドル未満の注文には送料として 6.99 ドルが請求されます。
(注:上記の配送ポリシーはFlipGoには適用されません。具体的な配送方法については、FlipGoの製品ページをご覧ください。)
ご注意ください:
- JSAUX GAMINGは、世界中のお客様に迅速かつ効率的な配送サービスを提供しています。(ただし、軍事施設(APO/FPO)および一部の島嶼部には商品を配送できません。)
- 現在、すべての注文の処理時間は 2 ~ 4 日かかります (週末は注文は処理されません)。
- ご注文のお届けには7〜12営業日かかります(先行販売商品は除く)。
- 国際関税および税金が適用される場合がありますが、チェックアウト時には計算されません。
- 先行販売商品の発送時期については商品ページの指示に従います。
物流サービスプロバイダーの要件により、
- ご注文をできるだけ早く準備し、配送の問題を回避するために、正確な番地や配送会社に必要なその他の情報を含む正確な住所を必ず入力してください。
-
中国本土および台湾のお客様:中国本土のお客様は、Tmall をご利用の上ご注文ください。香港、マカオのお客様は、氏名、身分証明書番号、配送先住所を繁体字中国語でご記入ください。
- サウジアラビアの場合: 50ドル以上のご注文で送料無料は適用されません。送料は14.99ドル(VAT込み)となります。
- 物流上の理由により、当社は次の国および地域への注文サービスを一時的に提供していません:アフガニスタン、アルバニア、アルジェリア、アンドラ、アンゴラ、アンギラ、アルゼンチン、アルメニア、アルバ、アゼルバイジャン、バーレーン、バングラデシュ、バルバドス、ベラルーシ、バミューダ、ブータン、ボスニア・ヘルツェゴビナ、ブラジル、英領ヴァージン諸島、ブルネイ、ブルキナファソ、ブルンジ、ボリビア、カンボジア、カメルーン、ケイマン諸島、中央アフリカ共和国、中国、クリスマス島、コスタリカ、コートジボワール、ジブチ、コンゴ - ブラザヴィル、コンゴ - キンシャサ、エジプト、エルサルバドル、エクアドル、フォークランド諸島、フェロー諸島、フランス領ポリネシア、ガボン、ガンビア、ジョージア、ガーナ、ジブラルタル、グリーンランド、グアドループ、グアテマラ、ガーンジー島、ギニア、ホンジュラス、アイスランド、インドネシア、イスラエル、ジャマイカ、ヨルダン、ジャージー、カザフスタン、ケニア、キリバス、キルギス、レバノン、レソト、リベリア、リヒテンシュタイン、モルディブ、モーリシャス、マルティニーク、モルドバ、モナコ、モンゴル、モンテネグロ、ミャンマー(ビルマ)、ナミビア、ナウル、ニューカレドニア、ニカラグア、ニジェール、ナイジェリア、ノーフォーク島、北マケドニア、ノルウェー、オマーン、パキスタン、パラグアイ、ルワンダ、サンマリノ、セネガル、セルビア、セイシェル、ソロモン諸島、南スーダン、スリランカ、スーダン、タジキスタン、トーゴ、トンガ、チュニジア、トルクメニスタン、ツバル、ウガンダ、ウクライナ、ウルグアイ、インド、ウズベキスタン、バヌアツ、バチカン市国、米国の一部の地域(含む)プエルトリコ、グアム、米領バージン諸島、北マリアナ諸島、アメリカ領サモア、および APO、FPO、DPO などの軍事基地。
15日間返品:
返品・交換ポリシーは、商品をお受け取りになった日から15日間有効です。詳しくは、配送ポリシーのセクションをご覧ください。
FAQ
Q1. Why do SD cards become inoperable or unwritable?
A1. SD card format is not compatible with the Steam Deck system, you need to back up the SD card in advance and then format it to the correct format.
Q2. Does the docking station output video over a USB-C port?
A2. No, the USB-C port is for power input only.
Q3. Why does the flicker occasionally appear after I connect the Steam Deck to the monitor via Docking Station HB0602 for a period of time?
A3.After a long gaming experience, Steam Deck will enter a self-protection mechanism due to overheating. At this time, the occasional screen flicker is a mechanism of reducing the frequency of the screen, which is a normal phenomenon.
Q4. Some instructions for customers when setting resolution in desktop mode.
A4. 1. You can modify the resolution in desktop mode or game mode (Steam Deck version 3.3.2 and above)
2. It is recommended that after connecting the monitor, only the monitor should be used as the main playing screen, both "Enabled" and "Primary" under "Laptop Screen" should be unchecked.
This will provide a better gaming experience and also reduce the power consumption of the console screen.
3. If you need a split screen experience, we also recommend separating the two screens, otherwise, there will be a screen overlap situation.
(At present, due to Steamdeck system bug, so there is no way to split the screen to put the icons of two screens on one screen)
Q5. How to turn on the ROG Ally 30W turbo mode with JSAUX Dock?
A5. It is recommended to use a PD 100W charger to better experience ROG Ally’s high-performance 30W mode.
If you're using a multi-port 100W charger, please avoid connecting other devices at the same time. This helps ensure stable power delivery and optimal performance for the docking station and your device.
