OmniCase 2 系列扩展坞

MP03 和 MP04
$89.99 $99.99
Save

风格
Pay with Ease
American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
FEATURES
  • 4K@60Hz USB C to HDMI Adapter
  • Plug & Play
  • Compact & Reliable
  • Wide Compatibility
Learn More…
SPECS
Docking Station#style_omnicase 2 pro
OmniCase 2 系列扩展坞
促销价格$89.99 原价$99.99
OmniCase 2 Pro

In The Press

JSAUX OmniCase 2 Pro 是一款全新的便携式 USB-C 集线器,集成了您需要的所有 I/O 以及磁性盖和存储空间,可保护 SD/SIM 卡、适配器等。
这款紧凑型底座将简化您的工作空间,让您轻松进行多任务处理,并提高您的工作效率,无论您身在何处。
该设备的多功能性和便携性使其比传统的 Steam Deck 基座使用起来更加方便。
OmniCase 2 Pro
OmniCase 2 Lite+
OmniCase 2 Series Docking Station
OmniCase 2 Series Docking Station
OmniCase 2 Series Docking Station
OmniCase 2 Series Docking Station
OmniCase 2 Series Docking Station

FEATURES

描述

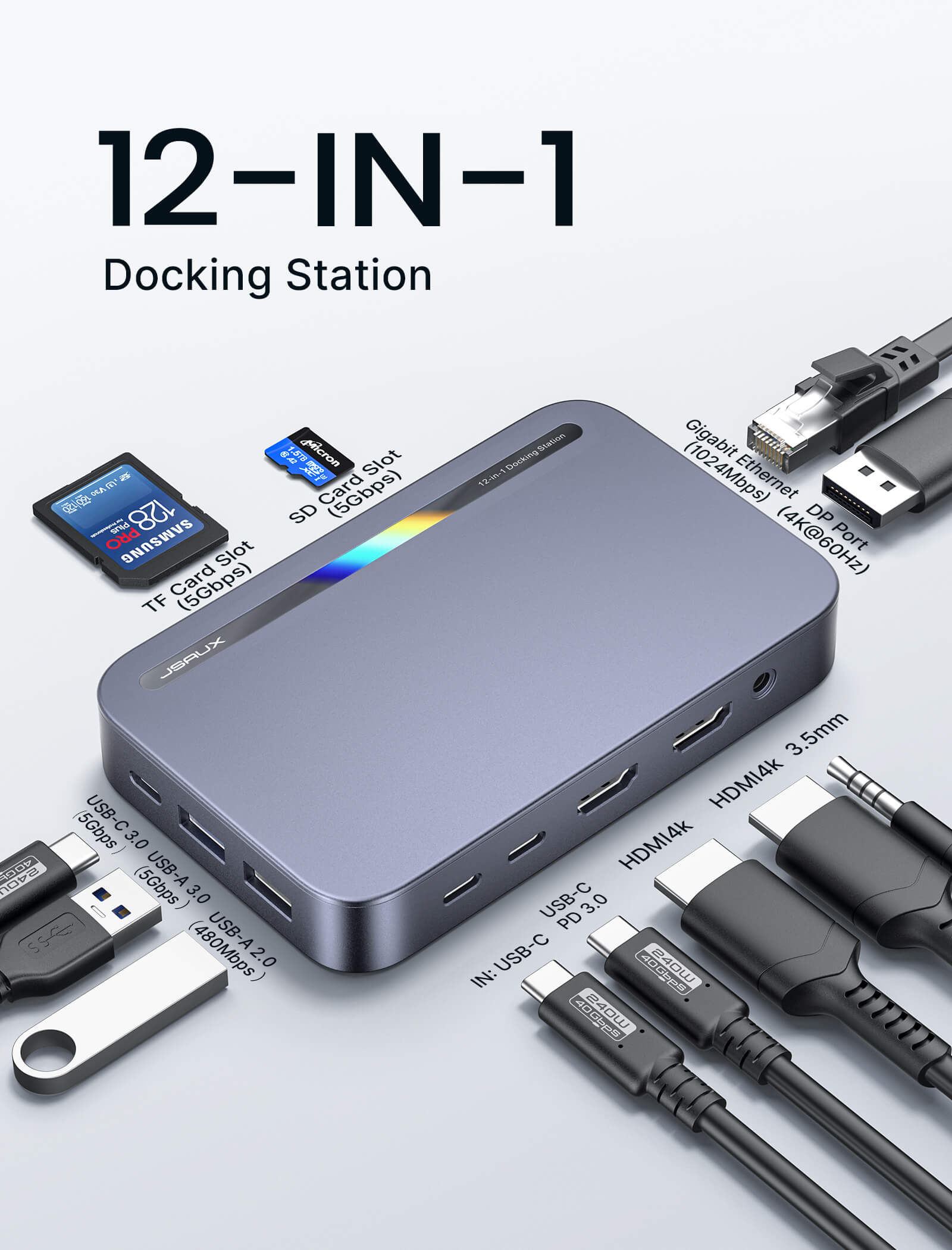

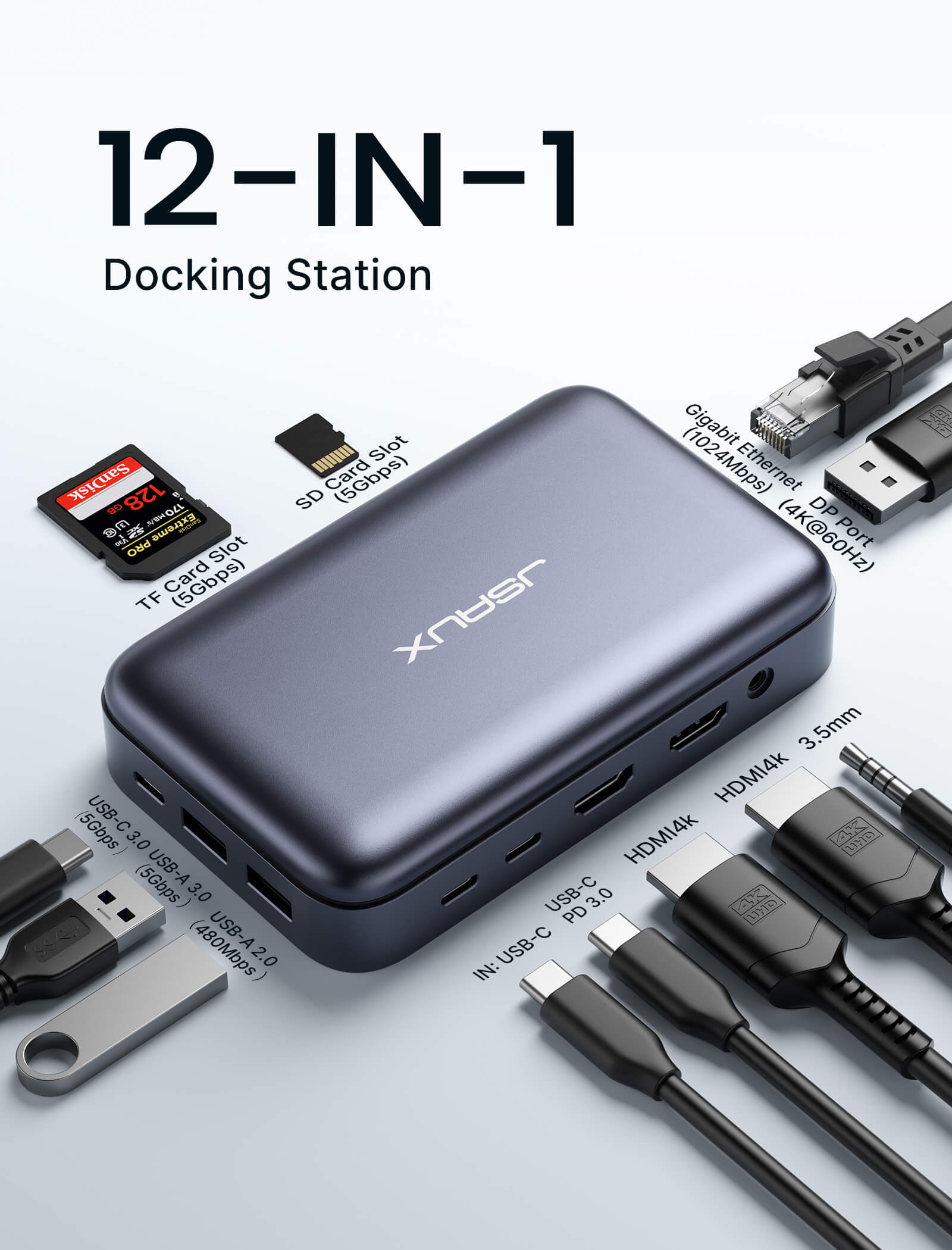

  • 12 合 1 存储扩展坞: OmniCase 2 Pro 和 OmniCase 2 Lite+ 存储扩展坞具有 12 个功能端口,包括 2* HDMI 端口(4K@60Hz)、1*USB-A 3.0(5Gbps 数据传输)、1*USB-A 2.0(480Mbps 数据传输)、1*千兆以太网端口、1*USB C-PD 端口、1*3.5mm 音频接口、1*TF 卡插槽、1*SD 卡插槽、1*DisplayPort(4K@60Hz)和 2*USB C 端口。终极 12 端口扩展坞,您所需的一切都集中在一个地方!

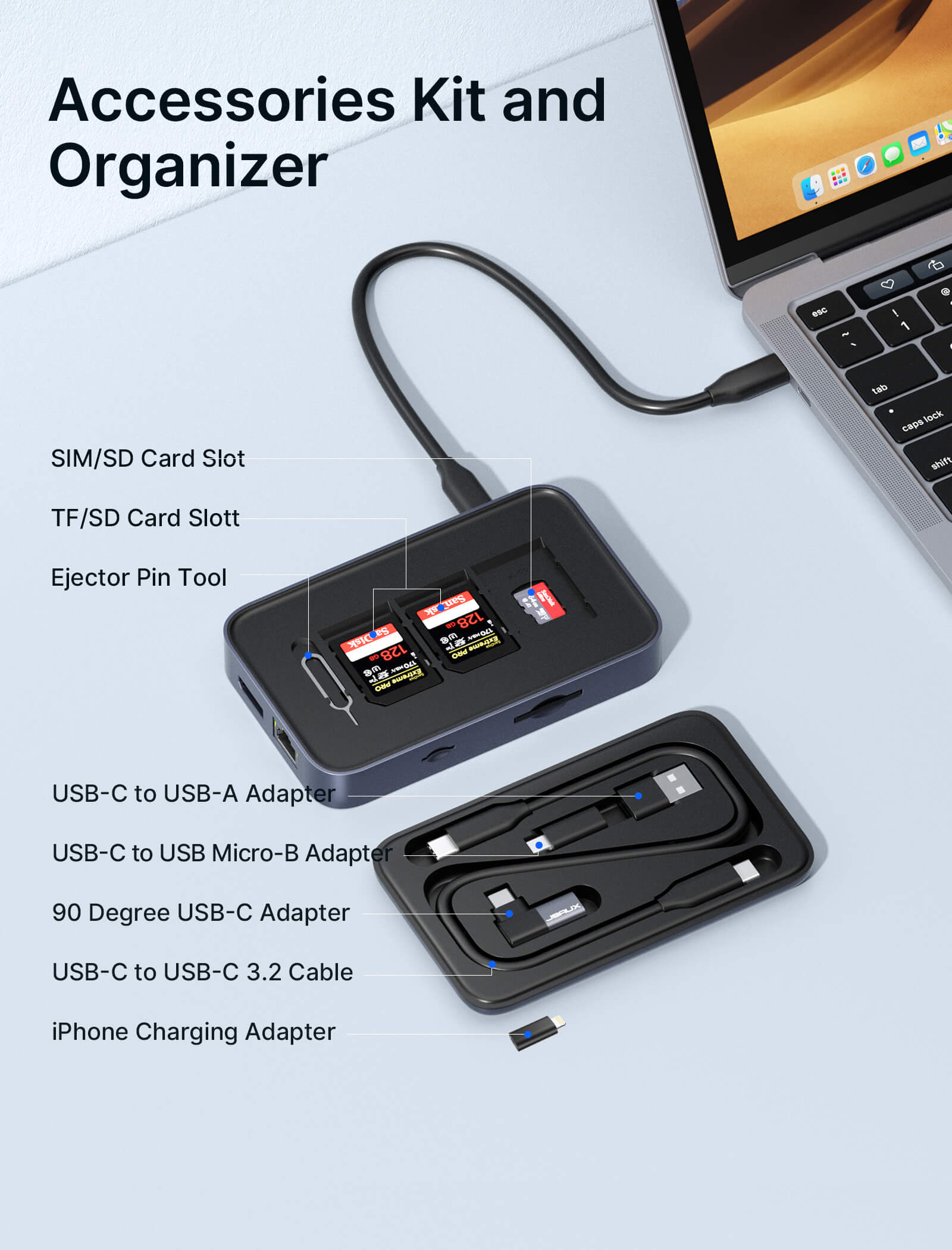

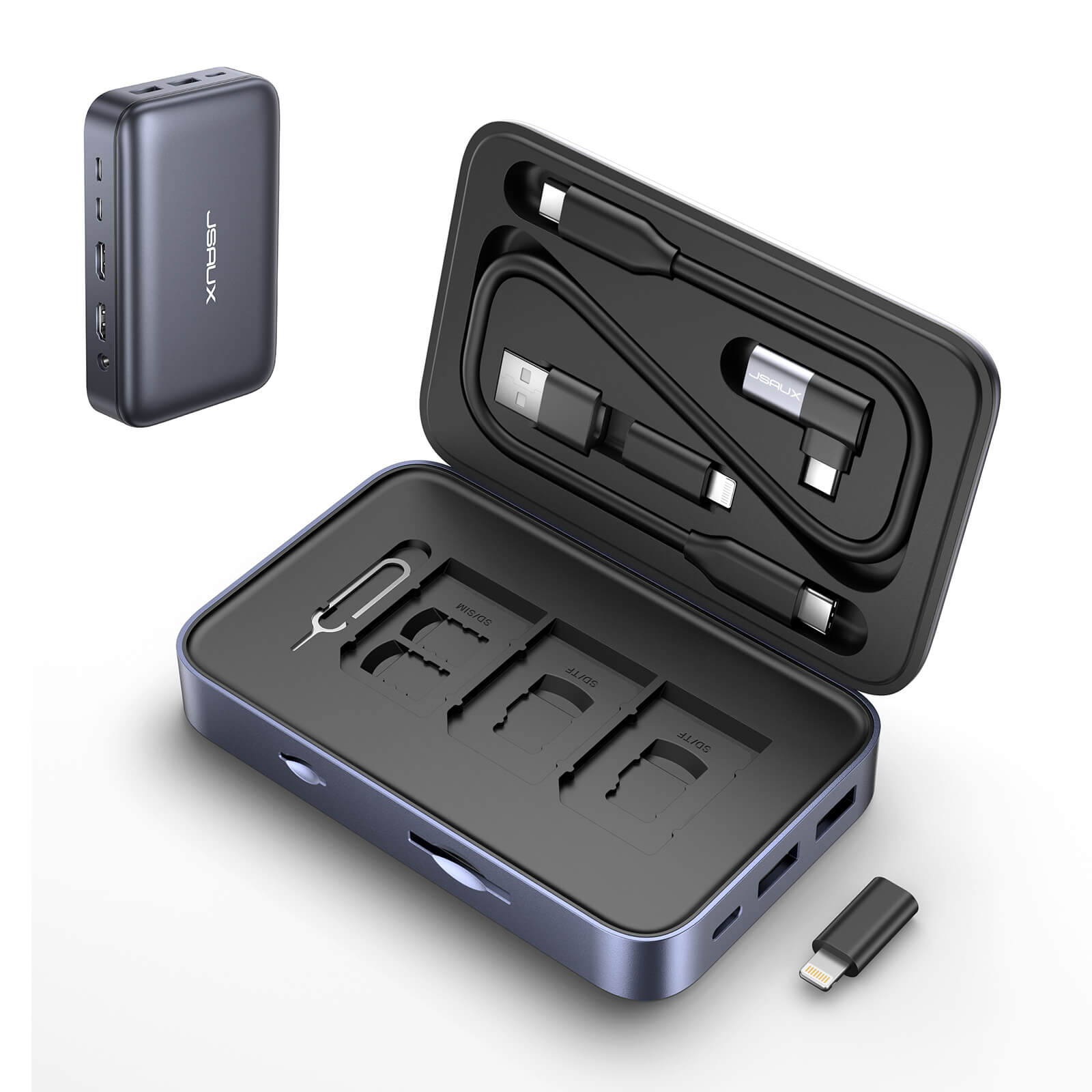

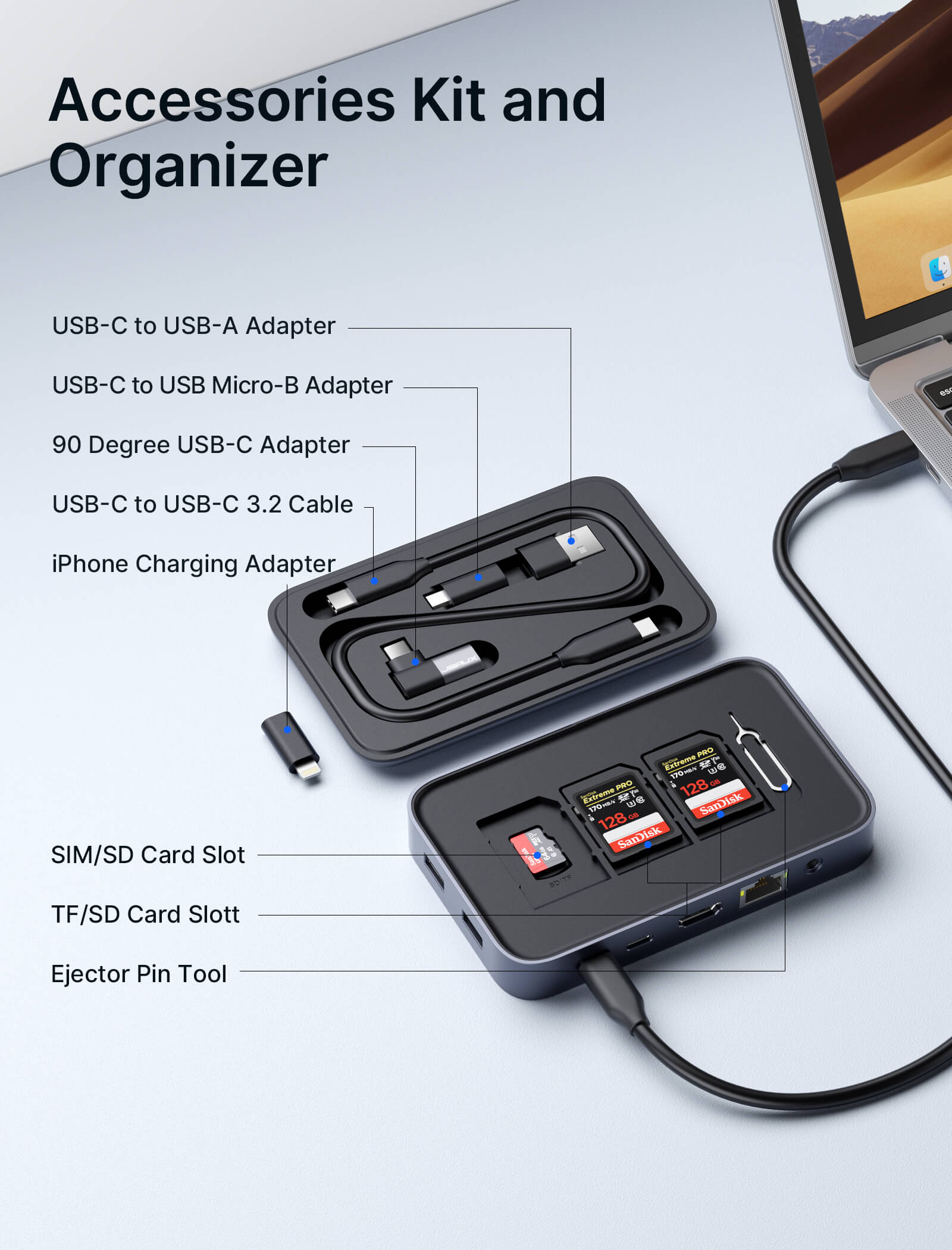

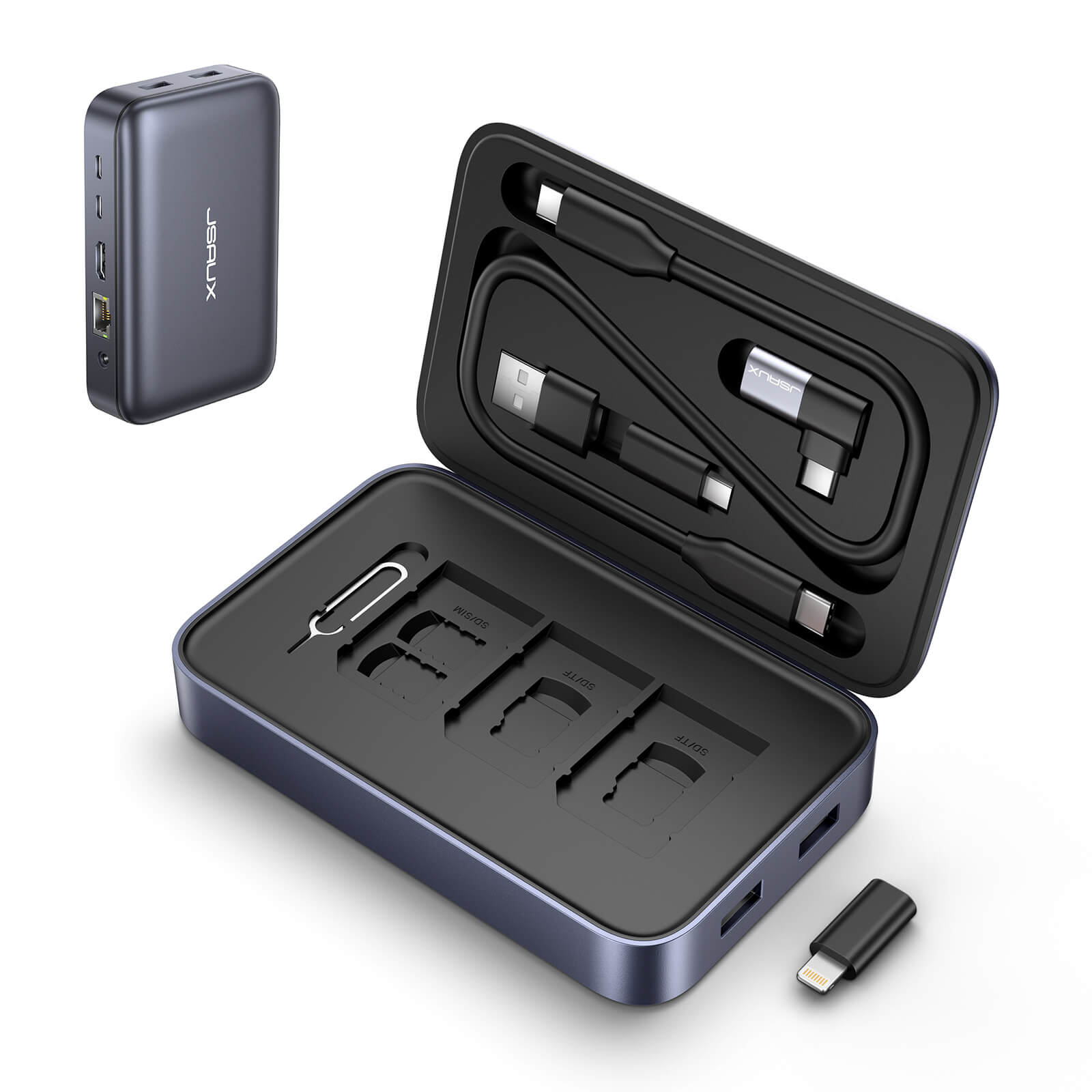

  • 电子存储功能设计:配备多种类型的线缆和适配器,可轻松取出并连接到您的设备,让您的科技生活更加轻松。您将获得一根 USB-C 转 USB-C 3.2 线缆、一个 USB-C 转 USB micro-B 适配器、一个 USB-C 母头转 USB-A 公头适配器、一个 90° 母头转公头 USB-C 适配器以及一个弹出针工具。( 📢仅适用于 OmniCase 2 和 OmniCase 2 Pro)

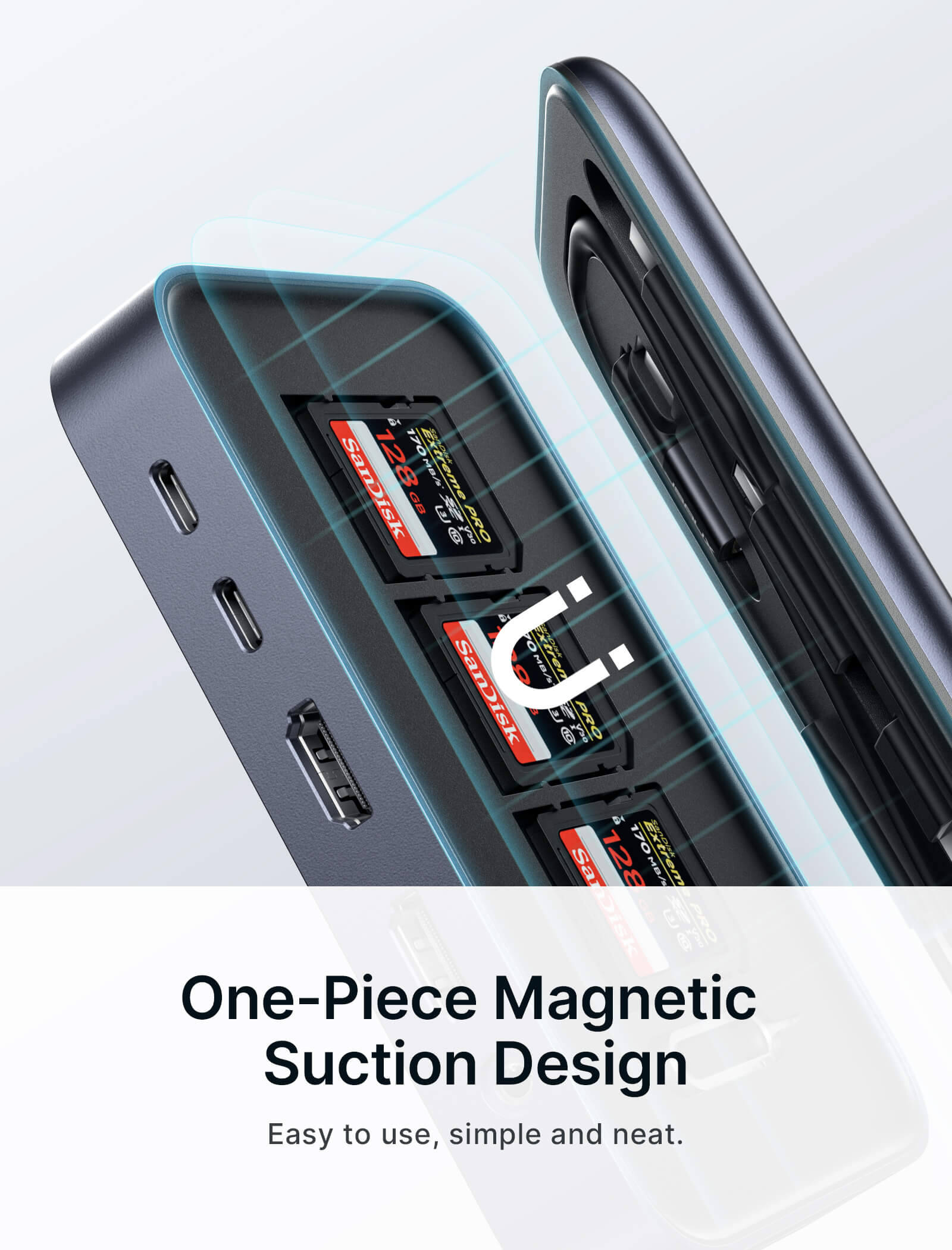

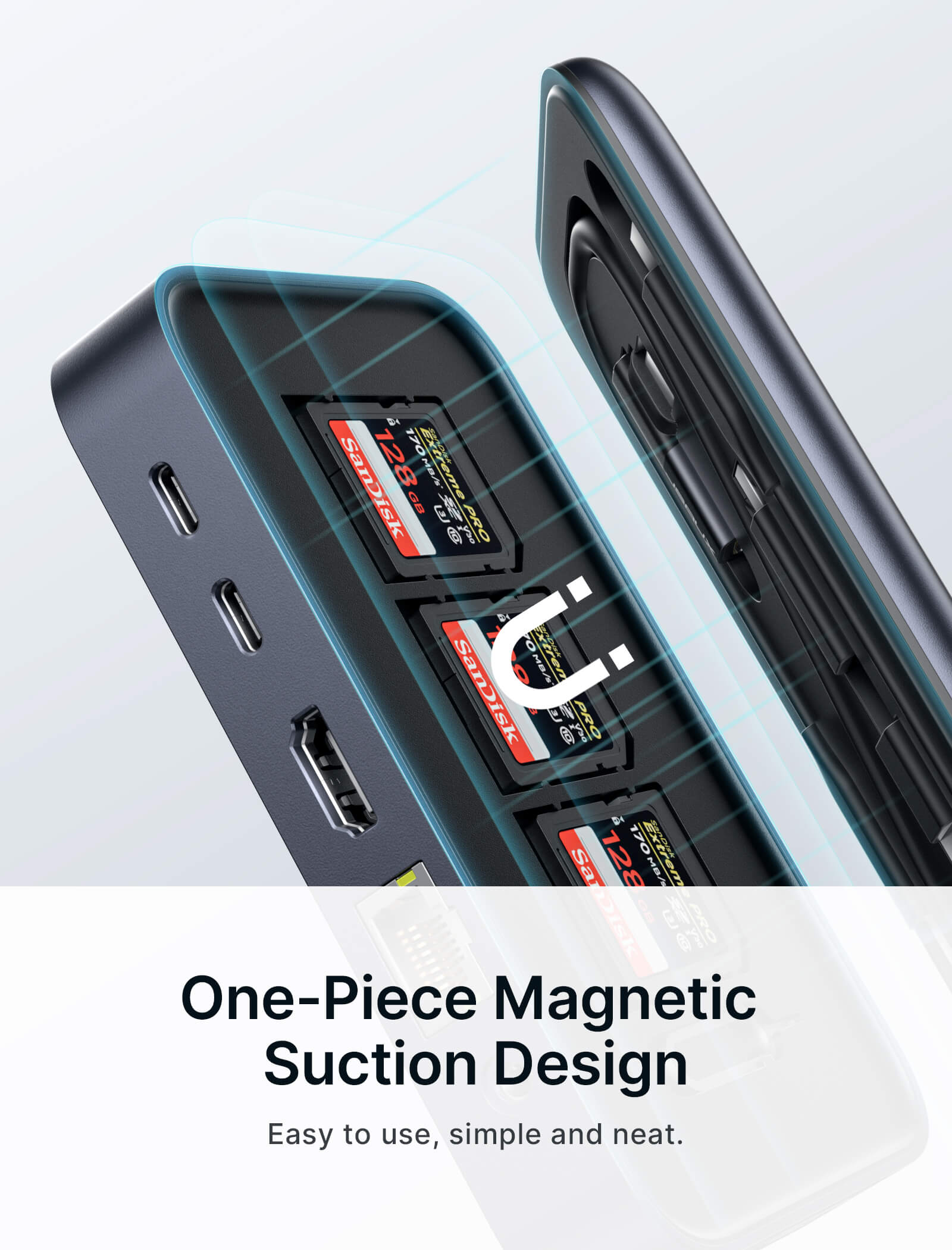

  • 一体式磁吸设计:我们创新的一体式磁吸设计,确保您的设备之间无缝连接。只需将它们靠近,磁力即可将它们牢牢固定。无论您去哪里,都能轻松携带。 📢仅适用于 OmniCase 2 和 OmniCase 2 Pro)

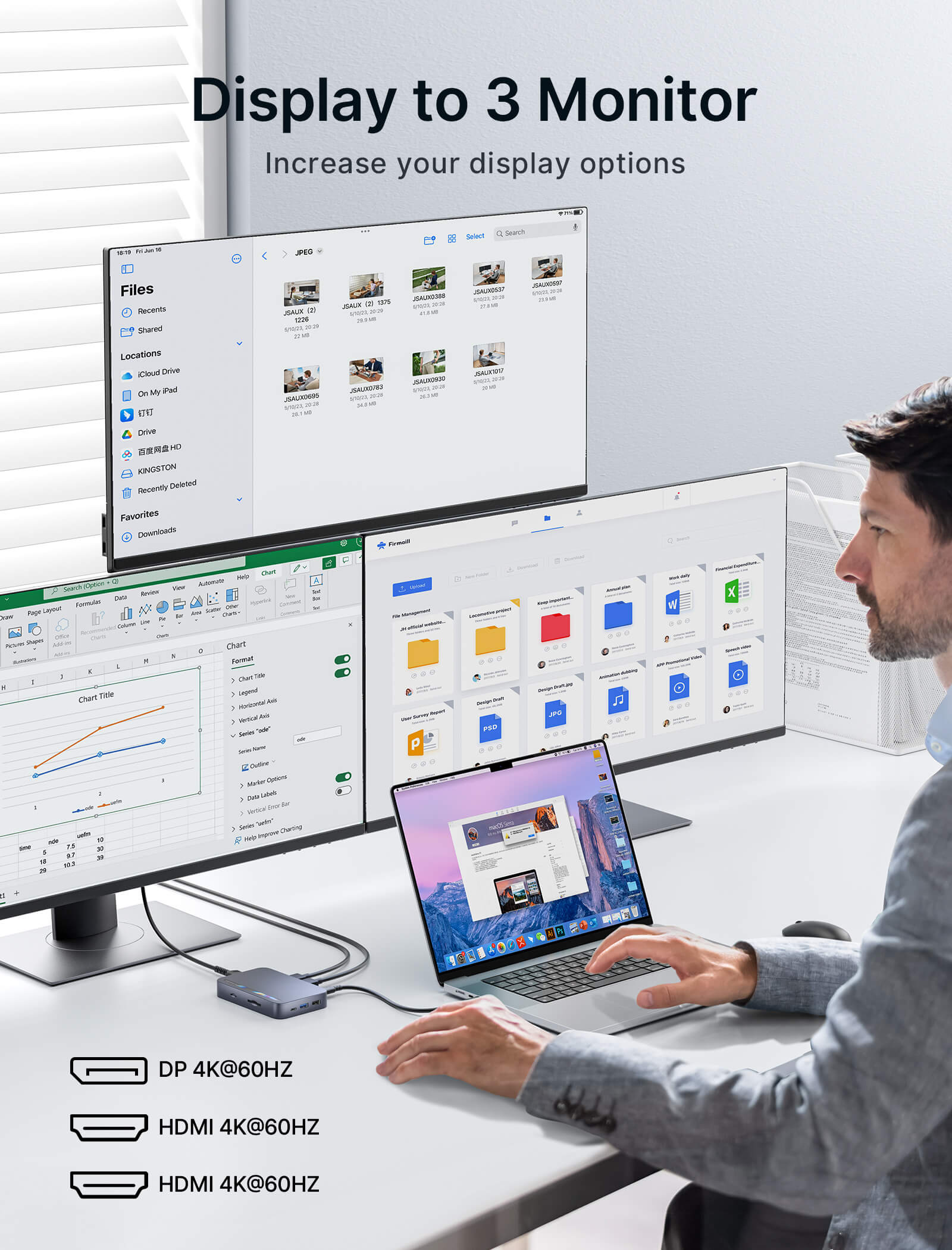

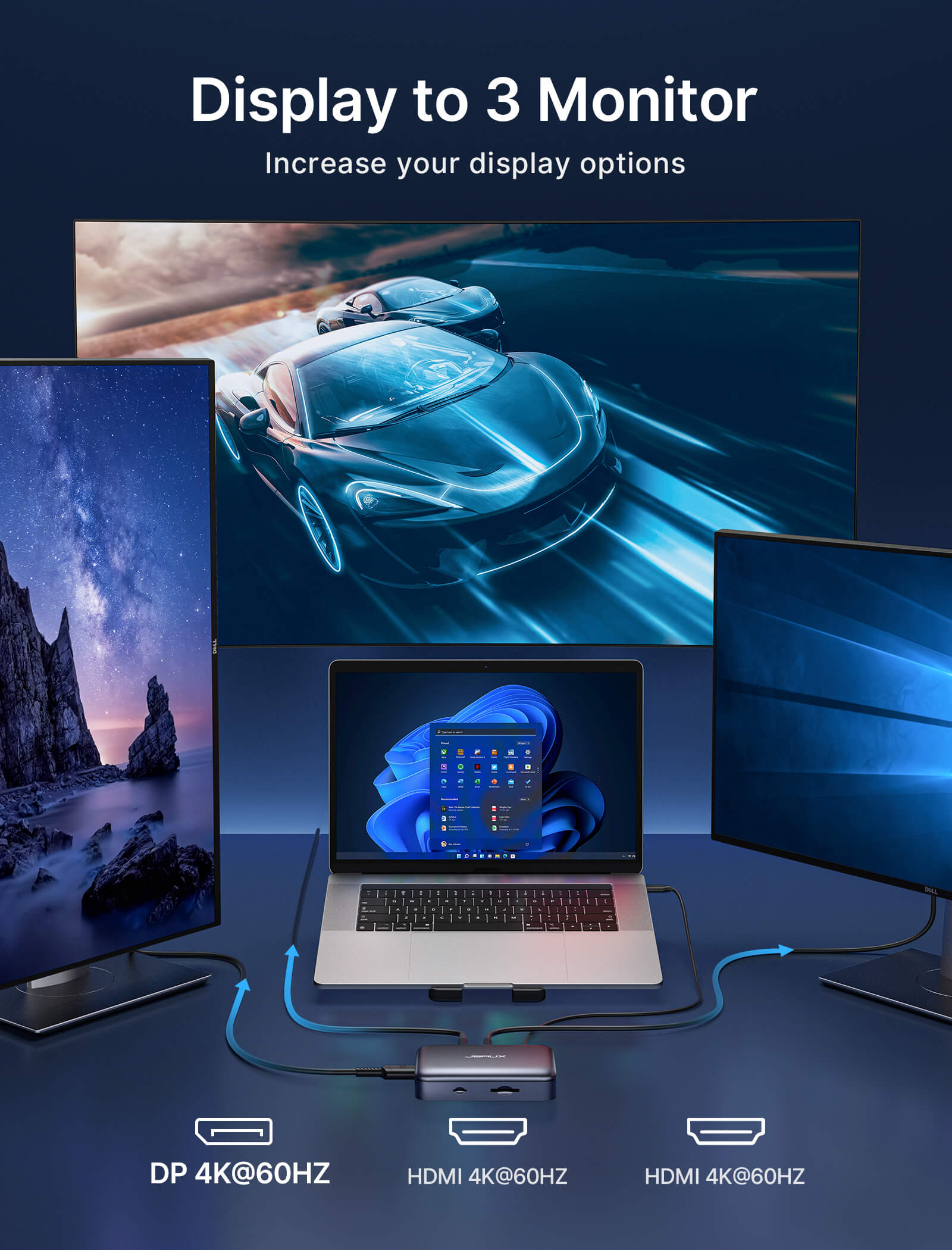

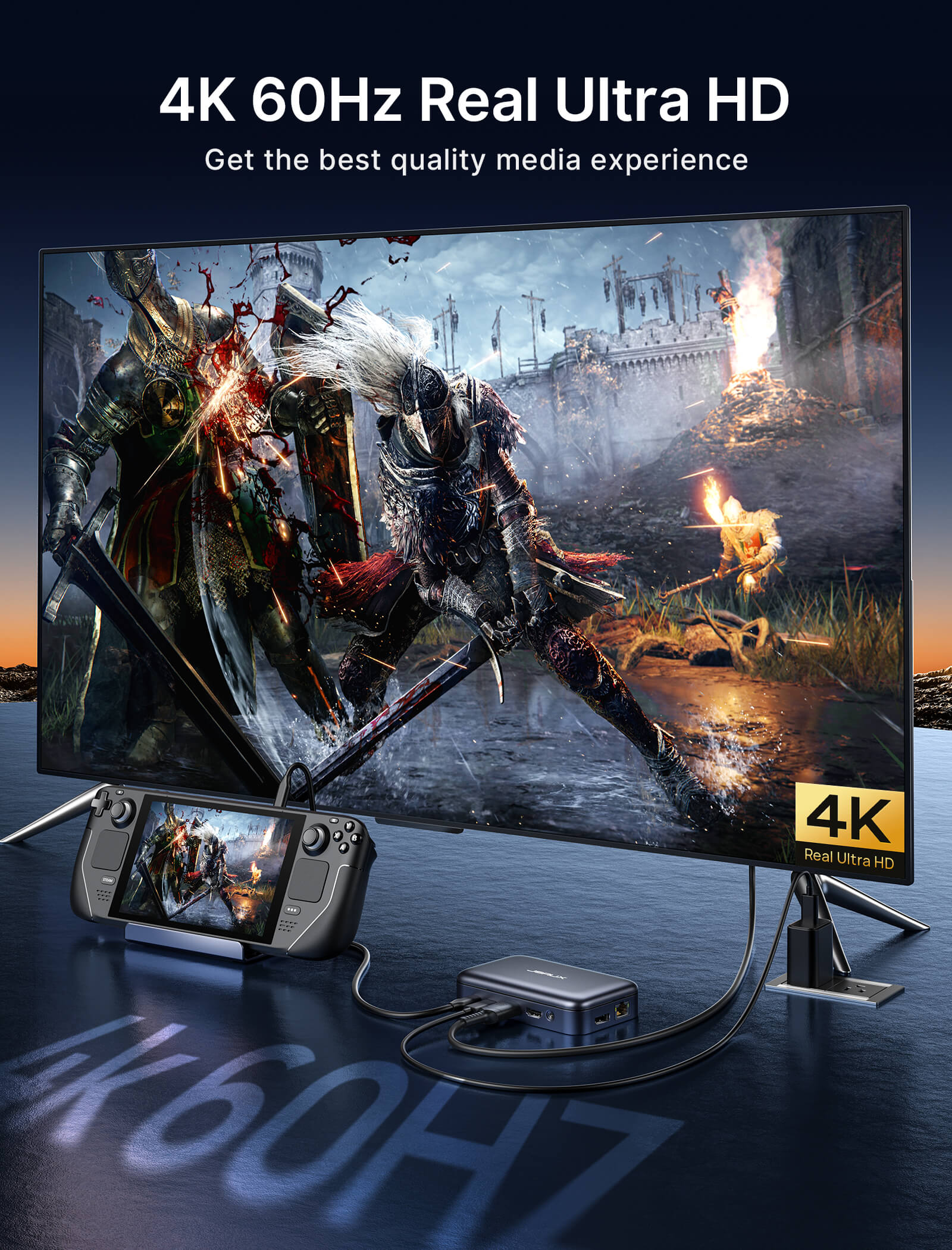

  • 4K@60Hz 超高清和三屏显示:通过我们的 HDMI 和 DisplayPort 输出,沉浸在令人惊叹的 4K@60Hz 分辨率中,享受一场视觉盛宴。十二合一存储扩展坞支持 Windows 系统三屏显示镜像和扩展模式(A-AAA、A-BBB 和 A-BCD),并可支持 MAC OS 系统三屏显示镜像模式(A-AAA 和A -BBB)。📢注意:由于 MacOS 的限制,Apple 设备不支持 MST 在扩展模式下,Mac 用户仅可使用两种不同的显示内容。📢仅适用于 OmniCase 2 Lite+ 和 OmniCase 2 Pro

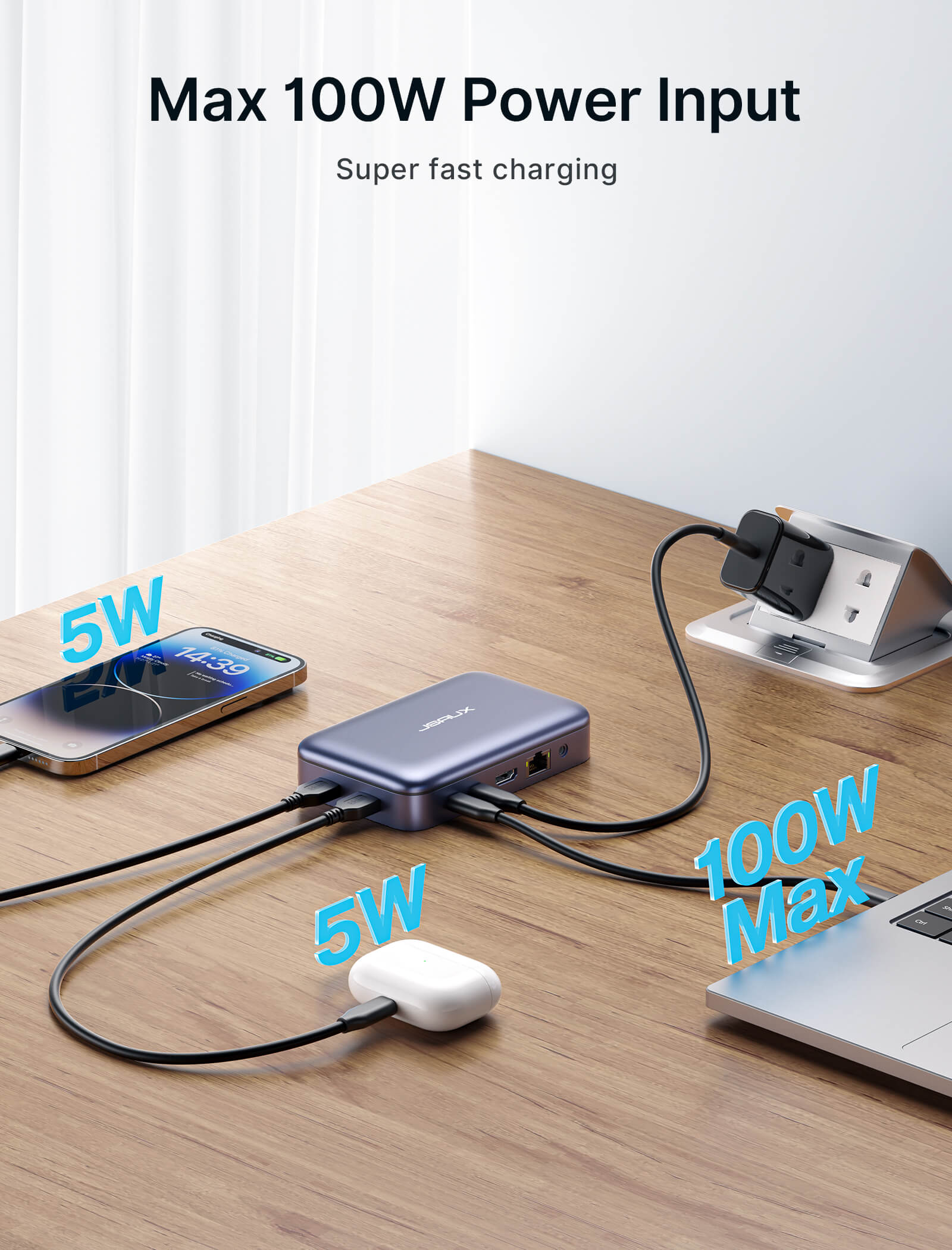

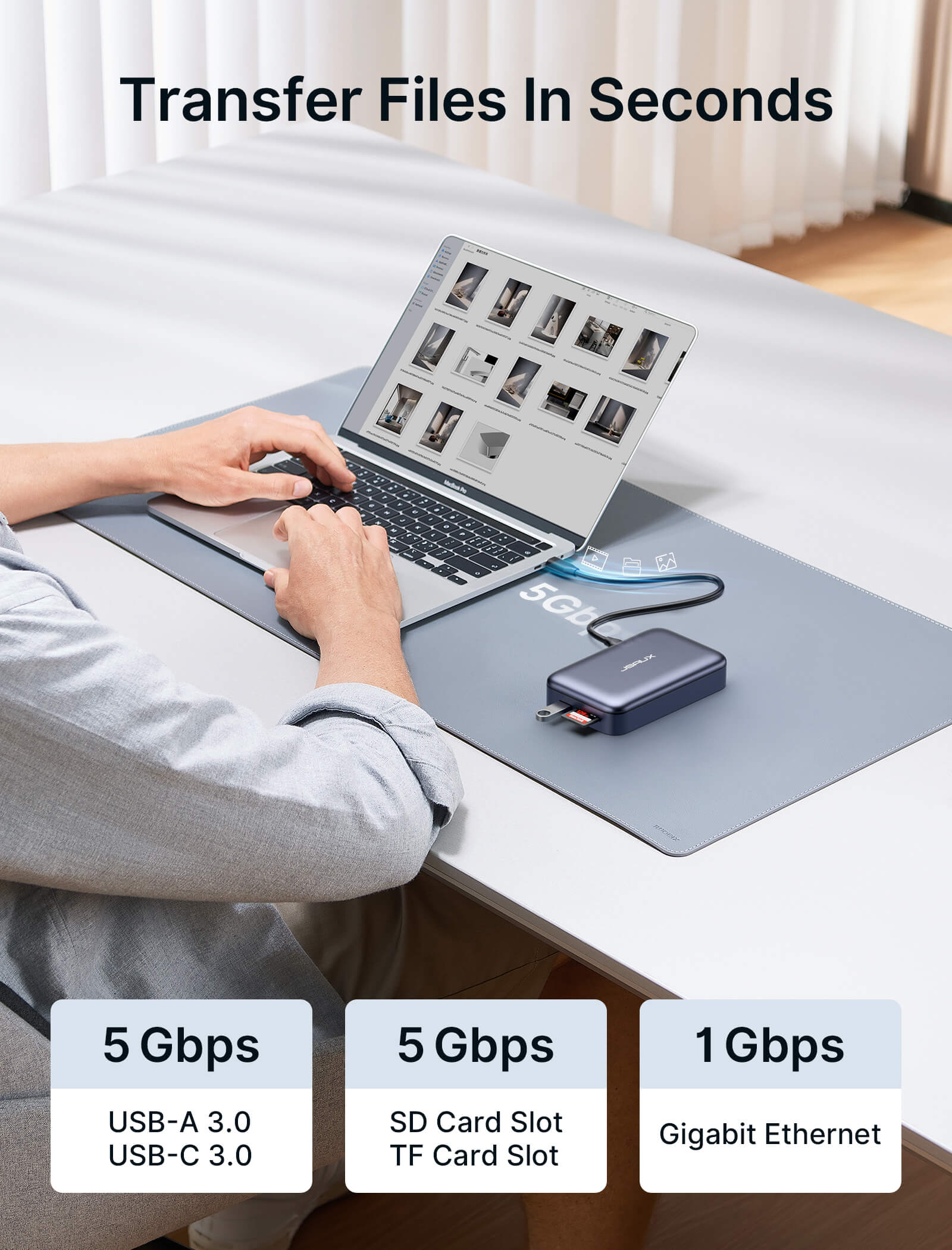

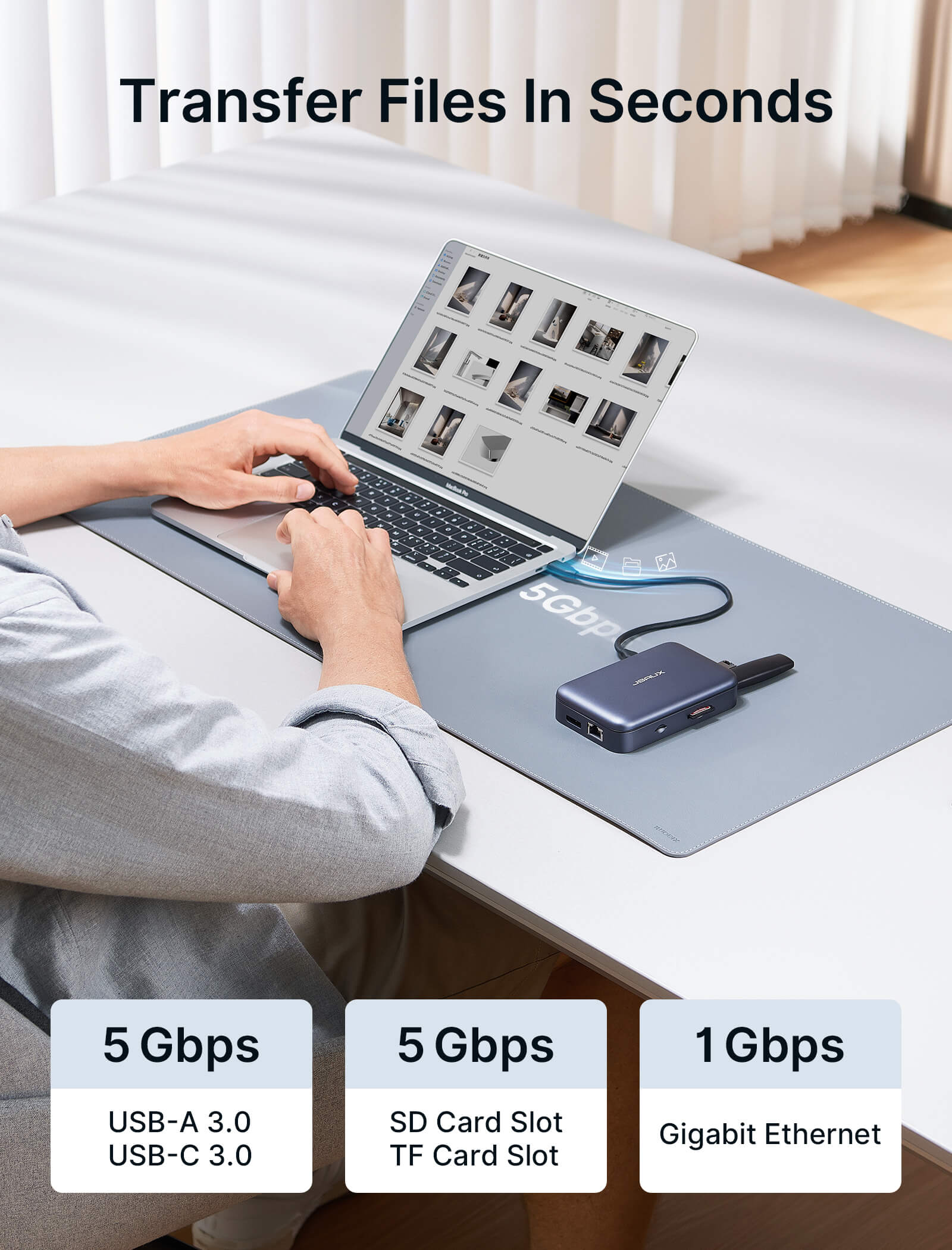

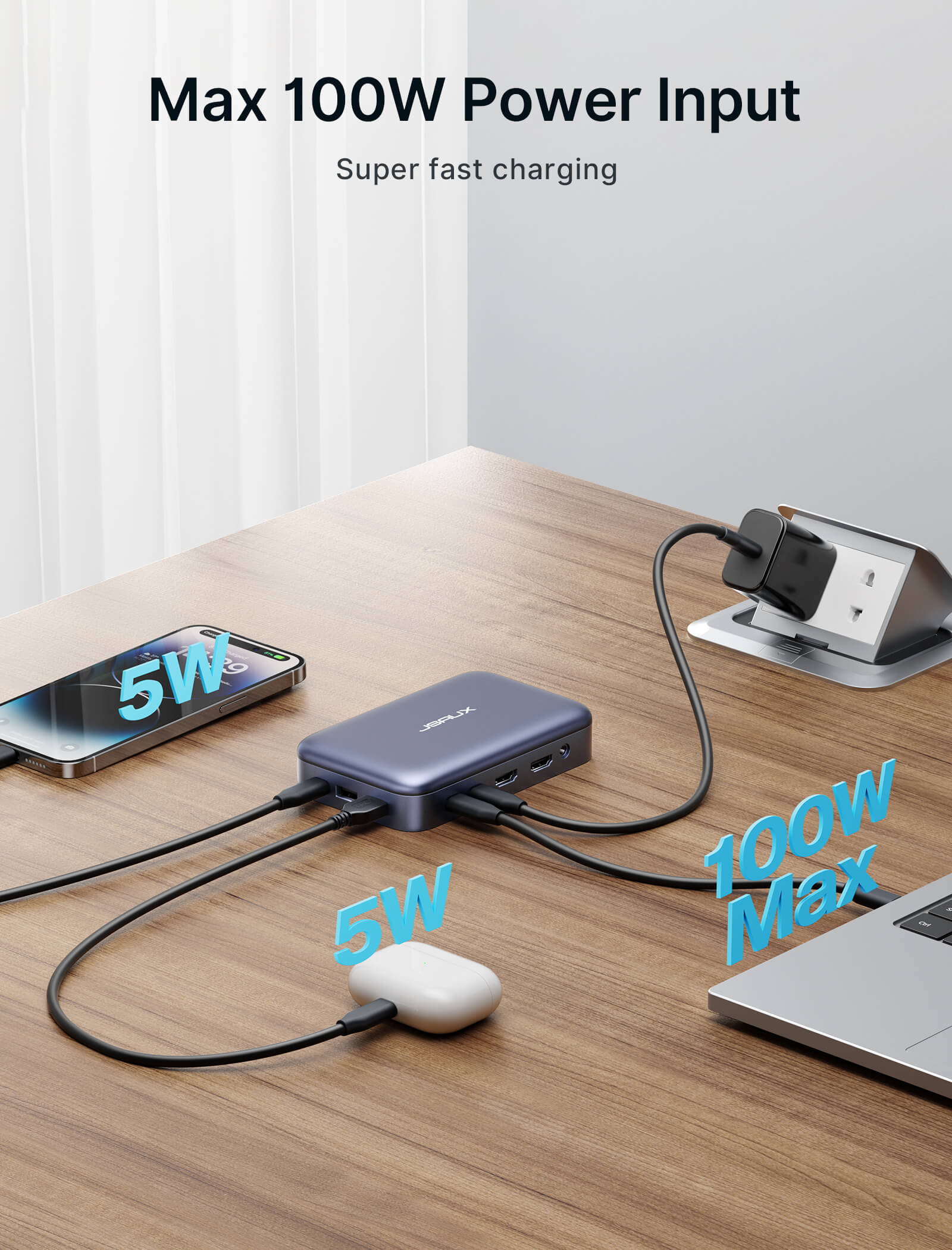

  • PD100W 充电和 5Gbps 数据传输:配备 USB-C PD3.0 100W 充电端口,支持最大 100W 功率输入,可快速为您的平板电脑、笔记本电脑和 Steam Deck 充电,为您的所有设备提供可靠的电源。OmniCase 2 Pro 和OmniCase 2 Lite+存储扩展坞提供 1 个 SD 卡插槽、1 个 TF 卡插槽、1 个 USB-A 3.0 端口、1 个 USB-C 3.0 端口和 1 个 USB-A 2.0 端口,确保您获得高达 5Gbps 的快速数据传输。

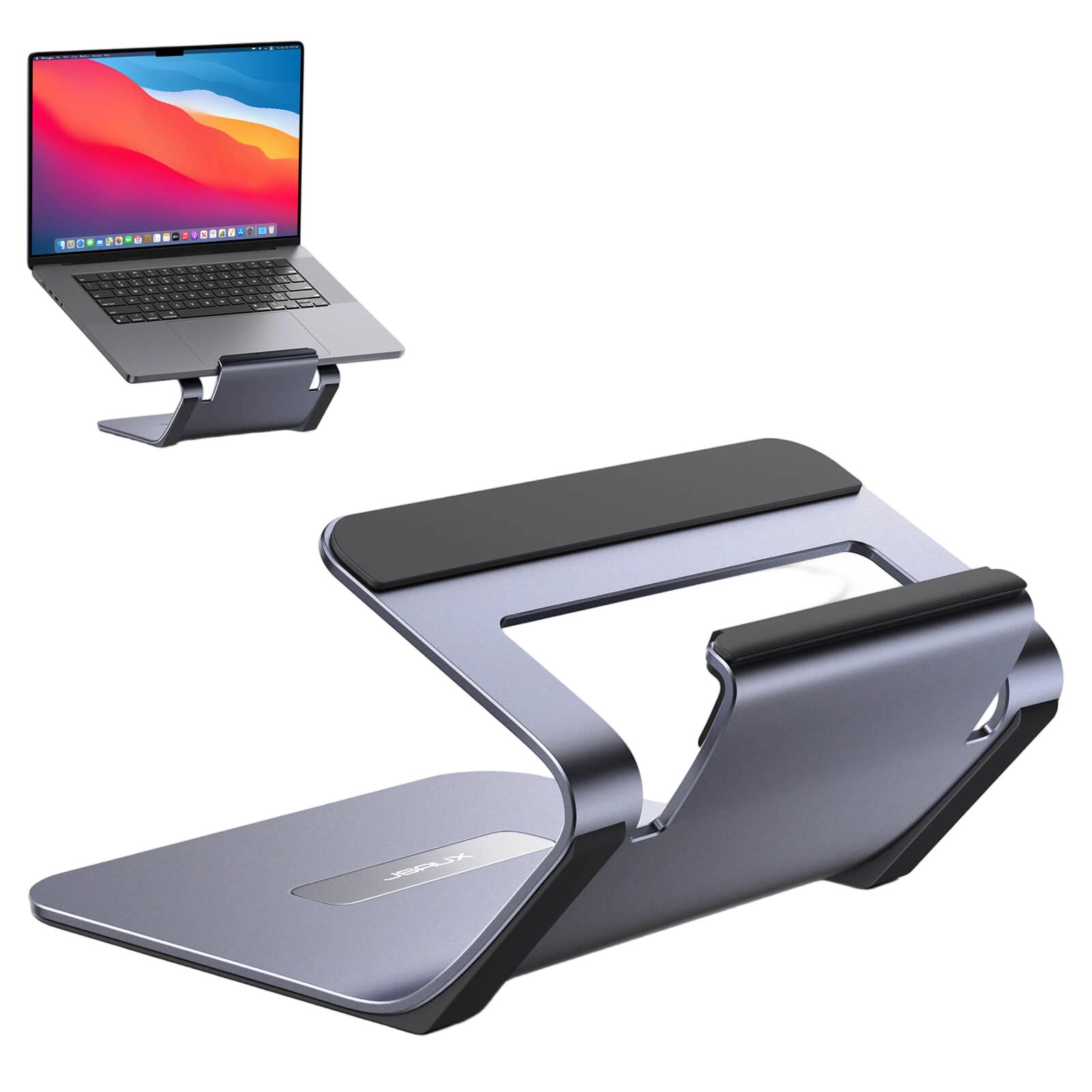

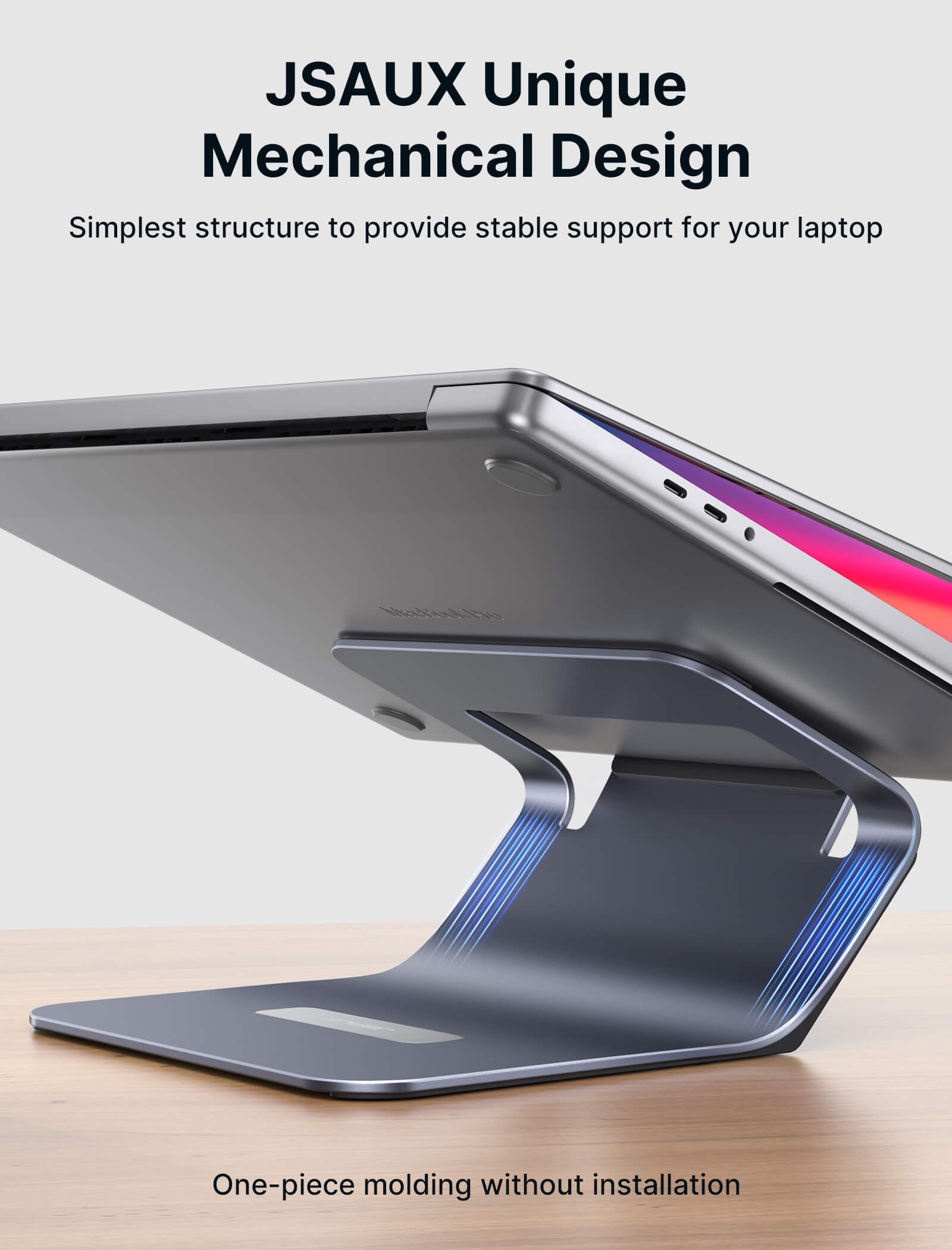

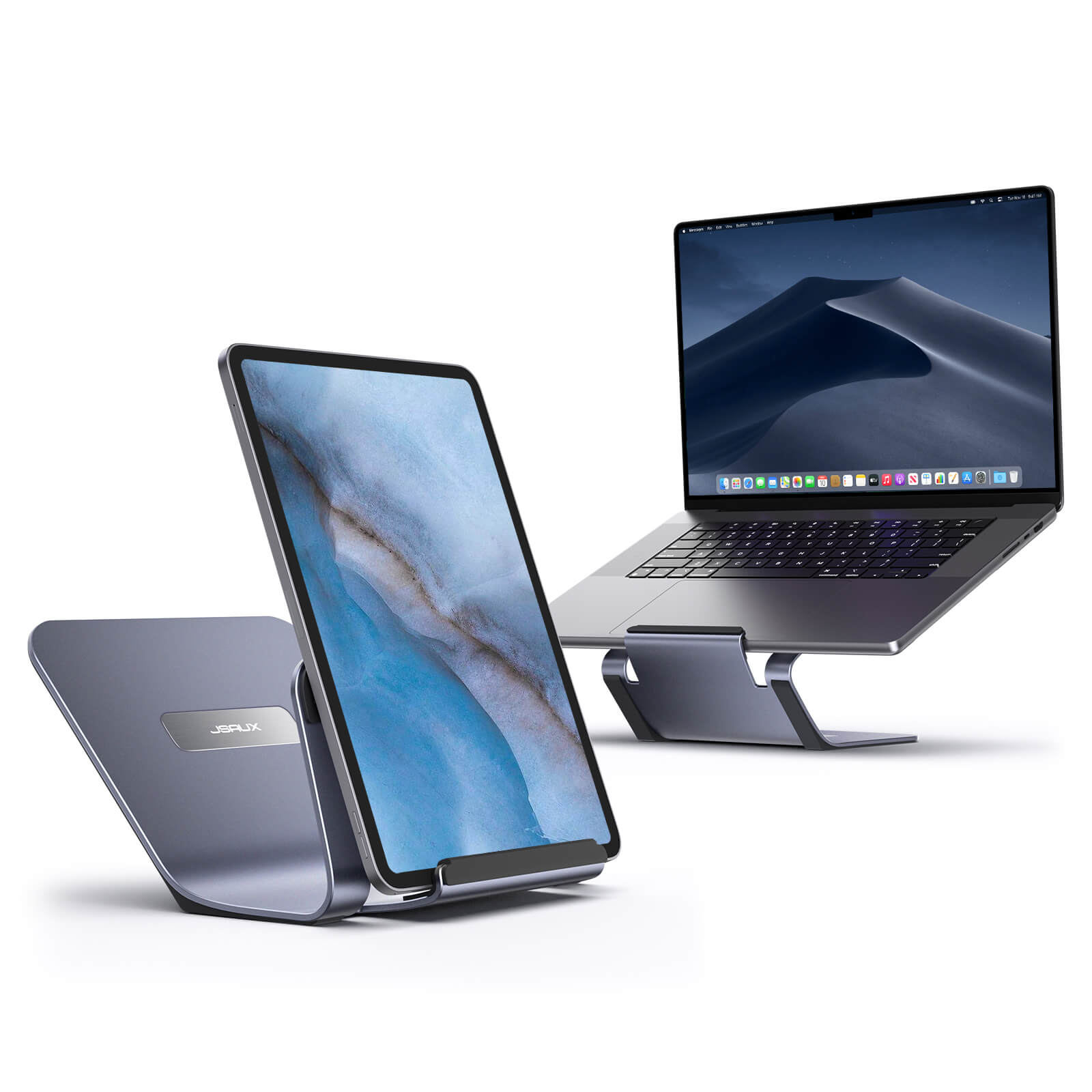

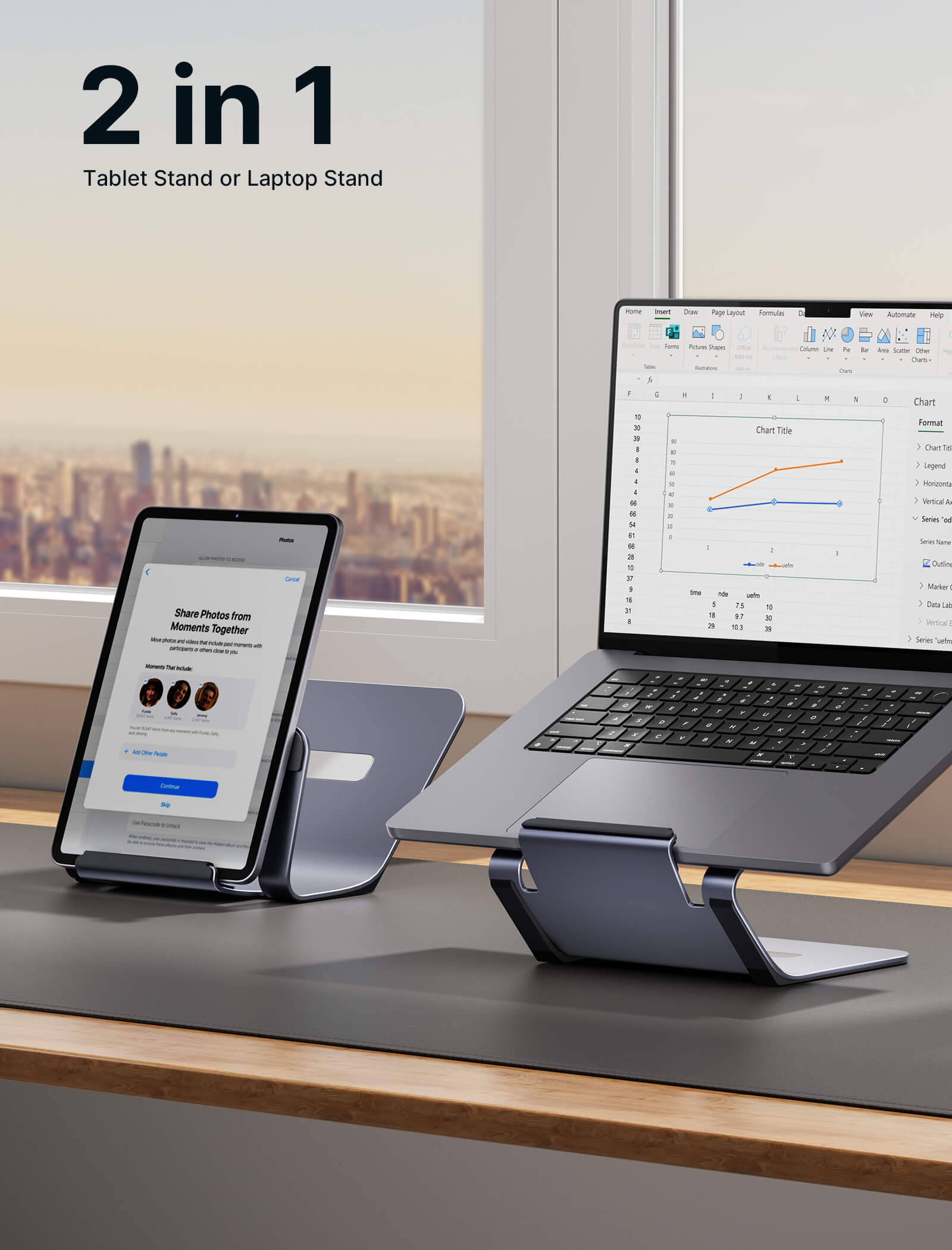

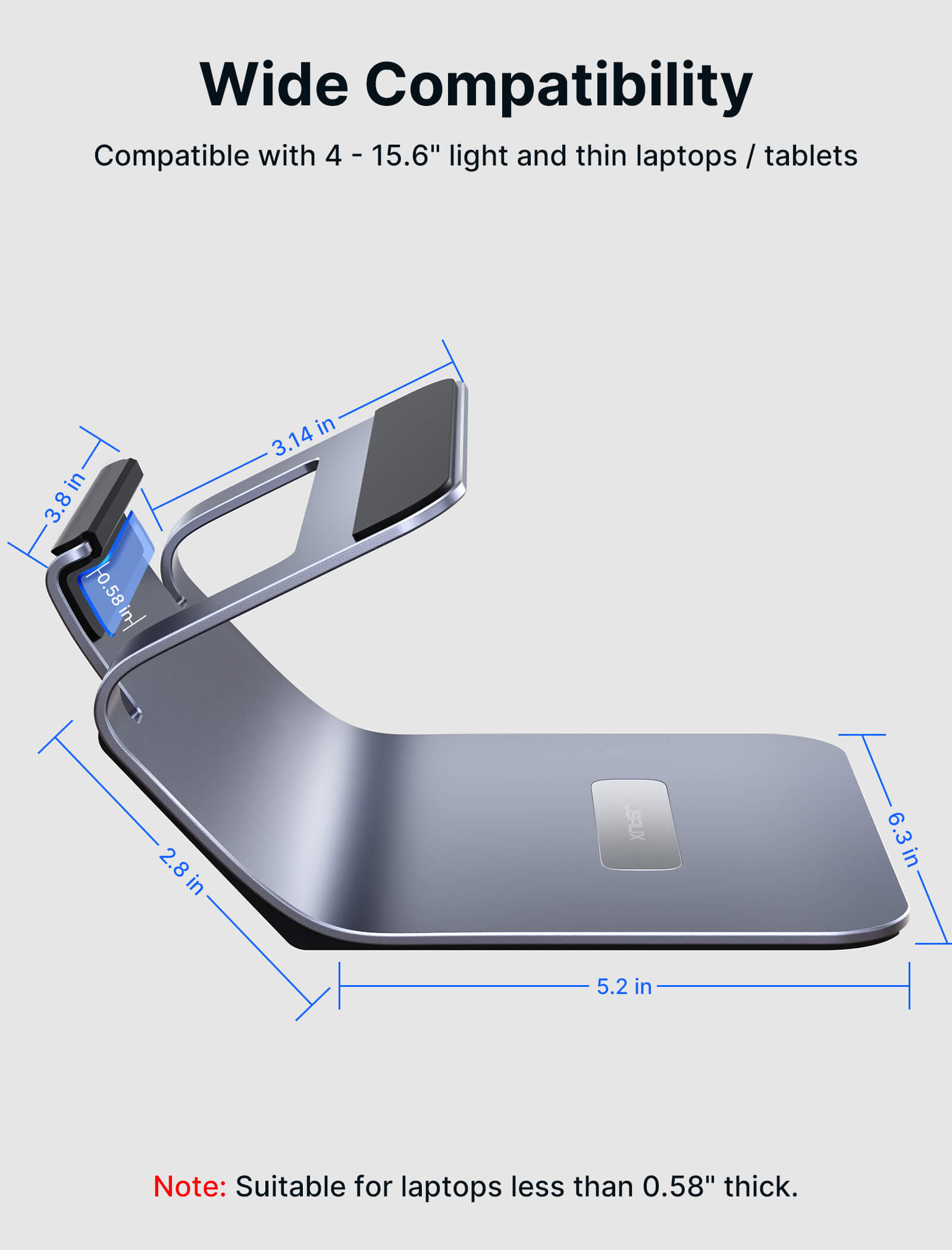

  • 二合一笔记本电脑和平板电脑支架 SL0206: 只需轻轻一推或一拉,即可轻松切换笔记本电脑和平板电脑模式。搭配我们的 OmniCase 2 使用。
  • 注意: 📢如果您的扩展坞出现任何操作问题,请确保您的 USB-C 线缆已正确连接到指定的“IN-USB-C”端口。我们强烈建议您使用随附的 USB-C 线缆与您的设备建立连接,以确保最佳功能。如果您选择使用其他 USB-C 线缆,请确保其符合 USB-C 3.2 标准。

SPECS

SPECS
Model

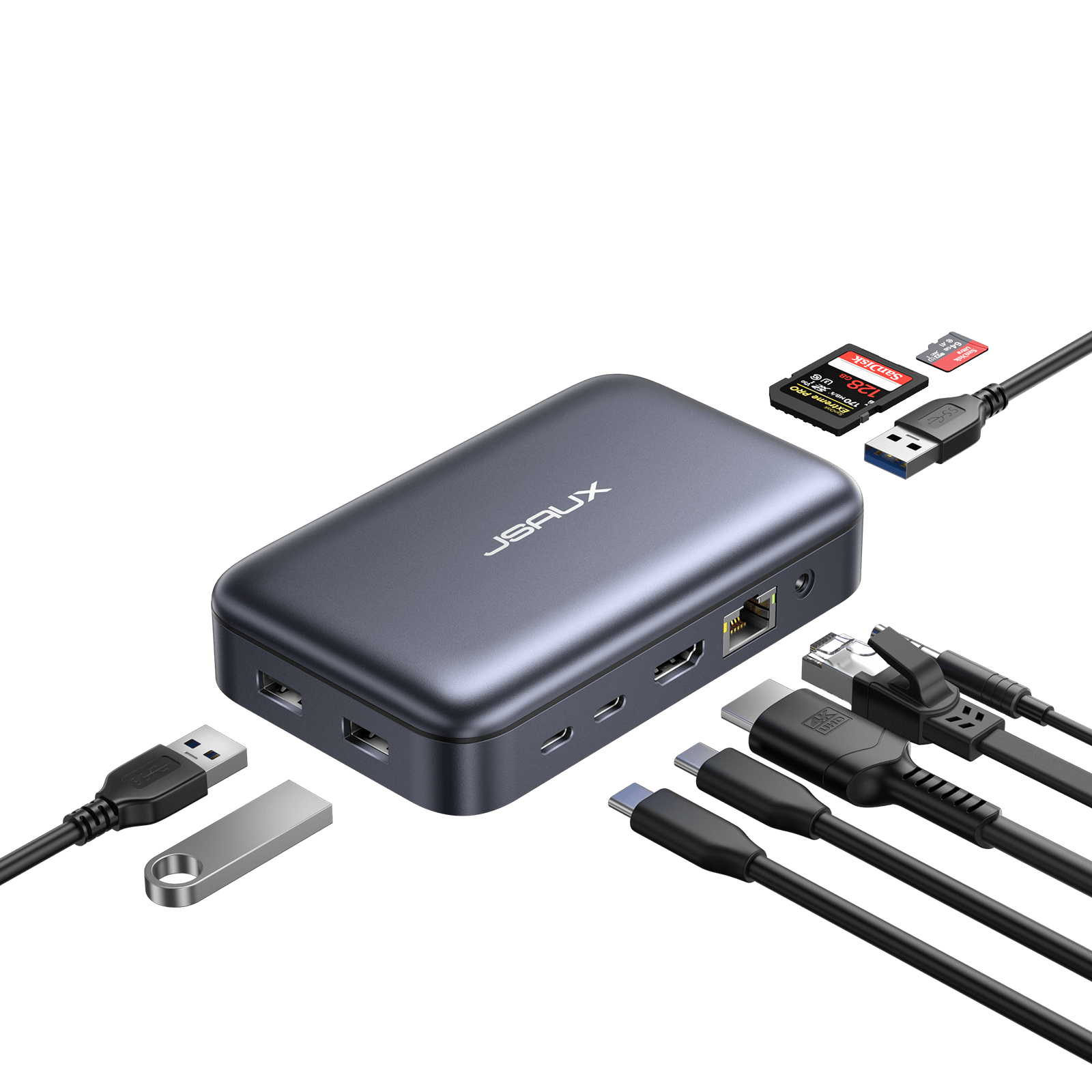

OmniCase 2 (MP03)

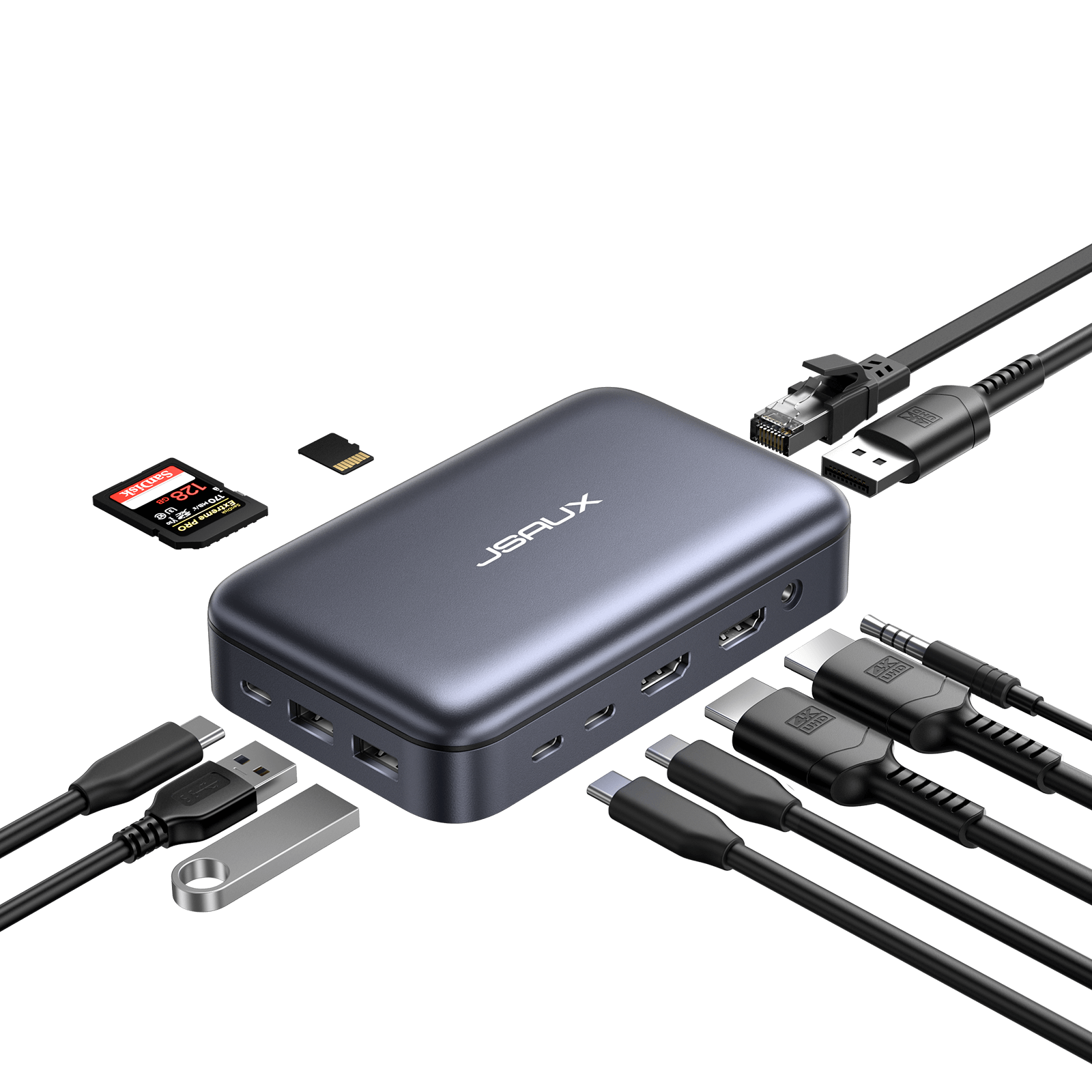

OmniCase 2 Pro (MP04)

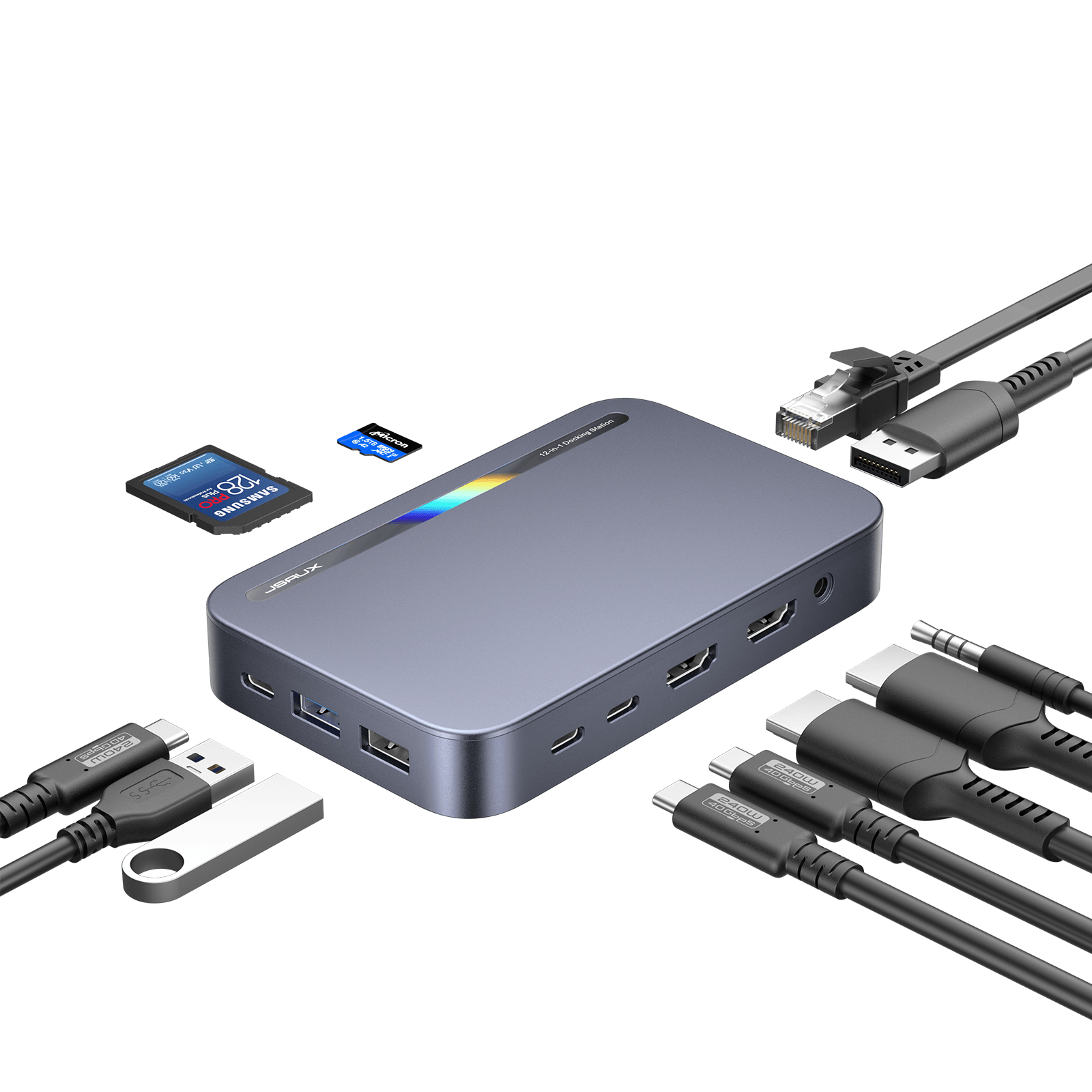

OmniCase 2 Lite+ (MP04L)

Material

Aluminum alloy+ABS&PC

Aluminum alloy+ABS&PC

Size

126(L)×78(W)×26(H) mm

OmniCase 2 Pro (MP04): 126(L)×78(W)×26(H) mm

OmniCase 2 Lite+ (MP04L): 126(L)*88((W)*25.6(H)mm

Weight

about 229g

OmniCase 2 Pro (MP04): about 237.5g

OmniCase 2 Lite+ (MP04L): about 365g

Parameters

HDMI: Support 4K@60Hz output, 18Gbps broadband.
USB-A 3.0:Support data transmission 5Gbps, 5V/1A output.
USB-A 2.0:Support data transmission 480Mbps, 5V/0.5A output.
Gigabit Ethernet port: Supports 1000M input broadband.
USB C-PD port: Support PD power supply (maximum support 100W).
3.5mm audio interface: Support American Standard Headphones.
SD/TF: Support data transmission 5Gbps..
IN: USB-C Port:Support data transmission 10Gbps.

HDMI: Support 4K@60Hz output, 18Gbps broadband.
USB-A 3.0:Support data transmission 5Gbps, 5V/1A output.
USB-A 2.0:Support data transmission 480Mbps, 5V/0.5A output.
Gigabit Ethernet port: Supports 1000M input broadband.
USB C-PD port: Support PD power supply (maximum support 100W).
3.5mm audio interface: Support American Standard Headphones.
SD/TF: Support data transmission 10Gbps.
DisplayPort: Support 4K@60Hz output, 21.6Gbps.
USB C 3.0port: Support data transmission 5Gbps.
IN: USB-C Port.:Support data transmission 10Gbps.

List

OmniCase 2 Includes MP03*1, USB-C to USB-C 3.2 cable*1, USB-C to USB micro-B adapter*1, USB-C Female to USB-A male adapter*1,90° female-to-male USB-C adapter*1, Ejector pin tool*1.

OmniCase 2 Pro Includes MP04*1, USB-C to USB-C 3.2 cable*1, USB-C to USB micro-B adapter*1, USB-C Female to USB-A male adapter*1,90° female-to-male USB-C adapter*1, Ejector pin tool*1.

OmniCase 2 Lite+ Includes MP04L*1, USB C-USB C 4.0 5A cable.

SHIPPING

SHIPPING & RETURN

下订单前请仔细阅读我们的运输提示

  • 所有超过 50 美元的订单均可免费送货。
  • 低于 49.99 美元的订单将收取 6.99 美元的运费。

(注:以上运费政策不适用于FlipGo,具体运费详情请参考FlipGo产品页面。)

    请注意:

    • JSAUX GAMING 为全球客户提供快捷、高效的配送服务。(但军事地址(APO/FPO)及部分岛屿无法配送产品。)
    • 目前所有订单的处理时间为 2-4 天(周末不处理订单)。
    • 订单交付时间为 7-12 个工作日(预售商品除外)。
    • 可能需要缴纳国际关税和税款,且不会在结账时计算。
    • 预售商品发货时间以商品页面指示为准。

    由于物流服务商的要求:

    • 为了尽快准备好您的订单并避免运输问题,请确保输入准确的邮政地址,包括您的确切门牌号以及送货公司可能需要的任何其他信息。
    • 中国大陆及台湾地区:中国大陆顾客请使用天猫下单。香港、澳门顾客请使用繁体中文填写姓名、身份证号码及收货地址。
    • 沙特阿拉伯:超过 50 美元的订单不提供免费送货服务。运费为 14.99 美元(含增值税)。
    • 由于物流原因,我们暂时不向以下国家和地区提供订单服务:阿富汗、阿尔巴尼亚、阿尔及利亚、安道尔、安哥拉、安圭拉、阿根廷、亚美尼亚、阿鲁巴、阿塞拜疆、巴林、孟加拉国、巴巴多斯、白俄罗斯、百慕大、不丹、波斯尼亚和黑塞哥维那、巴西、英属维尔京群岛、文莱、布基纳法索、布隆迪、玻利维亚、柬埔寨、喀麦隆、开曼群岛、中非共和国、中国、圣诞岛、哥斯达黎加、科特迪瓦、吉布提、刚果-布拉柴维尔、刚果-金沙萨、埃及、萨尔瓦多、厄瓜多尔、福克兰群岛、法罗群岛、法属波利尼西亚、加蓬、冈比亚、格鲁吉亚、加纳、直布罗陀、格陵兰岛、瓜德罗普岛、危地马拉、根西岛、几内亚、洪都拉斯冰岛、印度尼西亚、以色列、牙买加、约旦、泽西岛、哈萨克斯坦、肯尼亚、基里巴斯、吉尔吉斯斯坦、黎巴嫩、莱索托、利比里亚、列支敦士登、马尔代夫、毛里求斯、马提尼克岛、摩尔多瓦、摩纳哥、蒙古、黑山、缅甸、纳米比亚、瑙鲁、新喀里多尼亚、尼加拉瓜、尼日尔、尼日利亚、诺福克岛、北马其顿、挪威、阿曼、巴基斯坦、巴拉圭、卢旺达、圣马力诺、塞内加尔、塞尔维亚、塞舌尔、所罗门群岛、南苏丹、斯里兰卡、苏丹、塔吉克斯坦、多哥、汤加、突尼斯、土库曼斯坦、图瓦卢、乌干达、乌克兰、乌拉圭、印度、乌兹别克斯坦、瓦努阿图、梵蒂冈城、美国部分地区(包括波多黎各、关岛、美属维尔京群岛、北马里亚纳群岛、美属萨摩亚以及军事基地,如 APO, FPO 和 DPO)。

    15天退货:

    我们的退换货政策自您收到商品之日起15天内有效。更多信息,请访问我们的“配送政策”部分。
