Notes:

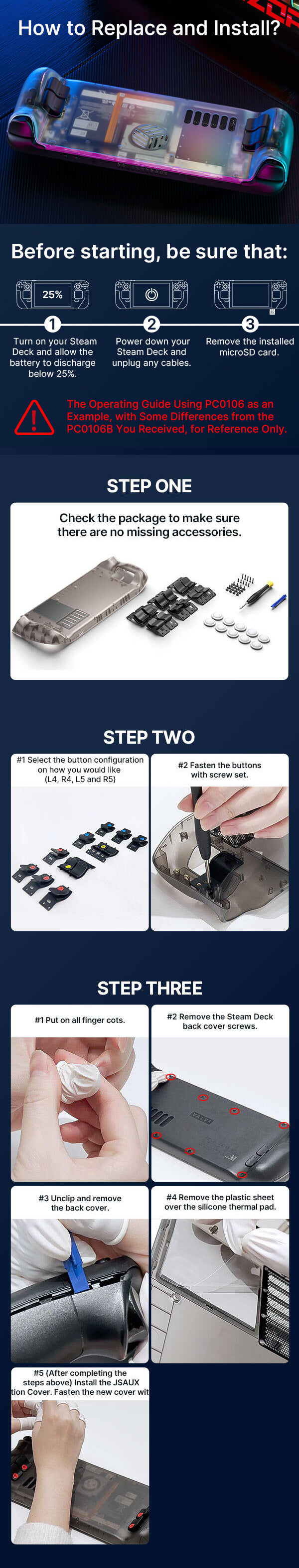

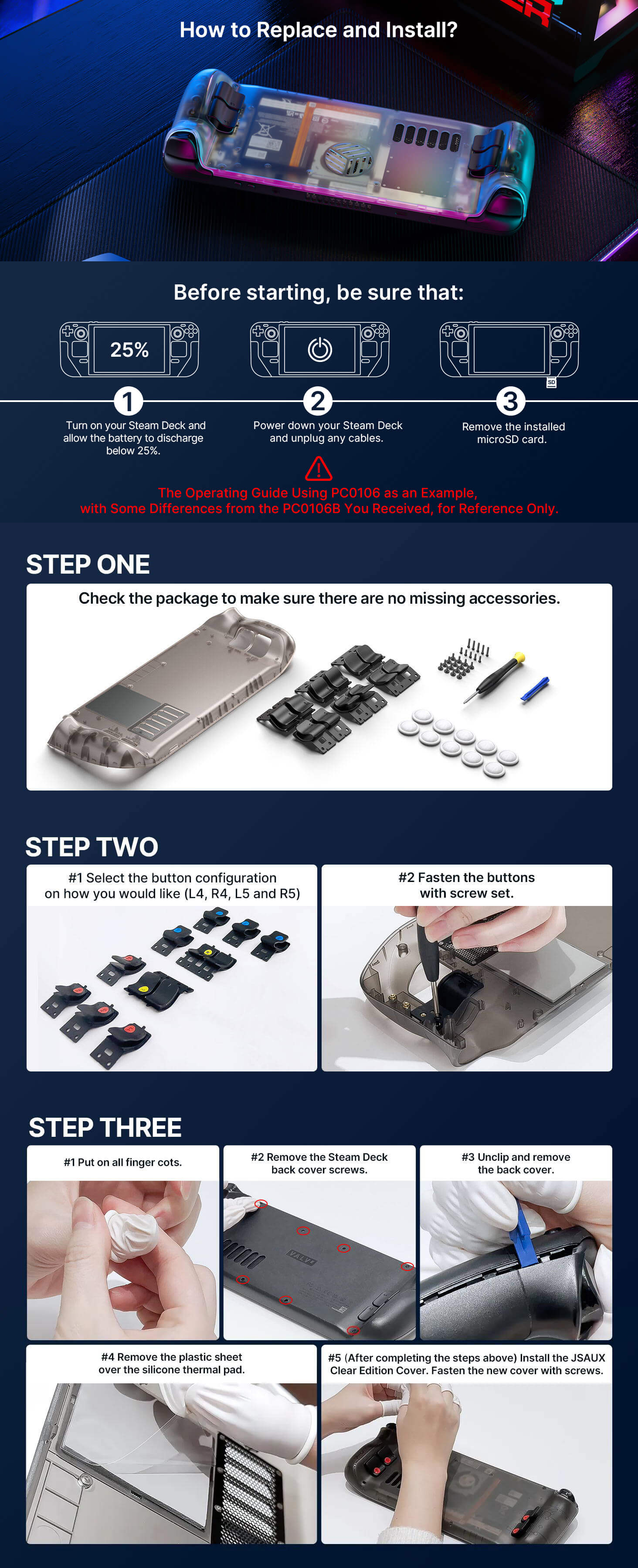

Instructions for using screws and screwdriver heads for the RGB & Vents Back Plate (for OLED):
1. Do not mix screws and screwdriver heads to avoid stripping or damaging the equipment.
2. For the OLED version back plate, please use Torx CM1.6*5mm screws. When removing the back plate screws, use a Torx screwdriver head. (Remove the screwdriver tail cap to access the Torx head, loosen the knob to switch heads).
3. For the LCD version back plate, please use CM1.65mm and CB1.69mm screws. When removing the back plate screws, use a Phillips screwdriver head.
This product is available in Back Plate RGB ver. and Back Plate Vents ver., please choose the version that suits your needs.

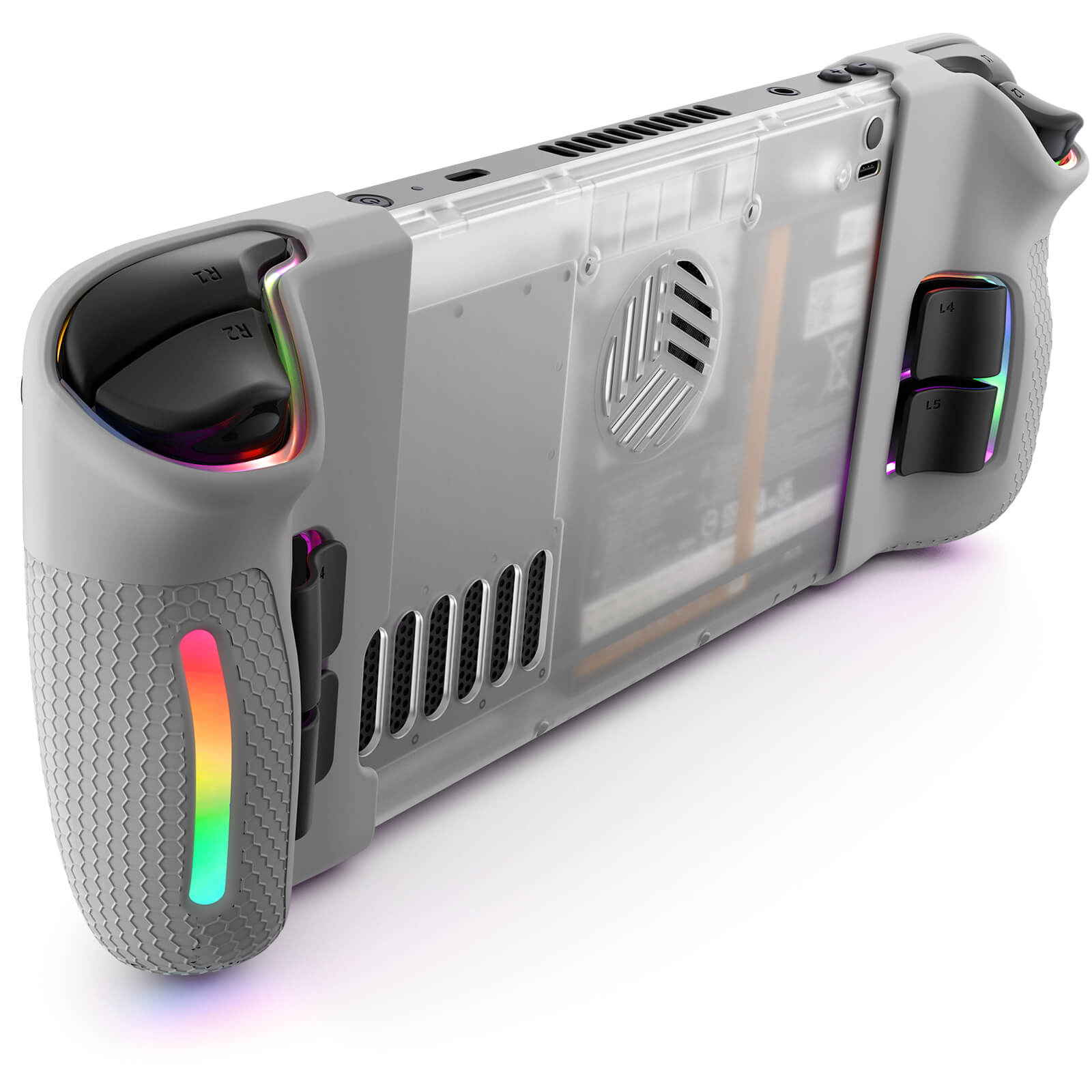

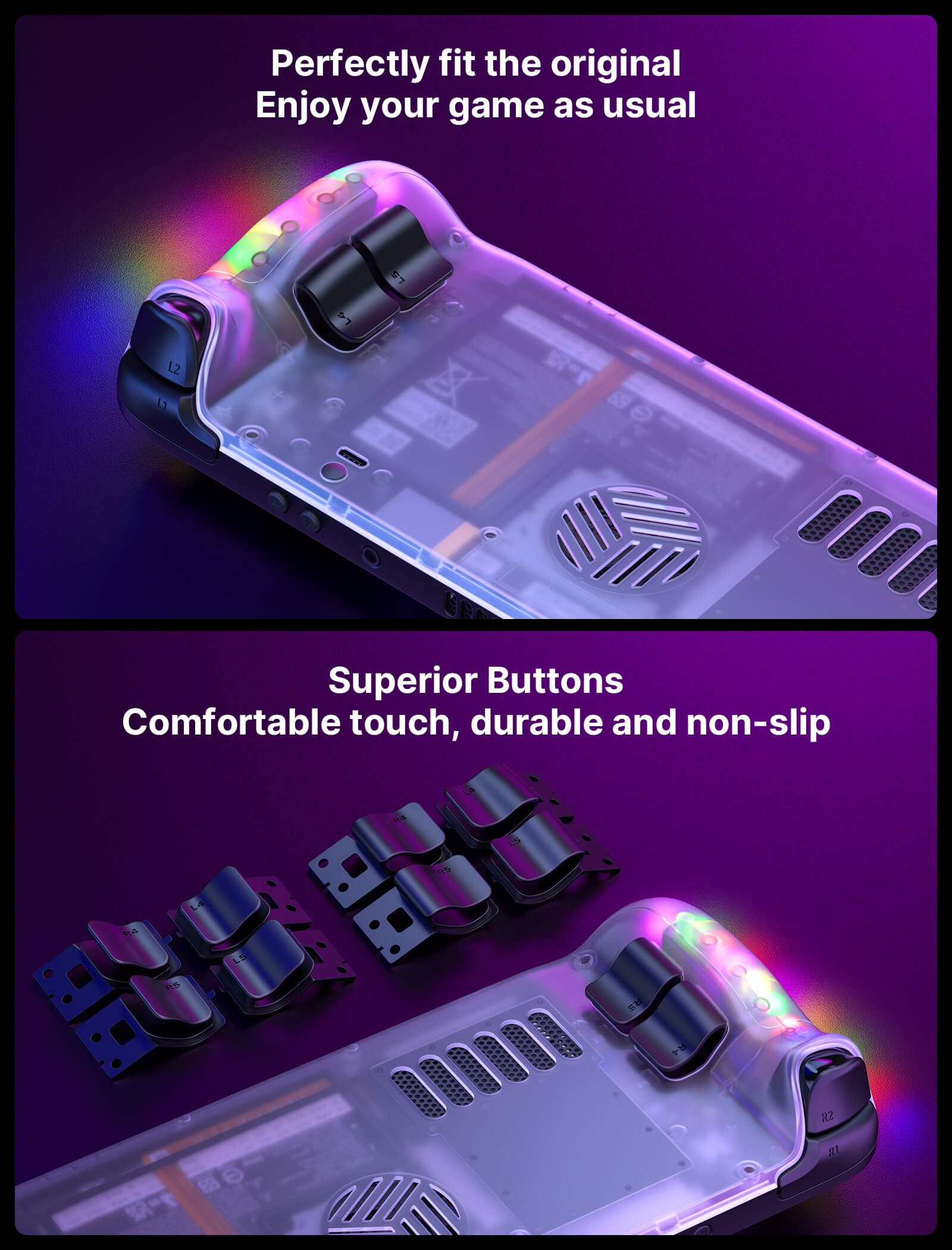

RGB Ver. (for LCD)

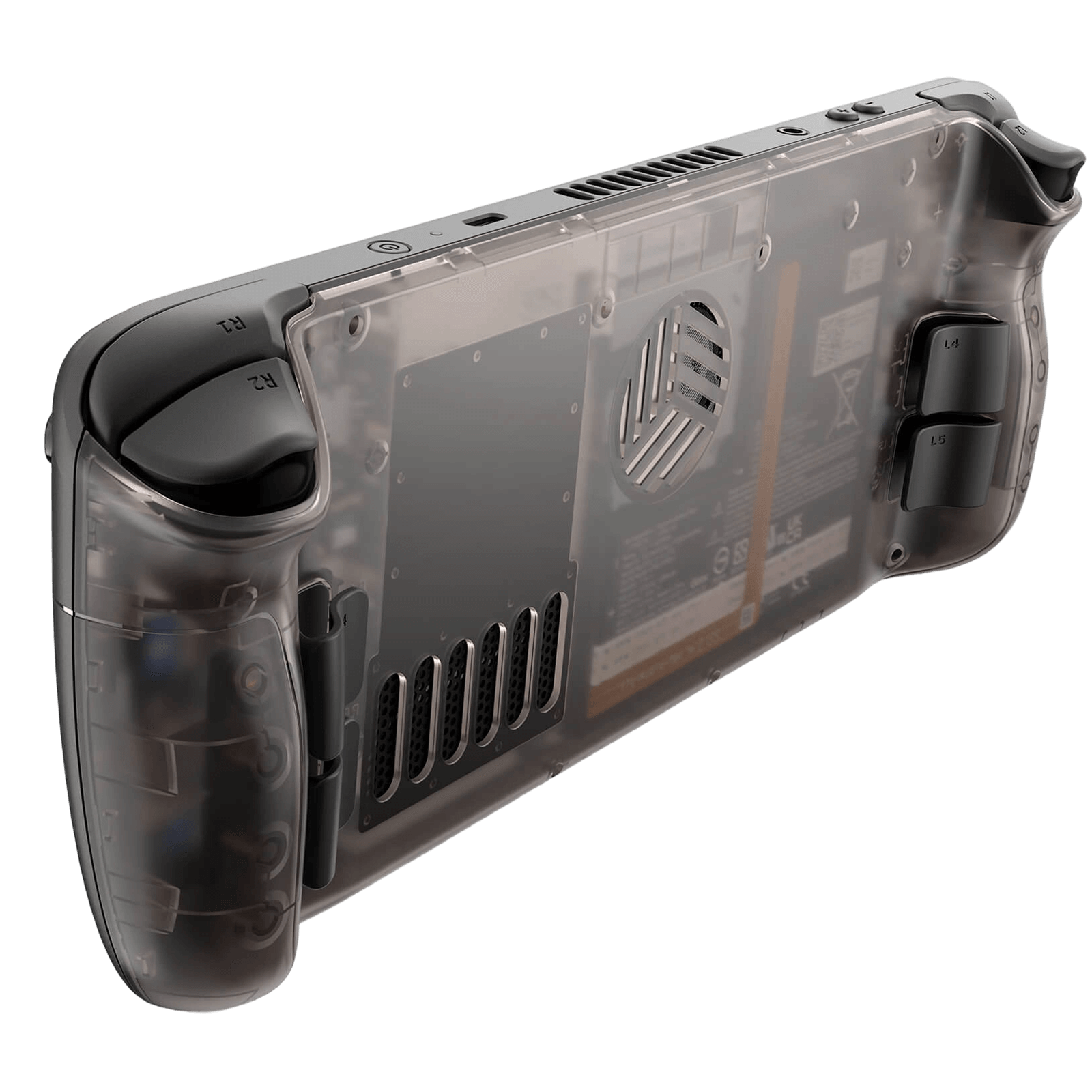

Vents Ver. (for LCD)
PC + Aluminum alloy
ABS + PC + Aluminum alloy
302mm (L) x 120mm (W) x 43mm (H)
150mm (L) x 117mm (W) x 32mm (H)
About 187.5g
About 126g
150mAh built-in lithium battery powers the RGB lights

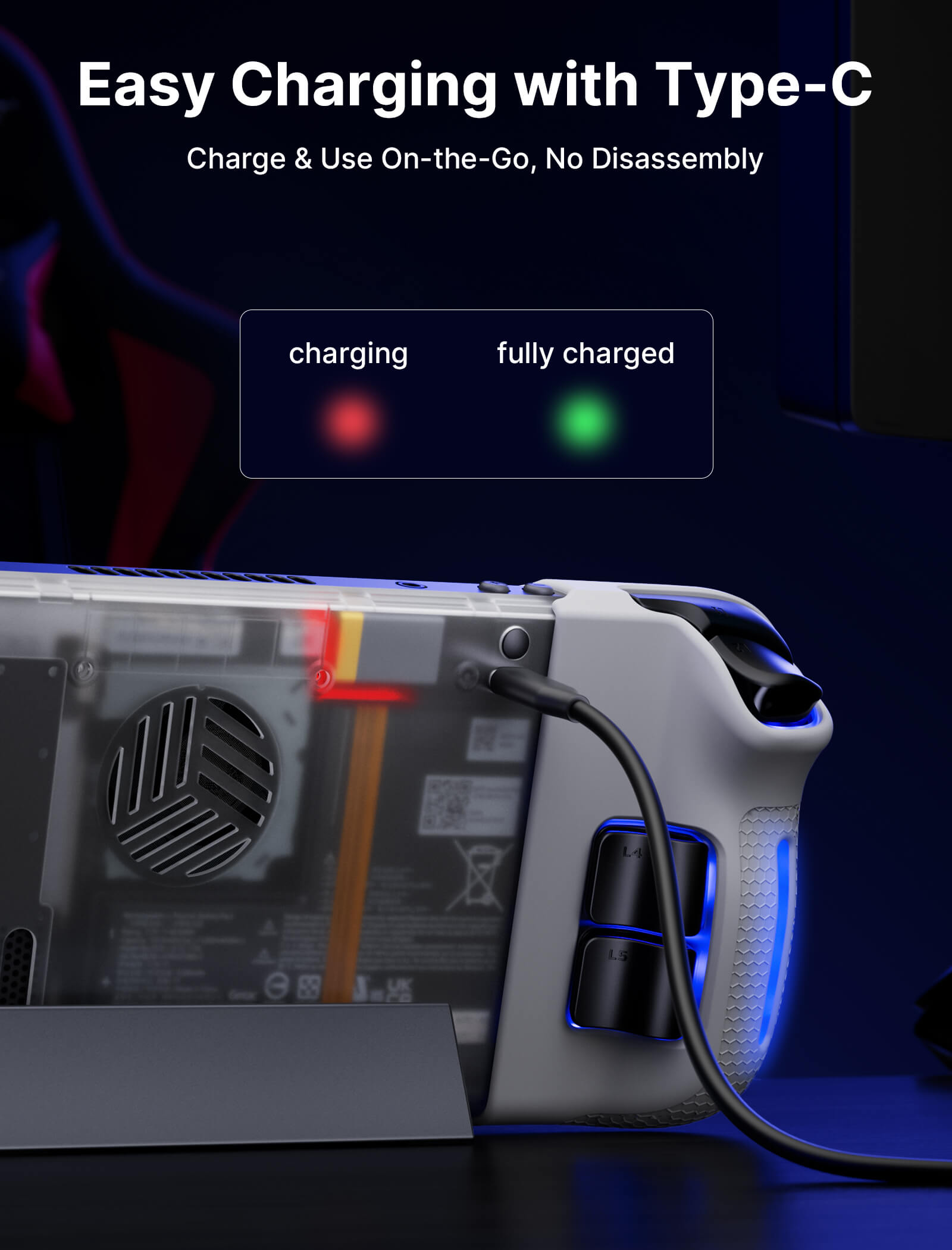

Type-C easy charging
Battery life is about 2-5 hours (the battery life is different in each mode)
It supports charging while using
no battery(no RGB)

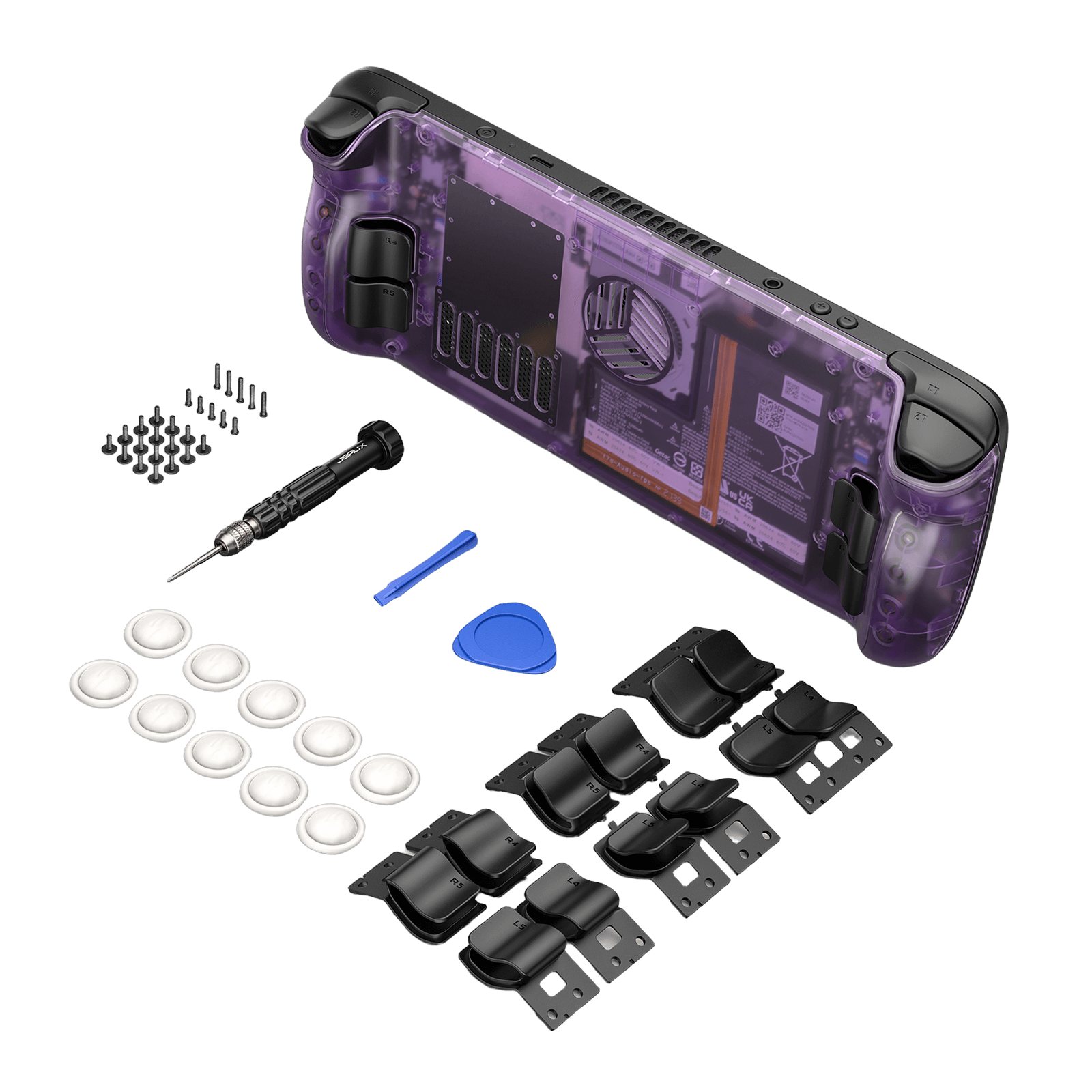

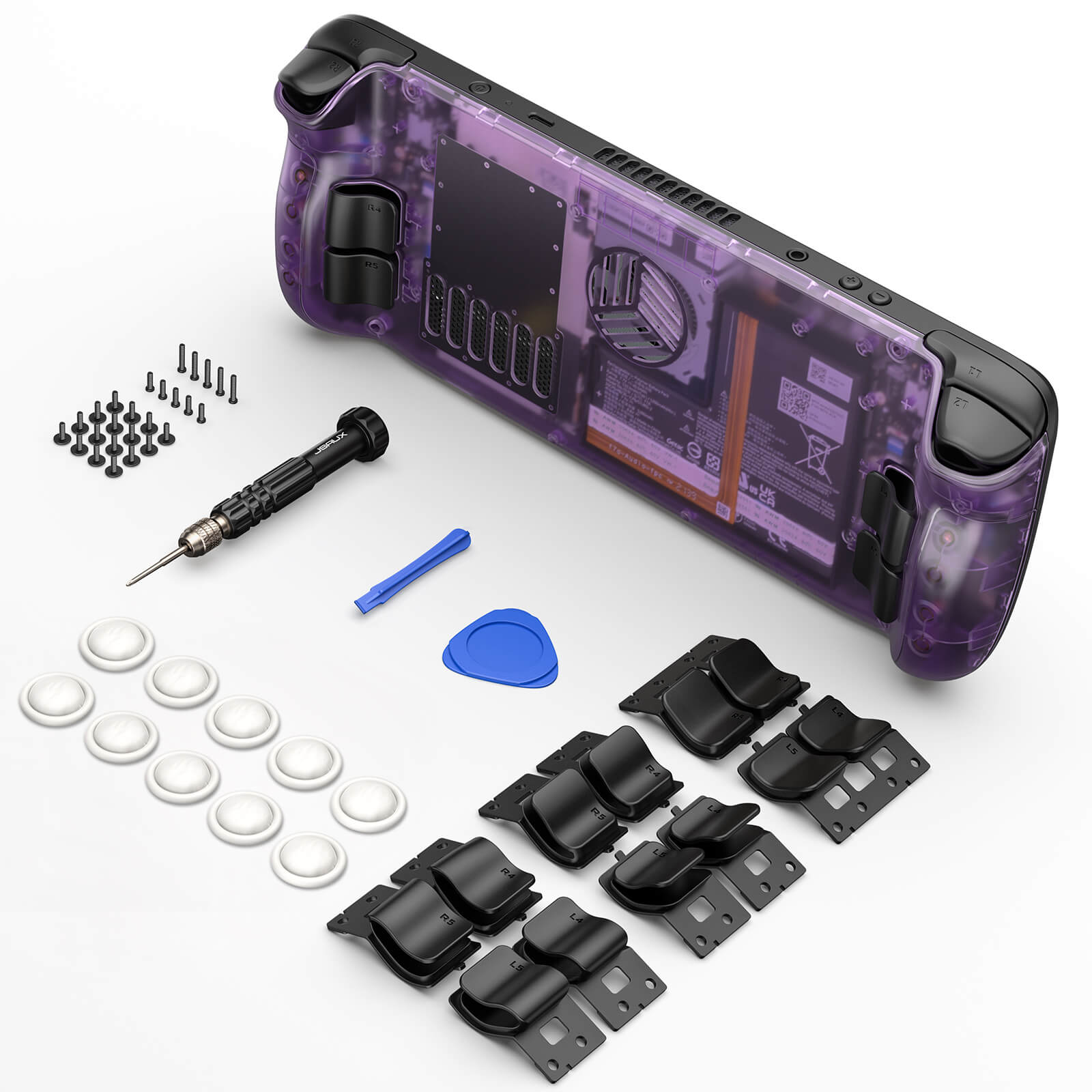

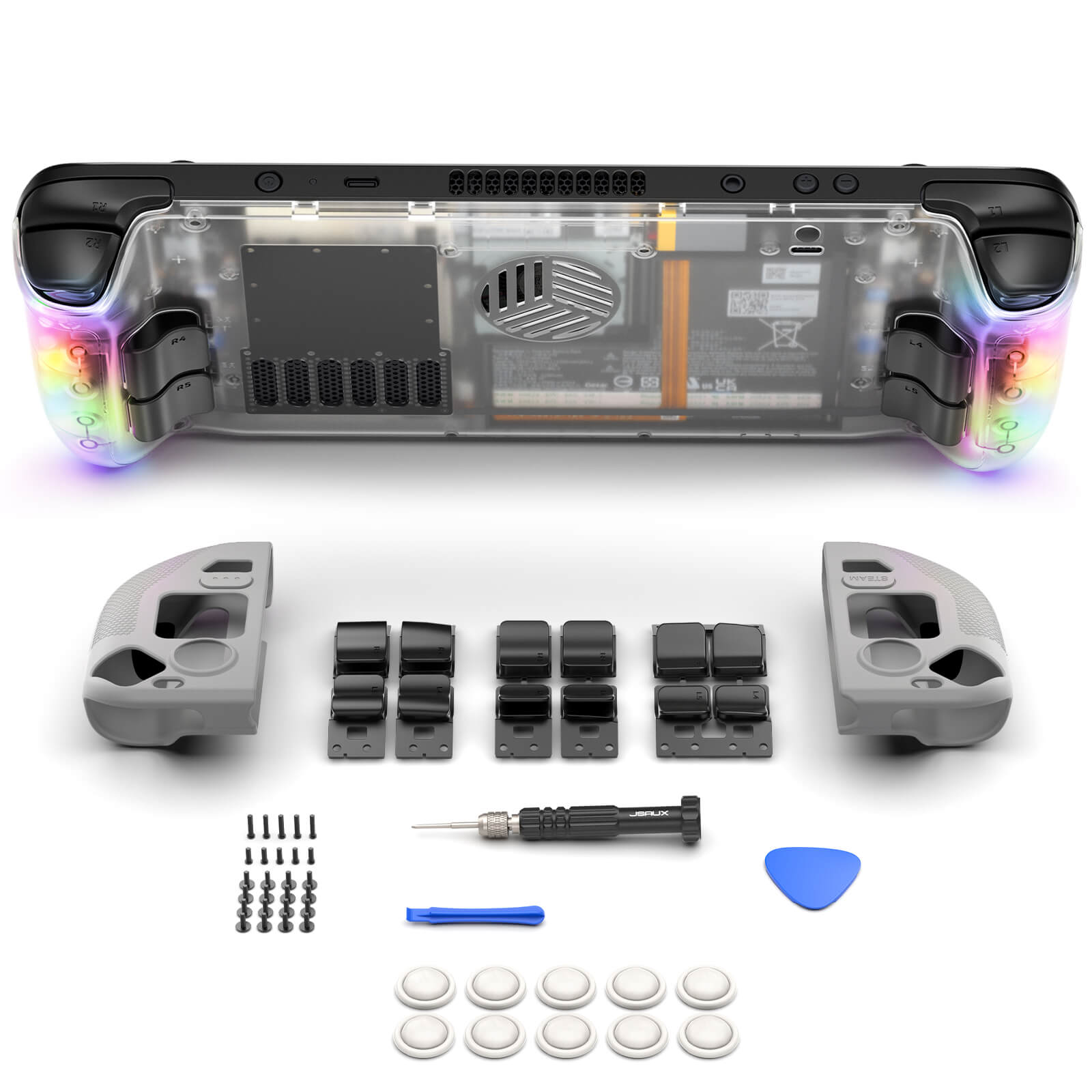

x1 Transparent back plate
x2 Silicone grip
x1 Screwdriver
x1 Disassembler stick
x1 Disassembly Film
x1 Thermal grease (already attached to the back plate)
x4 Original edition buttons
x4 Lower buttons
x4 Higher buttons
x16 Button screws
x10 Back plate screws
x10 Anti-static finger gloves

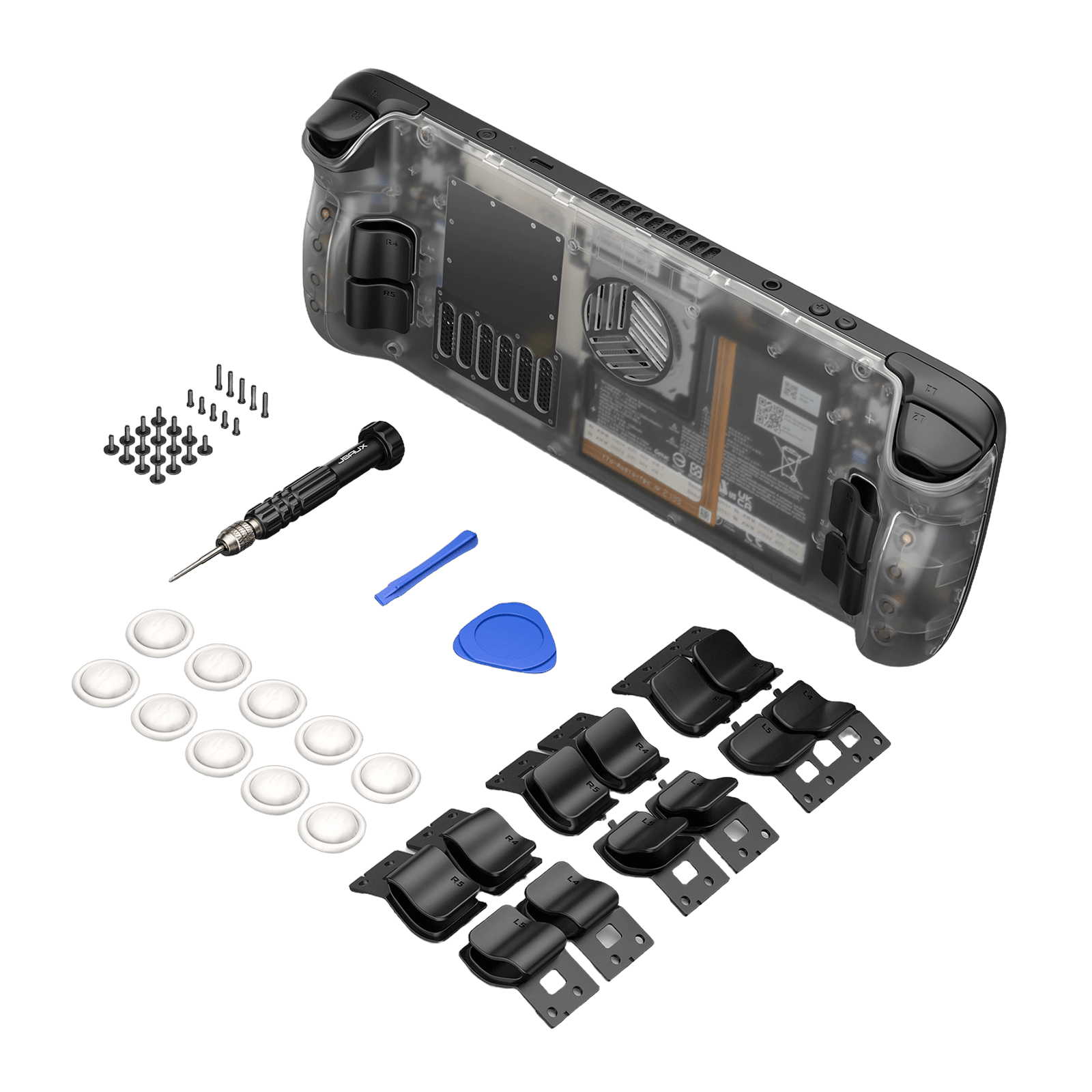

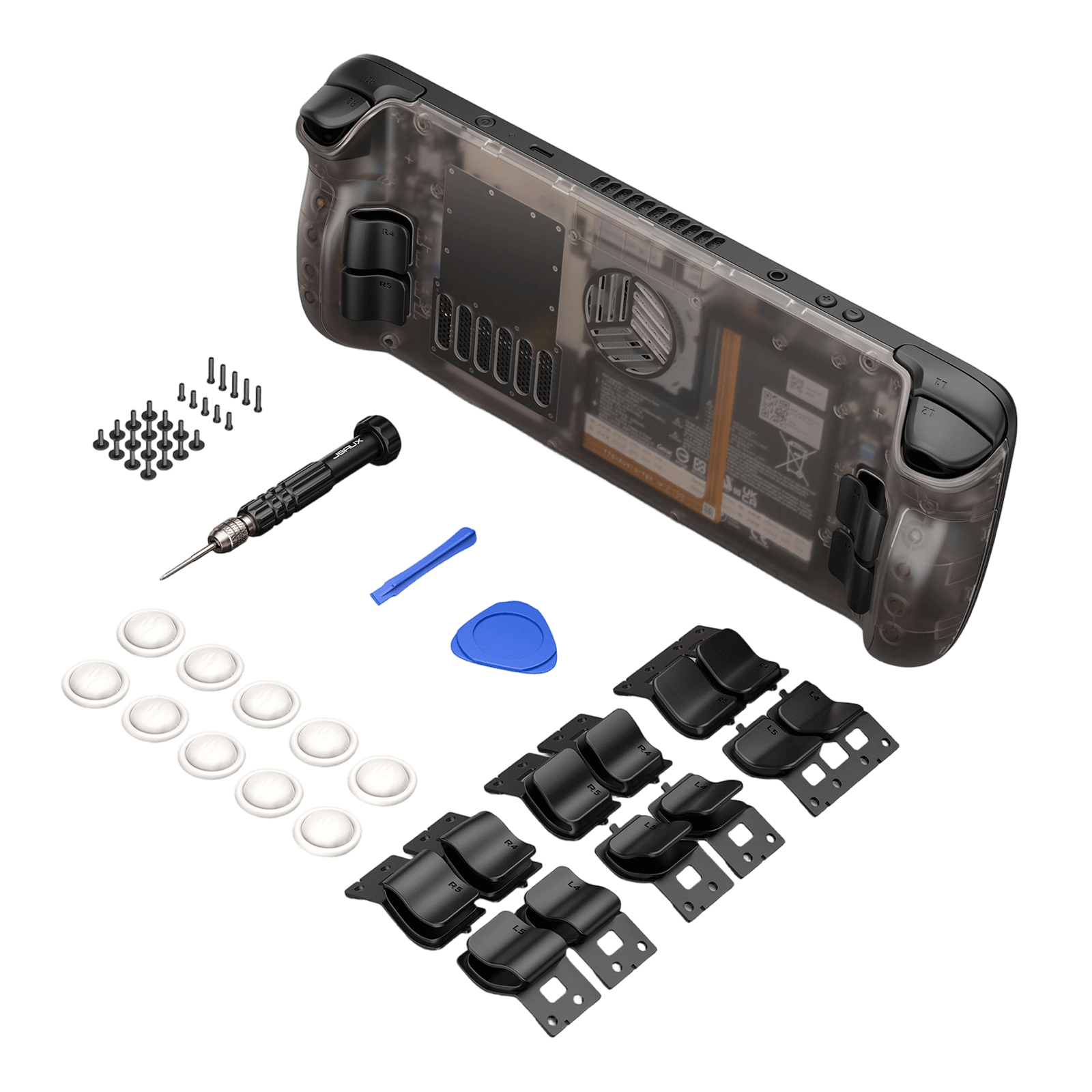

x1 Transparent back plate
x1 Screwdriver
x1 Disassembler stick
x1 Thermal grease (already attached to the back plate)
x4 Original edition buttons
x4 Lower buttons
x4 Higher buttons
x16 Button screws
x10 Back plate screws
x10 Anti-static finger gloves.
RGB Ver. (for OLED)

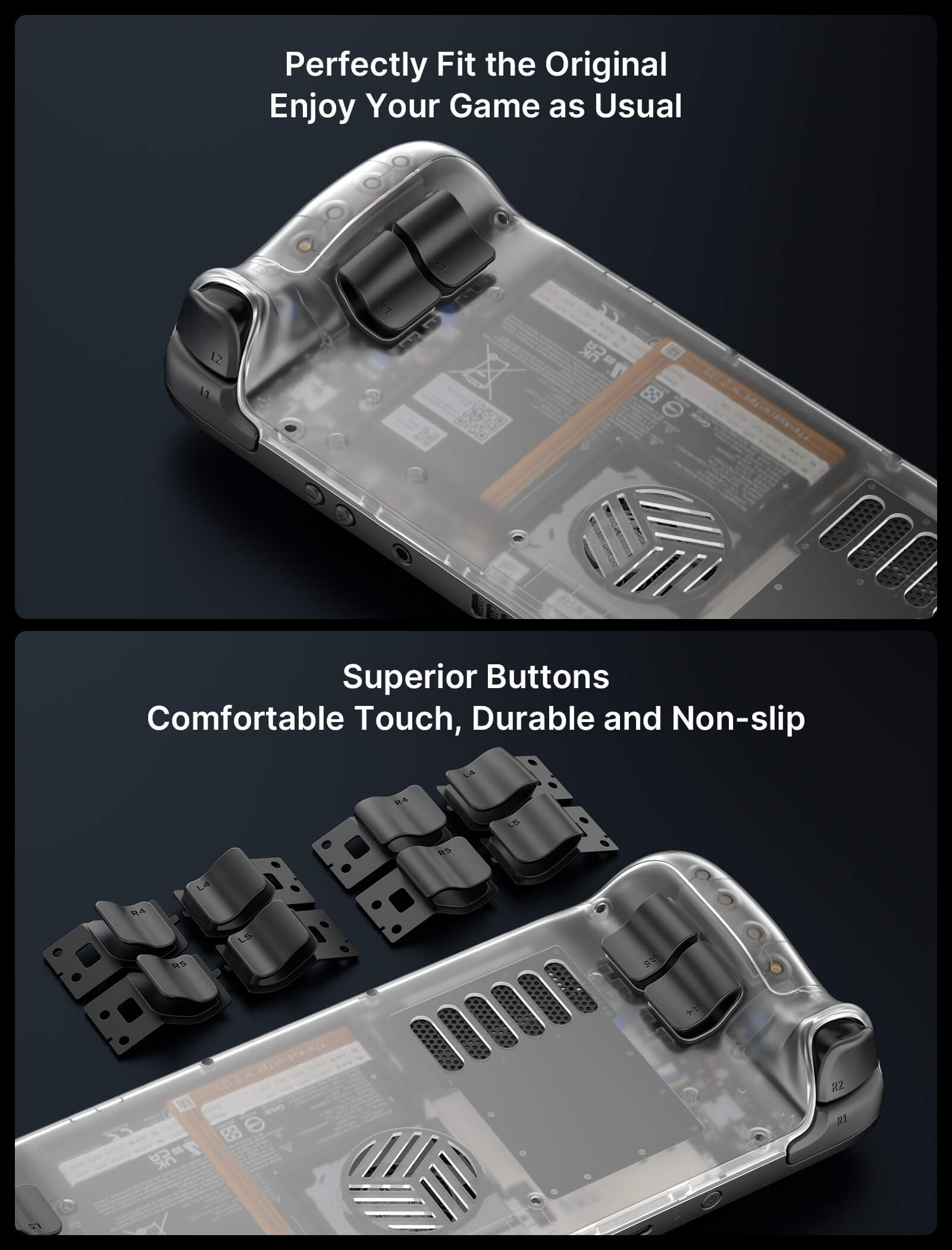

Vents Ver. (for OLED)
PC + Aluminum alloy
ABS + PC + Aluminum alloy
302mm (L) x 120mm (W) x 43mm (H)
150mm (L) x 117mm (W) x 32mm (H)
About 187.5g
About 126g
150mAh built-in lithium battery powers the RGB lights
Type-C easy charging
Battery life is about 2-5 hours (the battery life is different in each mode)
It supports charging while using
no battery(no RGB)
x1 Transparent back plate
x2 Silicone grip
x1 Screwdriver
x1 Disassembler stick
x1 Disassembly Film
x1 Thermal grease (already attached to the back plate)
x4 Original edition buttons
x4 Lower buttons
x4 Higher buttons
x8 Button screws
x10 Back plate screws
x10 Plum blossom head screws
x10 Anti-static finger gloves

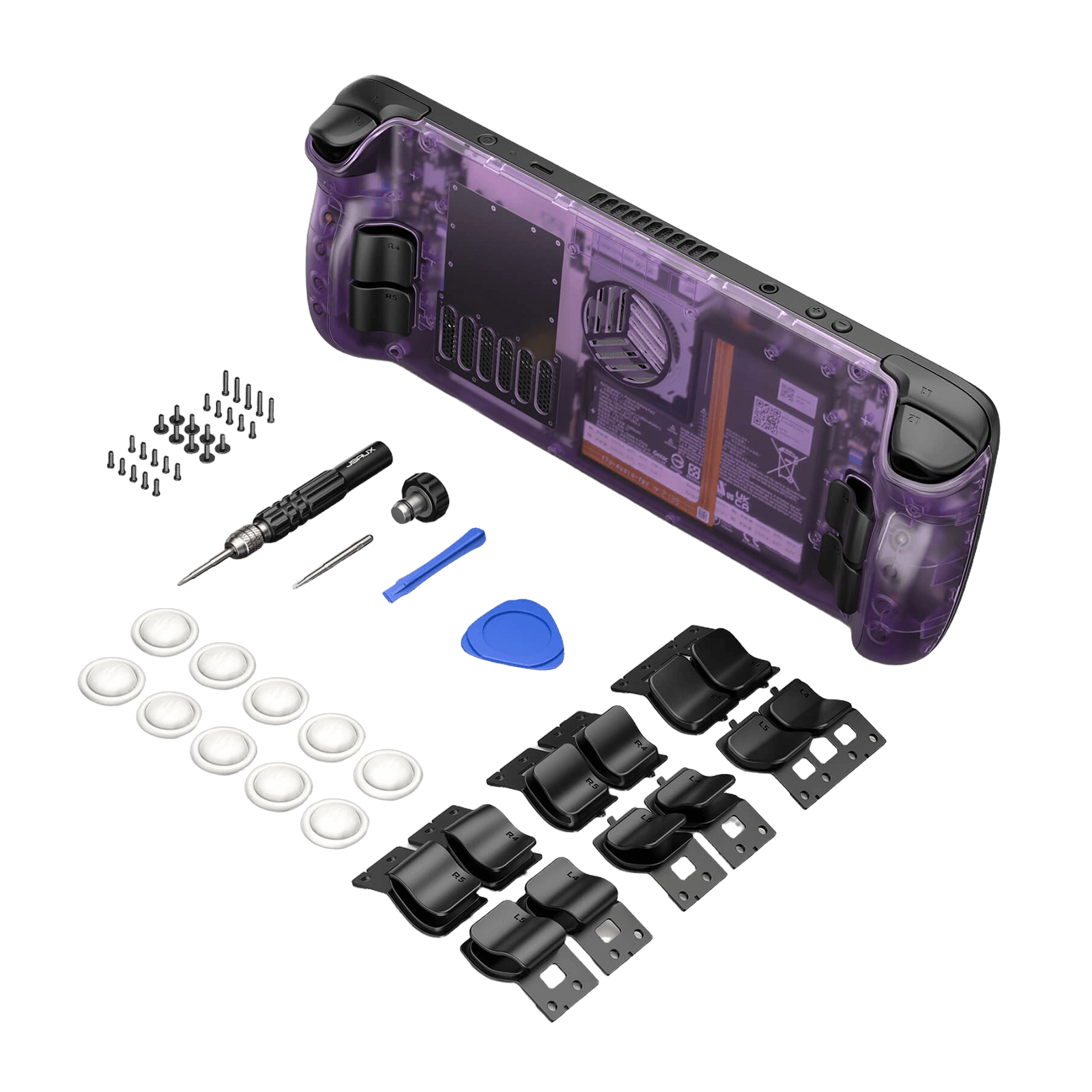

x1 Transparent back plate
x1 Screwdriver
x1 Disassembler stick
x1 Thermal grease (already attached to the back plate)
x4 Original edition buttons
x4 Lower buttons
x4 Higher buttons
x8 Button screws
x10 Plum blossom head screws
x10 Back plate screws
x10 Anti-static finger gloves.
Please read our shipping tips carefully before you place your order
(Note: The above shipping policy does not apply to FlipGo. Please refer to the FlipGo product page for specific shipping details.)
Please Note:
Due to the requirements of logistics service providers:
15-Days RETURN:
Our return & exchange policy will be active for 15 days from the very same day you receive your product(s) at home. For more information, please visit our Shipping Policy section.
The RGB backplate is a stunning visual upgrade and a functional one.
it’s the first of it’s kind on the market.
The JSAUX RGB backplate is a game-changer. I loved its style and build quality. Yet, more importantly, I adored how easy it was to install the device.
PC0106A: RGB Back Plate(for LCD)
PC0106B: Vents Back Plate(for LCD)
PC0106C: RGB Back Plate(for OLED)
PC0106D: Vents Back Plate(for OLED)
PC0106: Back Plate
PC0108: Front Cover
✔
✔
✔
✔
✔
✘
✘
✘
✘
✘
✘
✔
✔
✔
✔
✔
✘
✘
✔
✘
✔
✘
✘
✘
Crystal
Crystal/ Purple/ Brown
Crystal
Crystal/ Purple
Crystal/ Purple/ Brown/ Red/ Blue/ Green
Crystal/ Purple/ Brown
✘
✘
✔
✔
✘
✘
Q1: Why is there only one crystal color and no other colors?
A1: Only one color is currently available. Due to the RGB light effect, only the crystal shell can completely pass through, and the shells of other colors can only pass through part of the light, resulting in poor light effect.

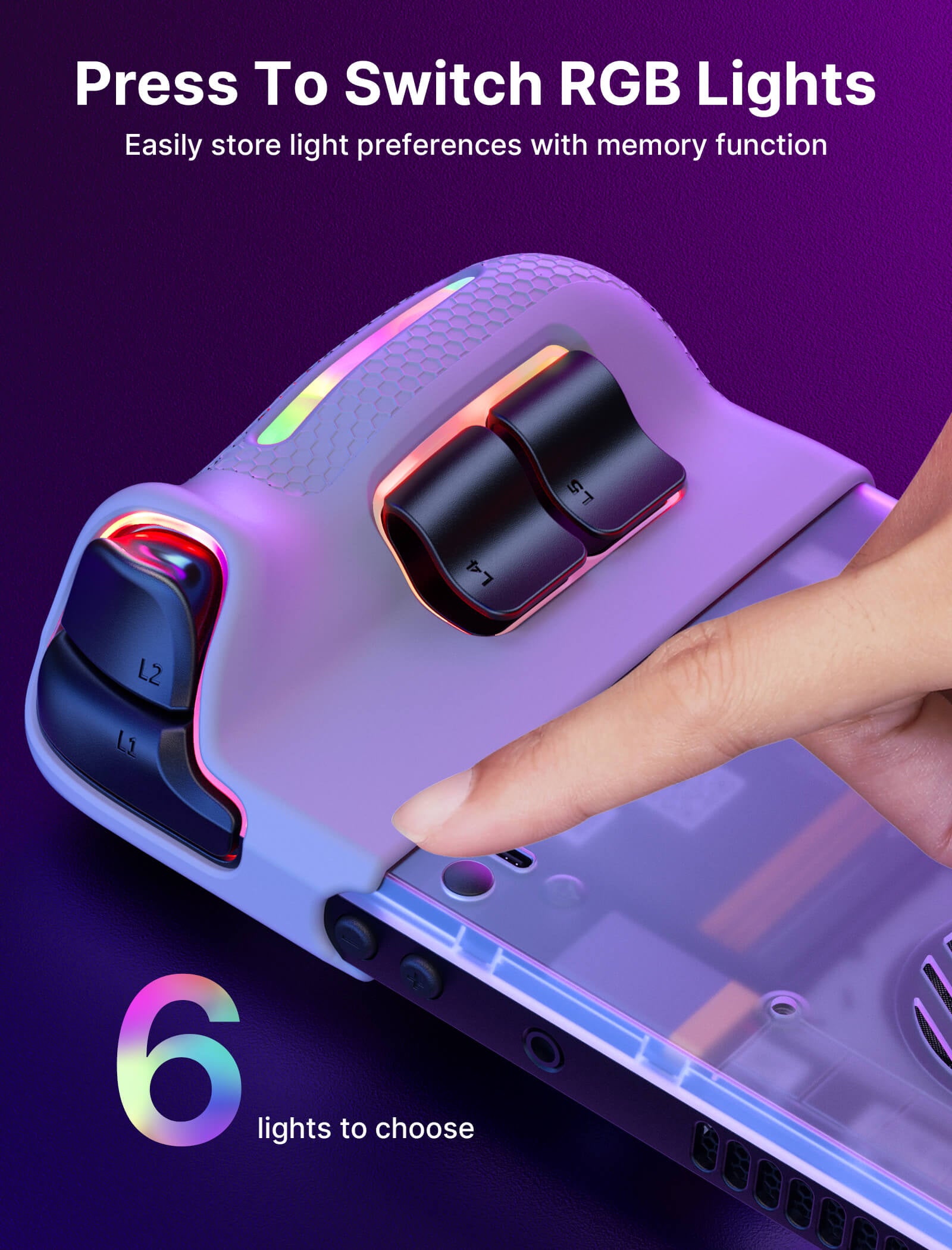

Q2: Can its RGB lighting effects be controlled only by buttons? Is it possible to set it up directly through the Steam deck?
A2: Yes, for the control of RGB lighting effects, the solution we currently provide is indeed controlled by physical buttons. Currently, it is not possible to set it directly through Steam Deck, but this design ensures that you can control the lighting effect conveniently and quickly at any time, regardless of whether Steam Deck is running or not.
Q3: Will its RGB lighting effect consume the battery of the Steam deck and affect the usage time?
A3: The RGB lighting has a built-in 150mAh lithium battery, please rest assured that it will not consume the power of the Steam deck itself when in use.

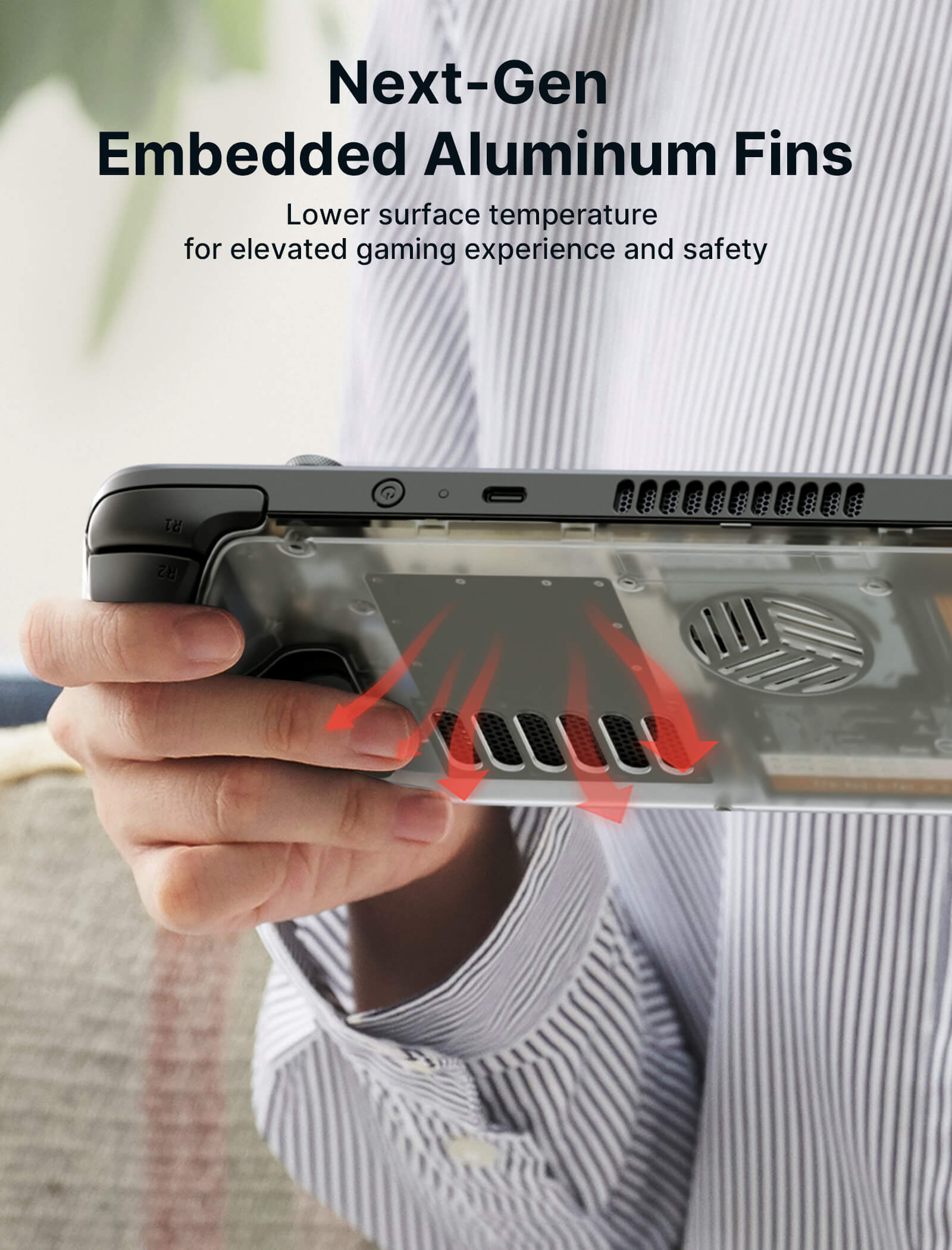

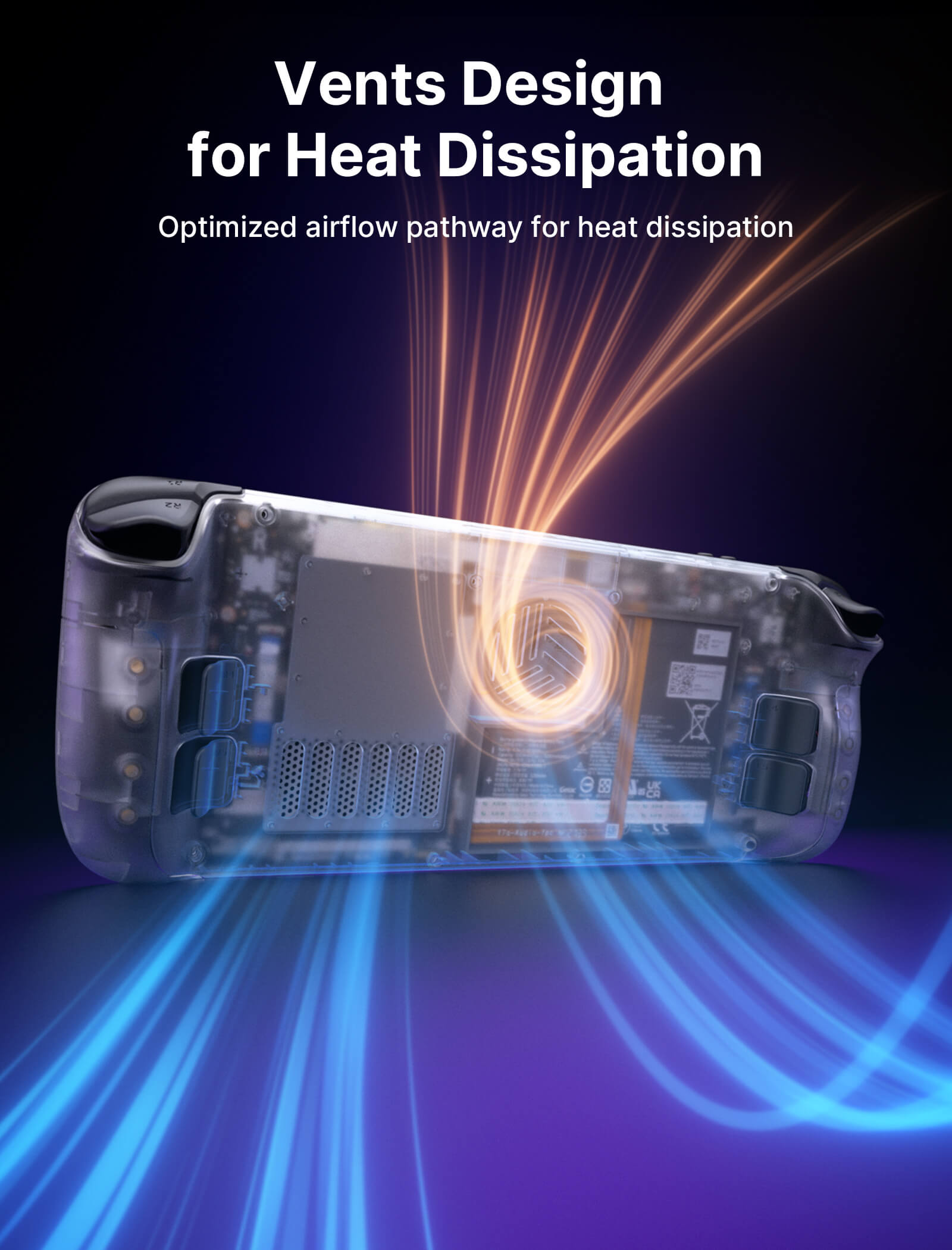

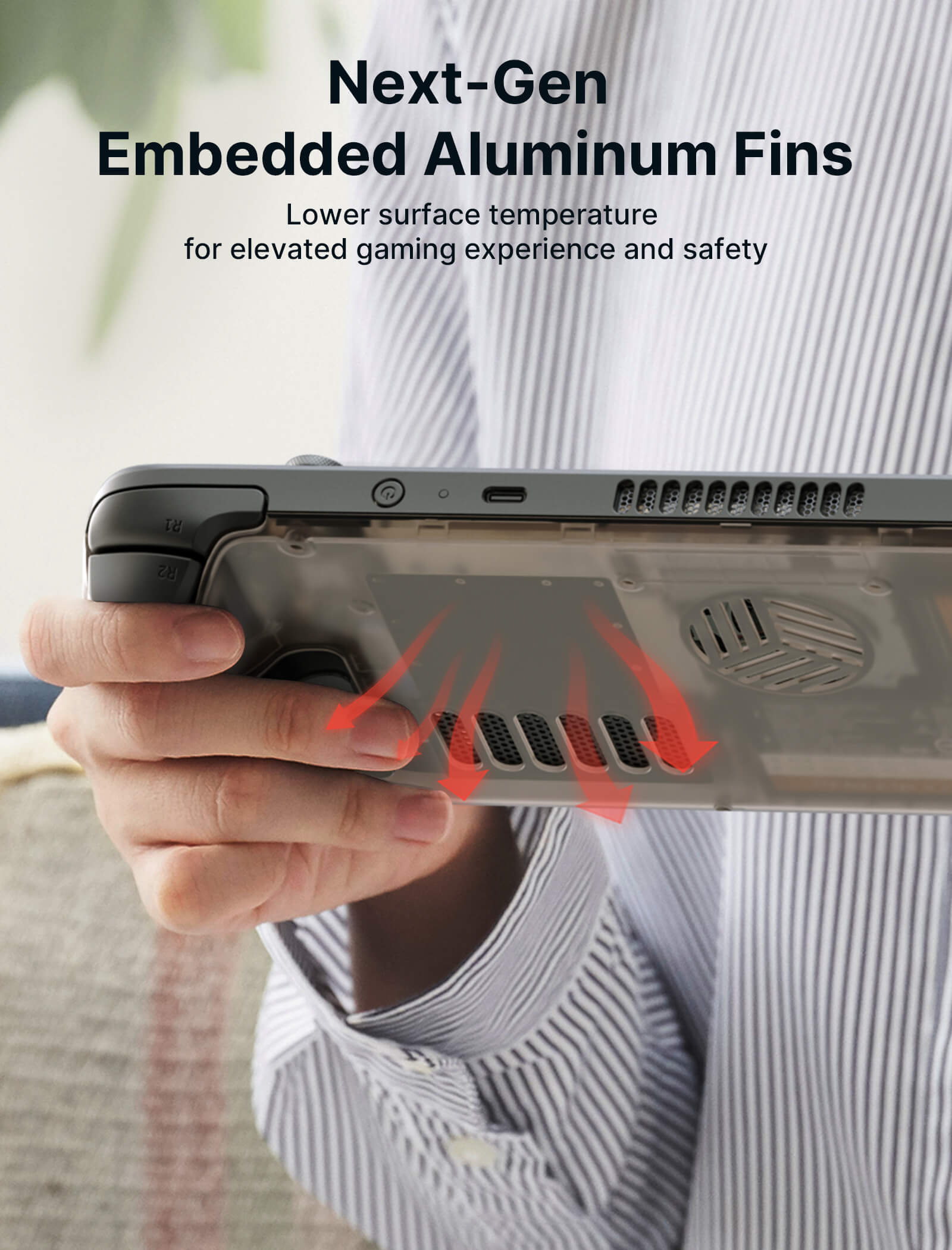

Q1:Will the open hole affect the original air duct of the original case, resulting in reduced cooling effect?
A1: Please don't worry, we specially considered the effect on the Steam Deck air duct when designing this transparent case.
The position of the opening is carefully selected to directly align with the air intake of the fan, which can shorten the air flow path and increase the air circulation speed, thereby accelerating the heat dissipation process. This design helps to remove the heat from the surface of the heat-conducting copper tube inside the Steam Deck faster, improving the operating efficiency of the device.
In order to keep the original heat dissipation air duct of the equipment unaffected, we used pre-cut silicone grease inside, and reserved a place for the original air intake. This ensures that the function of the original air intake is not disturbed, thus ensuring the air flow inside the device.

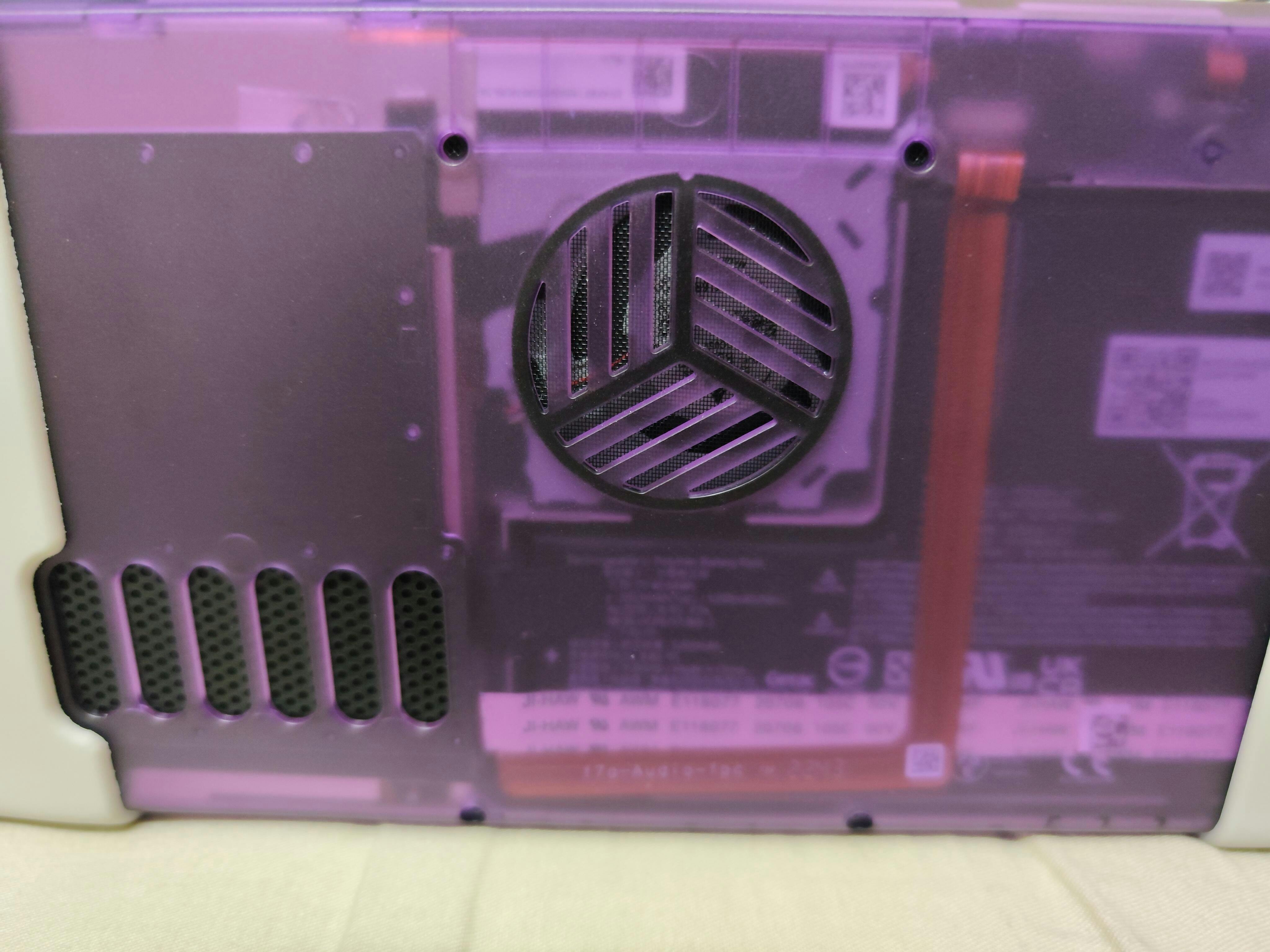

Q2: Will dust get in after opening the hole in the back of the Transparent Back Plate ?
A2: Please don't worry, we installed a 50-mesh dust filter on the fan to cover the hole, which can prevent dust particles with a diameter of about 300 microns.
This mesh is typically used to keep larger airborne particles such as dust, pollen, and other impurities from entering the fan area while ensuring good airflow and cooling.
In addition, we also recommend that you clean the dust filter regularly and avoid using it in a dusty environment.
Q3: Can it be used together with a protective case?
A3: The perforated design behind the clear case is precisely designed to maximize air flow, thereby effectively dissipating the heat inside the device.
If Using with other protective cases and silicone cases, etc., may block these cooling vents, interfere with the thermal management of the device, and may reduce the performance of the device.
Therefore, we recommend that you use this clear case alone to get the best Excellent device protection and heat dissipation.
