11-in-1 Docking Station
FEATURES
- 11-in-1 USB-C Docking Station
- Single 8K or Dual 4K Display Docking Station
- Stability and Efficient Transfer
- Gigabit Ethernet and 3.5mm Mic/Audio
- 100W Max Power Delivery
- Wide Compatibility
SHIPPING






















FEATURES
Description
- 11-in-1 USB-C Docking Station: This USB-C Docking Station includes a Gigabit Ethernet network, fast 100W USB-C PD charging, 8K HDMI, 8K DisplayPort, 2 USB 3.0 ports, 1 USB 2.0 port, SD and TF card readers, and 3.5mm Mic/Audio ports.

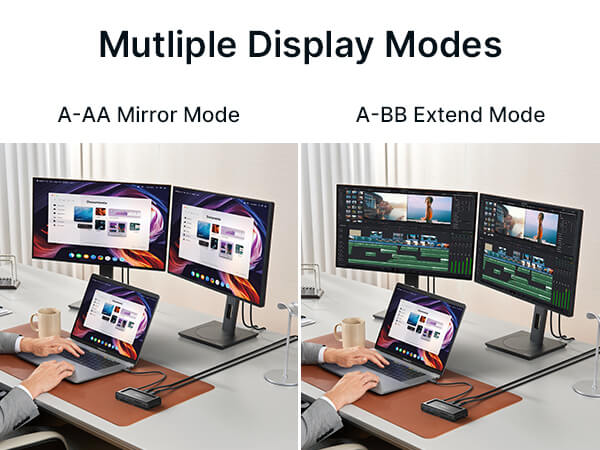

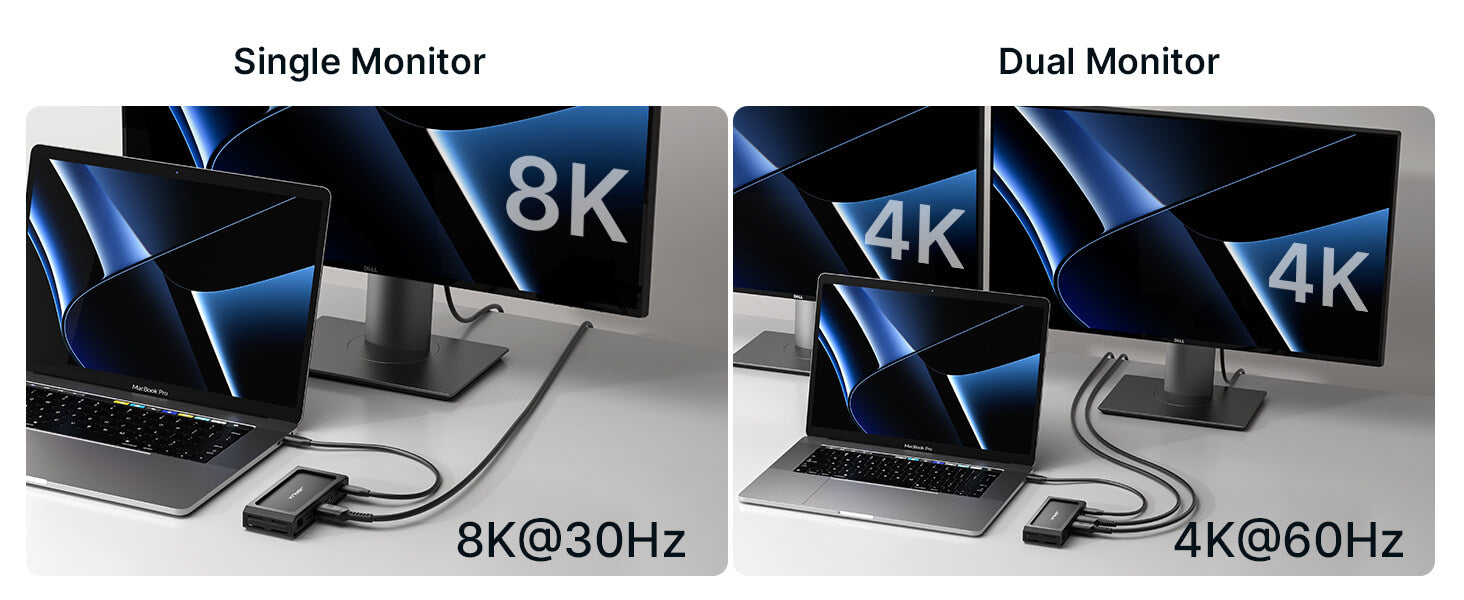

- Single 8K or Dual 4K Display Docking Station: Connect a single 8K or dual 4K display using DP and HDMI outputs.
- Stability and Efficient Transfer: Enjoy fast data transfer with 2 USB 3.0 ports (5Gbps) and 1 USB 2.0 port (480Mbps). The built-in SD and TF card slots support simultaneous card reading at up to 5Gbps.

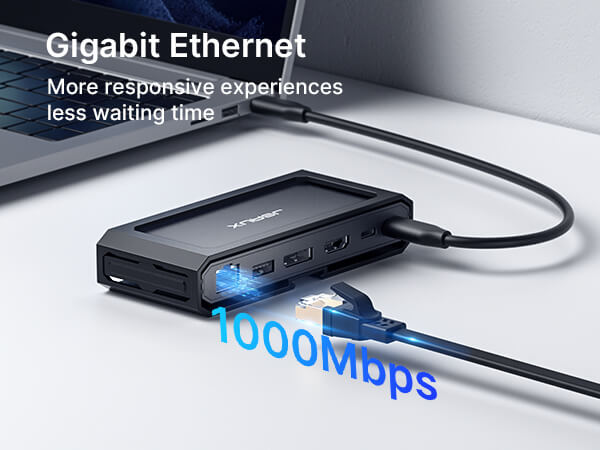

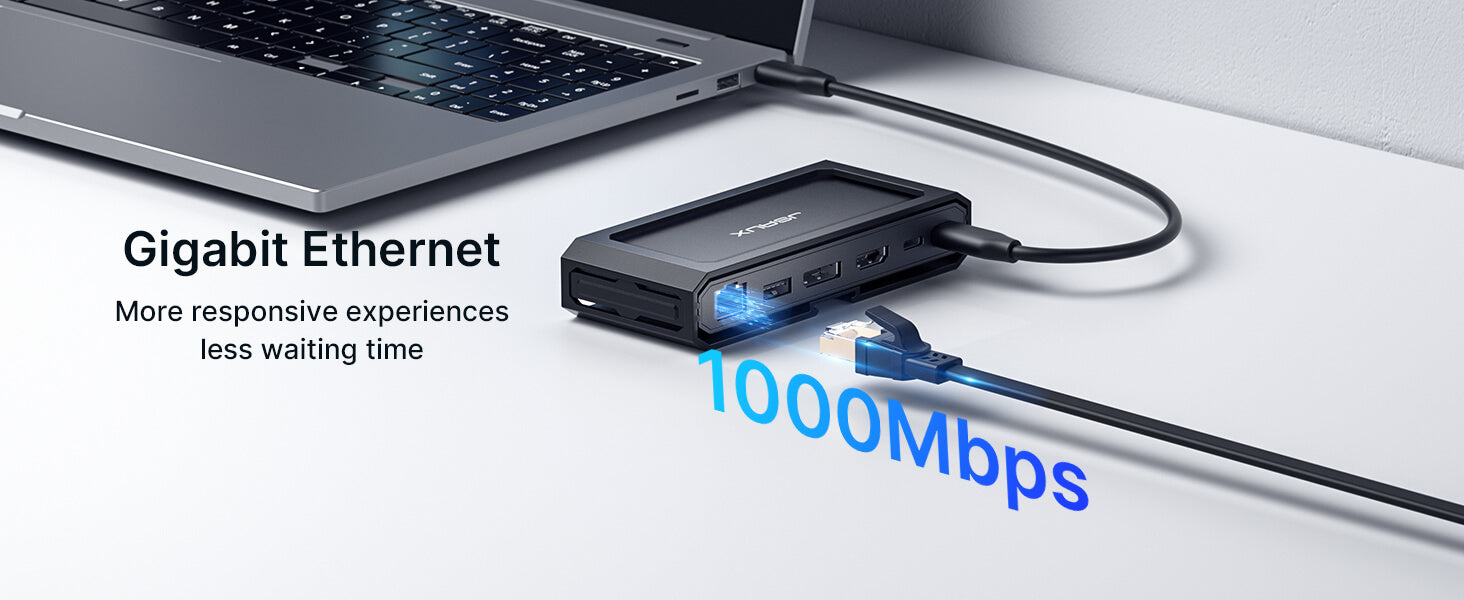

- Gigabit Ethernet and 3.5mm Mic/Audio: Support Ethernet 1000Mbps connection, making downloading and running games faster and more stable. Plug and Play, No more additional drivers are required.

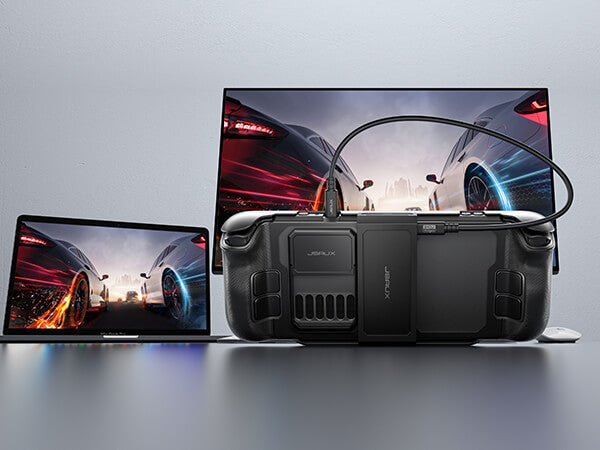

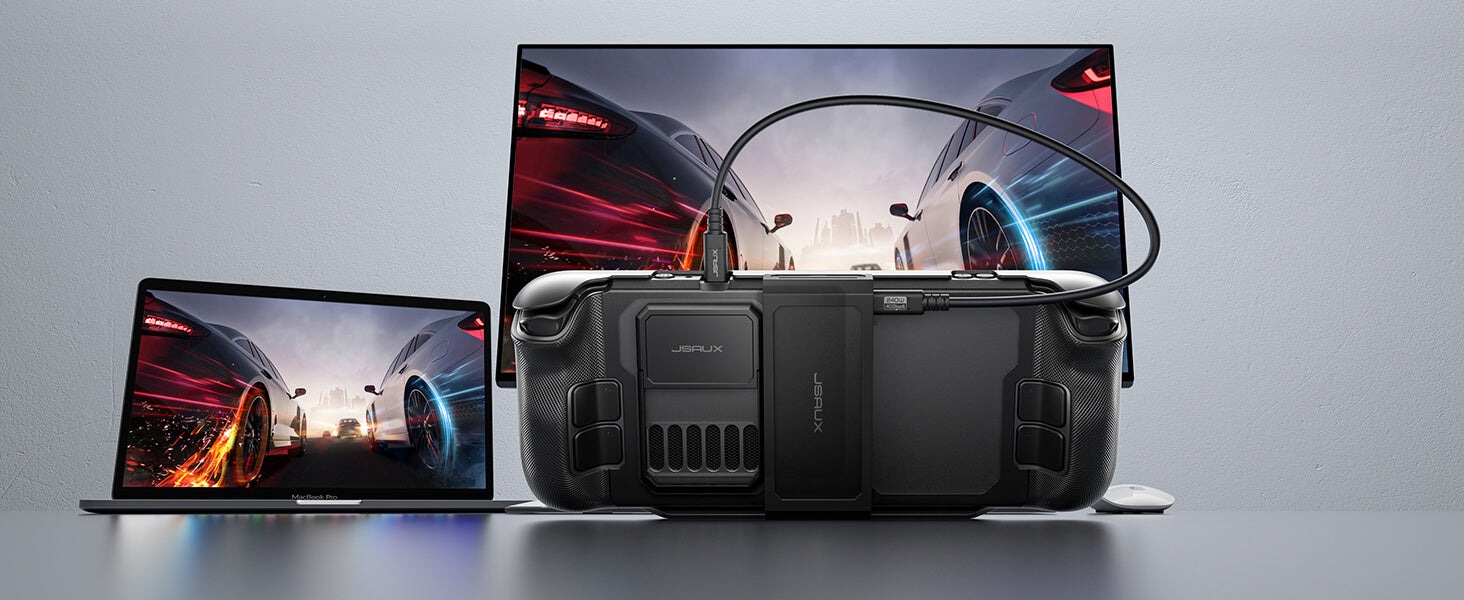

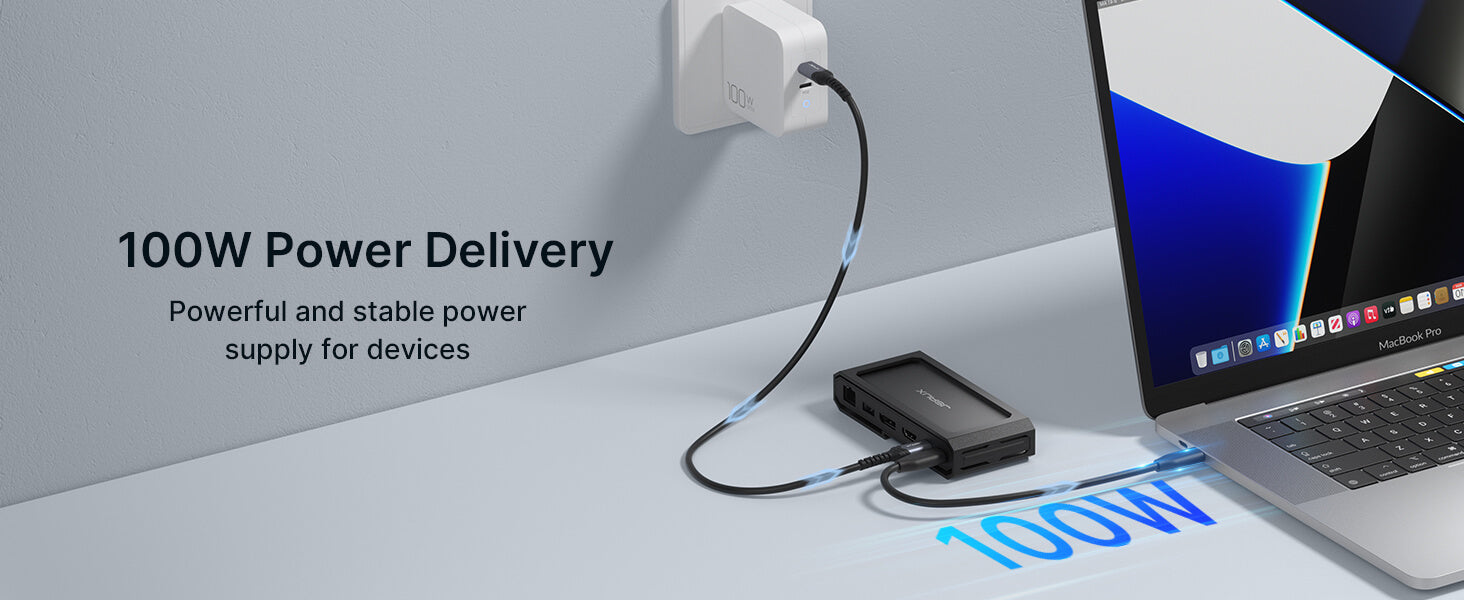

- 100W Max Power Delivery: Charge your tablets, notebooks, Steam Deck, and ROG Ally at full speed.(NOTE:📢NOT compatible with AYA NEO console. Cannot guarantee 30W Turbo Mode for Rog Ally. It may require a charger over 65W, based on current information. Ultimately, enabling 30W Turbo Mode depends on the specific charger used.)
- Wide Compatibility: This docking station works with most systems and supports Windows/Android/macOS/Linux systems, ensuring compatibility with a wide range of devices.
Note📢:
- If you face operational issues, ensure your USB-C cable is correctly connected to the 'IN-USB-C' port. We recommend using the provided USB-C cable for best results. If you choose to use an alternative USB-C cable, please ensure that it adheres to the USB-C 3.2 standard.
- The included USB-C cable may vary from the one shown in the picture, but it won't affect its normal functionality.
- It is recommended to use a 100W charger to better experience ROG Ally’s high-performance 30W mode.
SPECS
SPECS
120*61.8*23.5mm
about 130g
Aluminum alloy+ABS&PC
Compatible with ARC, CEC audio back transmission function
USB-C Female ×1,USB-C PD ×1
USB-A3.0 ×2,USB-A2.0 ×1,HDMI ×1,DP ×1,RJ45×1,SD×1,TF×1,3.5mm Female Audio×1
USB-C Female: compatible with 3.2 standard and thunderbolt 3 interfaces
PD: Supports PD 100W charge
HDMI: Supports up to 8K@30Hz,backward compatible with 4K@120Hz, 4K@60Hz, 2K@144Hz,2K@120Hz
DP: Supports up to 8K@30Hz, backward compatible with 4K@120Hz,
4K@60Hz, 2K@165Hz, 2K@144Hz, 2K@120Hz
USB-A: USB3.0 standard, Supports 5Gbps, 5V/1A power supply
USB-A: USB2.0 standard, Supports 480Mbps, 5V/1A power supply
RJ45: Adaptive 10/100/1000M Ethernet
SD/TF: Maximum read and write speed 5Gbps, support simultaneous read and write
3.5mm Female Audio:3.5mm Mic/Audio(2 in 1) port
USB-C to USB-C cable: USB 3.2 Standard, Supports 10Gbps Max transmission speed, supports 100W charge,5A electricity
Notes: HDMI+DP simultaneous output supports 4K@60Hz output
Includes HB1101*1, a USB-C to USB-C 3.2 cable.
SHIPPING
SHIPPING & RETURN
Please read our shipping tips carefully before you place your order
- All orders above $50 are free shipping.
- Orders under $49.99 will be charged $6.99 as shipping cost.
(Note: The above shipping policy does not apply to FlipGo. Please refer to the FlipGo product page for specific shipping details.)
Please Note:
- JSAUX GAMING provides fast and efficient delivery services for global customers.(But unable to deliver products at military addresses (APO/FPO) and some islands.)
- The current processing time for all orders takes 2-4 days(Orders are not processed on weekends).
- Order delivery time will be at 7-12 business days(pre-sale items excluded).
- International duties & taxes may apply and are not calculated at checkout.
- Shipping time for pre-sale products is subject to the instructions on the product page.
Due to the requirements of logistics service providers:
- In order to get your order ready as soon as possible and avoid shipping issues, make sure to introduce an accurate postal address including your exact house number and any other info that may be necessary for the delivery company.
-
For mainland China & Taiwan China: For mainland China customers, please use Tmall to place your order. Hong Kong, Macao, please include your name, ID number and shipping address in traditional Chinese.
- For Saudi Arabia: Free shipping over $50 is not available. A shipping fee of $14.99 (VAT included) applies.
- Due to logistical reasons, we are temporarily not providing order services to the following countries and regions: Afghanistan, Albania, Algeria, Andorra, Angola, Anguilla, Argentina, Armenia, Aruba, Azerbaijan, Bahrain, Bangladesh, Barbados, Belarus, Bermuda, Bhutan, Bosnia & Herzegovina, Brazil, British Virgin Islands, Brunei, Burkina Faso, Burundi,Bolivia, Cambodia, Cameroon, Cayman Islands, Central African Republic, China, Christmas Island, Costa Rica, Côte d'Ivoire, Djibouti, Congo - Brazzaville, Congo - Kinshasa, Egypt, El Salvador, Ecuador,Falkland Islands, Faroe Islands,French Polynesia, Gabon, Gambia, Georgia, Ghana, Gibraltar, Greenland, Guadeloupe, Guatemala, Guernsey, Guinea, Honduras,Iceland, Indonesia, Israel, Jamaica, Jordan,Jersey, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Lebanon, Lesotho, Liberia, Liechtenstein, Maldives, Mauritius, Martinique, Moldova, Monaco,Mongolia, Montenegro, Myanmar (Burma), Namibia, Nauru, New Caledonia, Nicaragua, Niger, Nigeria, Norfolk Island, North Macedonia, Norway,Oman, Pakistan, Paraguay, Rwanda, San Marino, Senegal, Serbia, Seychelles, Solomon Islands, South Sudan, Sri Lanka, Sudan, Tajikistan, Togo, Tonga, Tunisia, Turkmenistan, Tuvalu, Uganda, Ukraine, Uruguay, India, Uzbekistan, Vanuatu, Vatican City, Some regions in the United States(including Puerto Rico, Guam, US Virgin Islands, Northern Mariana Islands, American Samoa, and military bases like APO, FPO, and DPO).
15-Days RETURN:
Our return & exchange policy will be active for 15 days from the very same day you receive your product(s) at home. For more information, please visit our Shipping Policy section.
FAQ
Q1. JSAUX Dock: Why & how different from other 11-in-1 models?

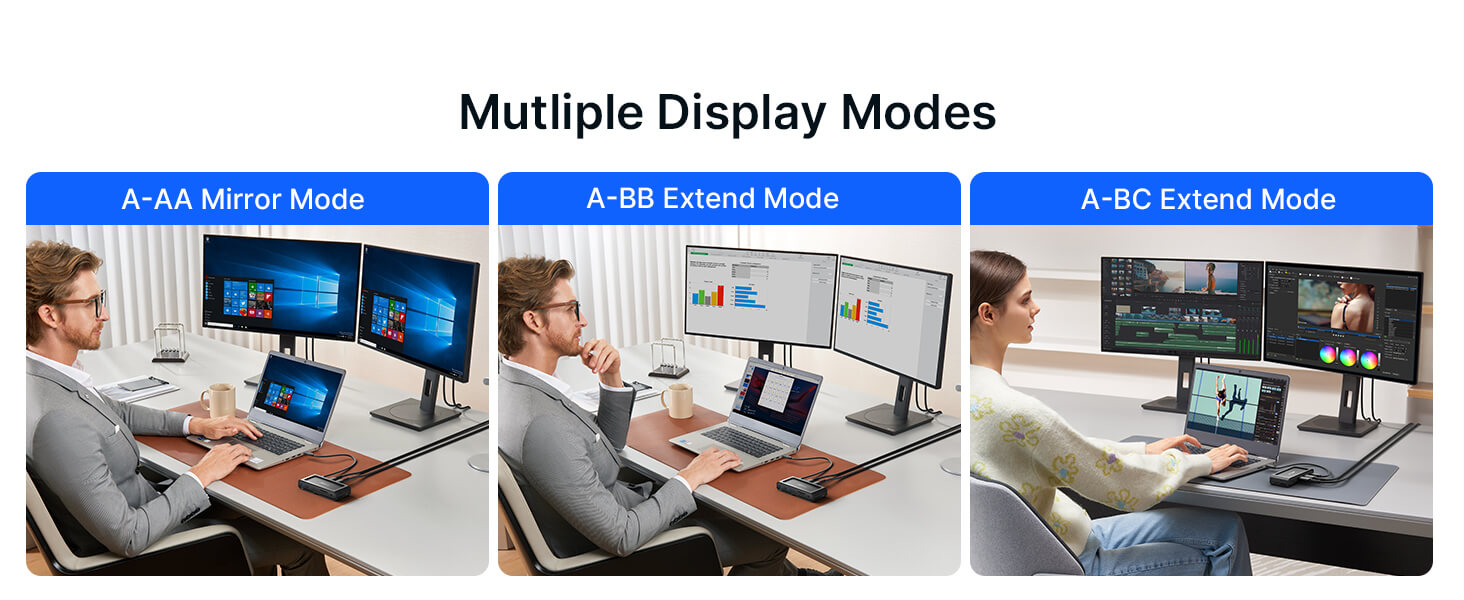

A1. Our products feature a DisplayPort as well as HDMI ports that support up to 8K resolution (backward compatible with 4K@165Hz/4K@144Hz/4K@120Hz) when used individually. In dual display mode, they can simultaneously output up to 4K@60Hz.
Q2. How does it work ?
A2. Laptops often feature just a USB-C port, necessitating the use of a multi-functional docking station. By connecting the docking station to the USB-C port, you can access a wide array of connections including Ethernet, HDMI, DisplayPort, and USB-A.
Q3. Can USB-C PD connect to other USB-C devices and transfer data?
A3. The USB-C PD interface is solely designed for device charging purposes and does not support data transfer. It is not intended to connect to other USB-C devices.
Q4. Is it capable of simultaneously reading TF and SD cards?
A4. Yes, but iPad Pro2020 interface restrictions, only single card read and write.
Q5. No video output detected when HDMI and DP ports are connected. What might be the missing component or issue?
A5. Troubleshooting steps:
1.Check proper HDMI cable connection to the display or PC's HDMI port.
2.Ensure the use of an HDMI cable version 2.1 or higher.
3.Confirm connection of the PD charger to the product.
